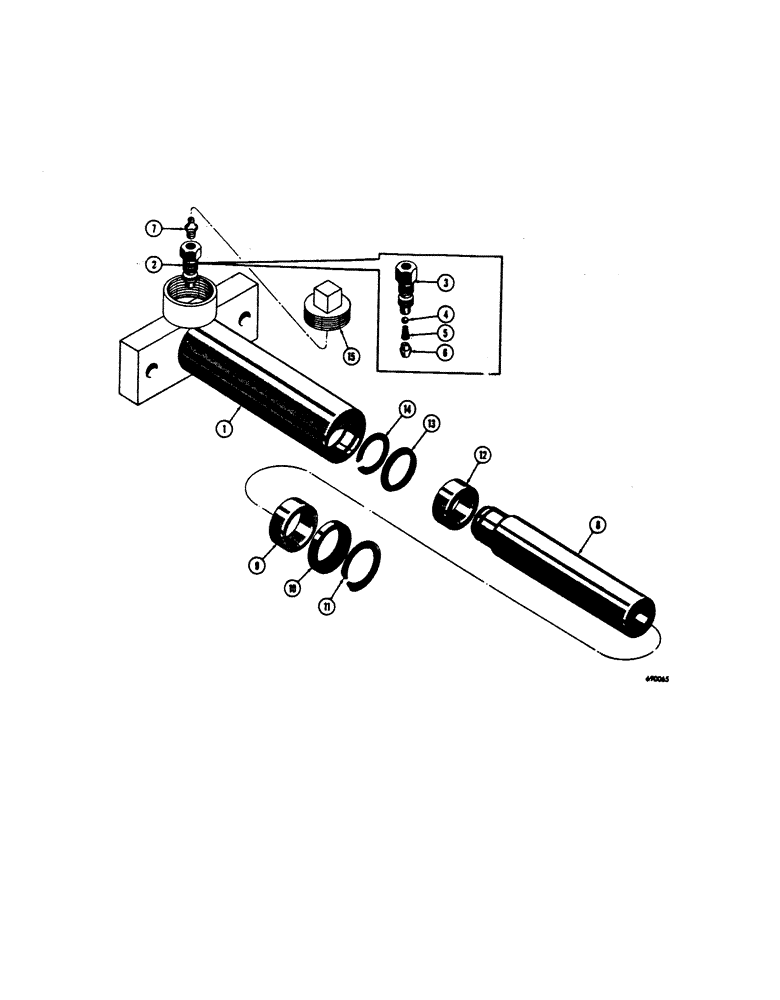

Запчасти Case 450 (190) - TRACK ADJUSTER, BEFORE TRACTOR SN. 3050801 (04) - UNDERCARRIAGE

D35504

ADJUSTER

HYDRAULIC ADJUSTER - track (Used before tractor sn. 3044216), Includes: Ref.#1 - 15

2шт.

D48596

ADJUSTER

HYDRAULIC ADJUSTER - track (Used on tractor sn. 3044216 thru 3050801), Includes: Ref.#1 - 15

2шт.

1

D35507

CYLINDER

TUBE - cylinder (D35504 adjuster only)

1шт.

Tubes without snap ring groove must use D95144 wiper.

1шт.

1

D48595

TUBE ASSY.

TUBE - cylinder (D48596 adjuster only)

1шт.

Tubes without snap ring groove must use D95144 wiper.

1шт.

2

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - complete, Includes: Ref.#3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

BALL - check

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - check ball

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - body

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT)

1шт.

8

D35506

PISTON

1шт.

9

D35503

RING,50.7mm ID x 60.35mm OD x 22.23mm Thk

- rider

1шт.

10

D37290

WINDSHIELD WIPER

WIPER - piston, use with D37291 snap ring (When stock is exhausted, use D95144 wiper)

1шт.

10

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston

1шт.

Tubes without snap ring groove must use D95144 wiper.

1шт.

11

D37291

SNAP RING,#250, 2.673", Int

- retaining, D37290 wiper

1шт.

12

D37289

BUSHING,44.35mm ID x 53.92mm OD x 19.05mm L

BEARING - backup

1шт.

13

D37288

PACKING

- "U" cup (When stock is exhausted, use D95382 packing)

1шт.

13

D95382

SEAL,44.27mm ID x 54.05mm OD x 10.69mm Thk

PACKING - "U" cup

1шт.

14

A27085

RING

SNAP RING - piston

1шт.

15

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

pipe Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.
