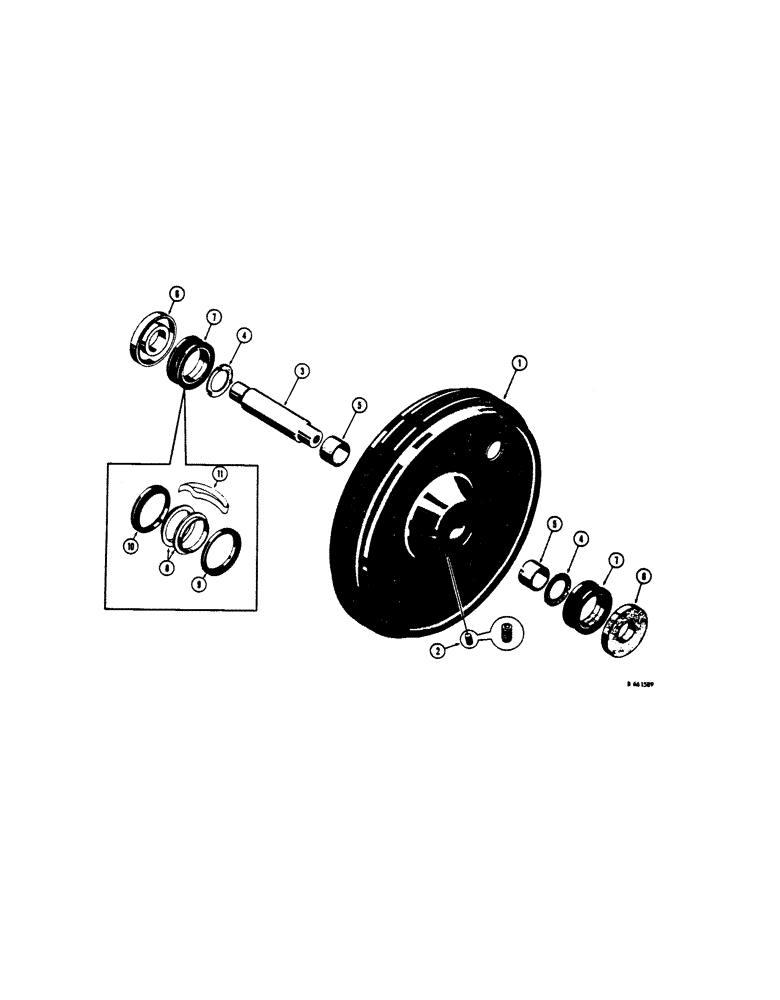

Запчасти Case 450 (190[1]) - IDLER WHEEL BEFORE TRACTOR SN. 3050801 (04) - UNDERCARRIAGE

D35271

FRONT IDLER

IDLER WHEEL - complete, Includes: Ref. 1 - 11

1шт.

1

D35272

FRONT IDLER

HUB - idler wheel, idler wheel, Serial Range: -3050801

1шт.

2

221-841

PLUG

- pipe, hex socket, idler wheel, Serial Range: -3050801

1шт.

3

D35270

SHAFT

- idler wheel, idler wheel, Serial Range: -3050801

1шт.

4

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

COLLAR - thrust, idler whee, Serial Range: -3050801

2шт.

5

D35242

BUSHING

- split (For service, use D46396 bushing), idler wheel, Serial Range: -3050801

2шт.

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split, idler wheel, Serial Range: -3050801

2шт.

6

D35265

COLLAR

BUSHING - thrust, idler wheel, Serial Range: -3050801

2шт.

7

D35267

SEAL

- face, idler wheel, Includes: Ref. 8 - 11, Serial Range: -3050801

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal, idler wheel, Serial Range: -3050801

1шт.

D36826

SEAL KIT

KIT - field repair, idler wheel, Includes: Ref. 9 - 11, Serial Range: -3050801

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner, idler wheel, Serial Range: -3050801

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer, idler wheel, Serial Range: -3050801

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - plastic, idler wheel, Serial Range: -3050801

1шт.
