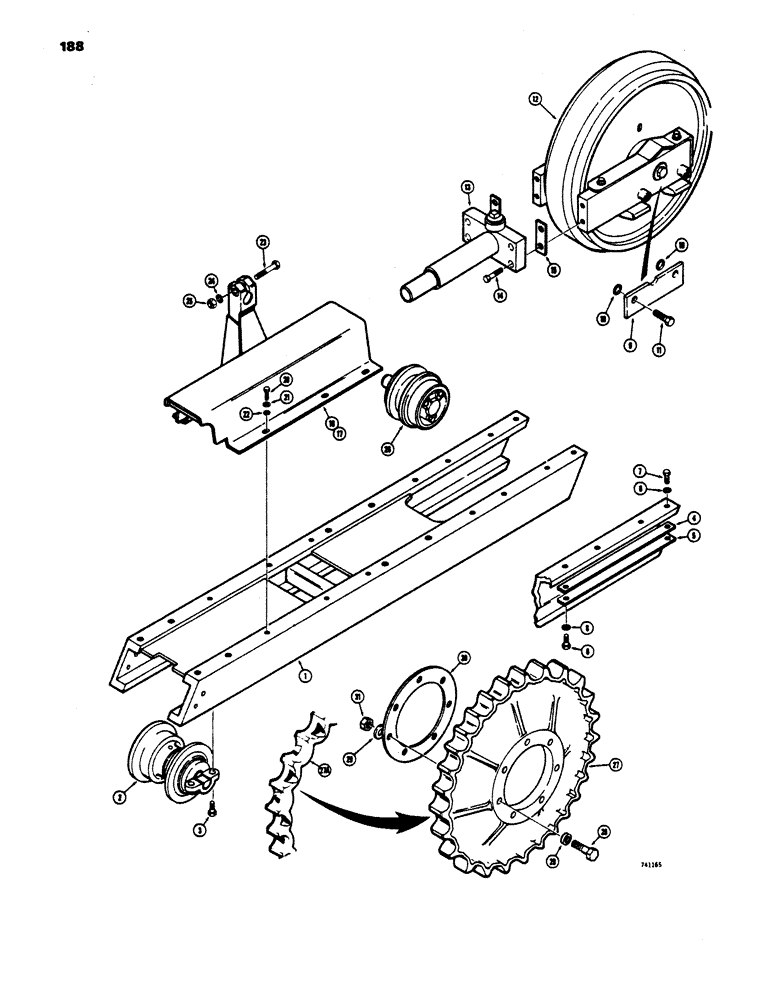

Запчасти Case 450 (188) - TRACK FRAME AND RECOIL SYSTEM, USED TRACTOR SN. 3050801 AND AFTER (04) - UNDERCARRIAGE

1

R29682

FRAME

- track (Drawbar and Loader Models)

2шт.

1

R29684

FRAME - track, L.H. (Angle Tilt Dozer Models)

1шт.

1

R29683

FRAME - track, R.H. (Angle Tilt Dozer Models)

1шт.

1

NLS

NO LONGER SERVICED

FRAME - track, L.H. (Angle Dozer Models)

1шт.

1

R29686

FUNNEL

FRAME - track, R.H. (Angle Dozer Models)

1шт.

2

R24547

ROLLER

- track (Parts list Fig. 198)

10шт.

3

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

40шт.

4

R35793

SHIM,.059" Thk

Wear, Track channel (.053" to .065") .059" Thk

3шт.

5

D35276

PLATE

- wear, track channel

4шт.

6

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

7

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

9

D35269

PLATE

BAR - guide, idler

4шт.

10

D35268

SHIM,1/32" Thk

1шт.

11

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

12

R24625

FRONT IDLER

IDLER WHEEL - complete (Parts list Fig. 192)

2шт.

13

R29709

ADJUSTER

- track, hydraulic (Parts list Fig. 192)

2шт.

14

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

15

R29690

SHIM,.032" Thk

1шт.

16

R29582

HOUSING

- recoil and carrier roller bracket, includes spring (R.H.)

1шт.

17

R29581

HOUSING

- recoil and carrier roller bracket, includes spring (L.H.)

1шт.

20

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

12шт.

21

195-33

WASHER,1/2"

- flat () 1/2"

12шт.

22

92-8

LOCK WASHER,1/2"

12шт.

23

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

2шт.

26

D48684

ROLLER

TRACK CARRIER ROLLER - (Parts list Fig. 198)

2шт.

27

R24569

DRIVE SPROCKET

SPROCKET - drive, 50" gauge models (Standard Service)

2шт.

27

R24570

DRIVE SPROCKET

SPROCKET - drive, 52" gauge models (Standard Service)

2шт.

The 52" gauge models are 2.362" wide.

1шт.

27a

R32724

SPROCKET - drive, 52" gauge models (Service option) Relieved

2шт.

27a

R32765

SPROCKET - drive, 50" gauge models (Service option) Relieved

2шт.

28

R27954

BOLT

- special

14шт.

29

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

28шт.

30

D39530

SHIM,.03125" Thk

1шт.

31

280375

NUT,3/4"-10, GC

NUT - hex., lock (3/4" - 10 NC)

14шт.
