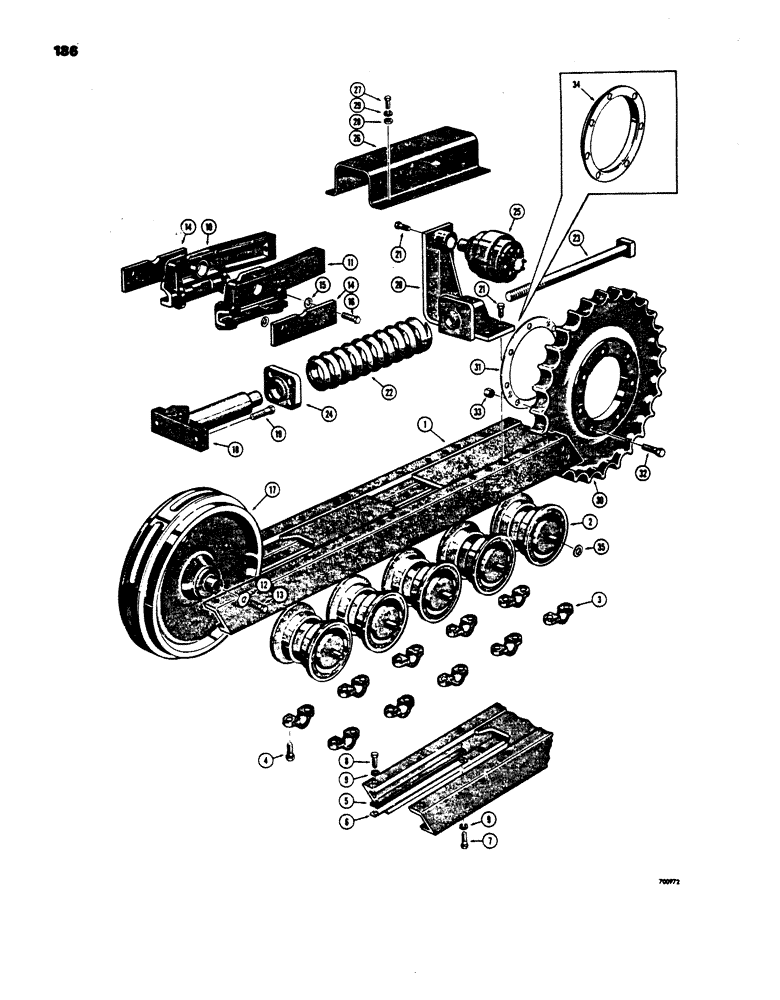

Запчасти Case 450 (186) - TRACK FRAME AND RECOIL SYSTEM, BEFORE TRACTOR SN. 3050801 (04) - UNDERCARRIAGE

1

D35362

FRAME - trace (Drawbar and Loader Models only)

2шт.

D35359

FRAME - track, L.H. (Combination Angle-Tilt Dozer Models only)

1шт.

D35358

FRAME - track, R.H. (Combination Angle-Tilt Dozer Models only)

1шт.

D35360

FRAME - track, L.H. (Angling Dozer Models only)

1шт.

D35361

FRAME - track, R.H. (Angling Dozer Models only)

1шт.

2

REF

INSTRUCTION

ROLLER - track, see Fig. 194 for track rollers

10шт.

3

D35346

SHIN

CAP - track roller shaft retainer

20шт.

4

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

40шт.

5

D35290

STRIP

SHIM - wear, track channel (.0149" thick)

4шт.

Ref. 5A, R35793 Shim .

1шт.

6

D35276

PLATE

- wear, track channel

4шт.

7

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

8

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

D35274

BRACKET

- idler, R.H., Serial Range: -3044216

2шт.

10

D48593

FRONT IDLER

BRACKET - idler, R.H., Start Serial: 3044216

2шт.

11

D35273

BRACKET

- idler, L.H., Serial Range: -3044216

2шт.

11

D48592

FRONT IDLER

BRACKET - idler, L.H., Start Serial: 3044216

1шт.

12

D21262

WASHER

- special

4шт.

13

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

4шт.

14

D35269

PLATE

- idler guide

4шт.

15

D35268

SHIM,1/32" Thk

1шт.

16

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

17

D35271

FRONT IDLER

IDLER WHEEL - complete (Parts list Fig. 190)

2шт.

18

REF

INSTRUCTION

ADJUSTER - track, hydraulic (See Fig.190 for proper adjuster)

2шт.

19

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

20

D35355

BRACKET

- mounting, track carrier roller (L.H.)

1шт.

D35354

BRACKET

- mounting, track carrier roller (R.H.)

1шт.

21

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

10шт.

22

D35277

SPRING

- recoil

2шт.

23

D38668

BOLT

STUD ASSEMBLY - recoil spring

2шт.

24

D47539

NUT

- tension adjusting

2шт.

25

REF

INSTRUCTION

TRACK CARRIER ROLLER - see Fig. 196 for rollers

2шт.

26

D35337

COVER

- recoil spring

2шт.

27

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

28

195-33

WASHER,1/2"

- flat () 1/2"

8шт.

29

92-8

LOCK WASHER,1/2"

8шт.

30

D43409

SPROCKET ASSY.

SPROCKET - drive, used on all models without backhoe before tractor serial no. 3039110)

2шт.

D43409 has 25 teeth, casting No.955845.

1шт.

30

D43349

DRIVE SPROCKET

SPROCKET - drive (Used on all backhoe models and all models with serial no. 3039110 to 3045010, and all 52" gauge Power Angle Tilt Dozers sn. 3045118 and after)

2шт.

D43349 has 27 teeth, casting No.955838.

1шт.

30

D50421

DRIVE SPROCKET

SPROCKET - drive (Used tractor sn. 3045010 and after on all models except Power Angle Tilt Dozers)

2шт.

D50421 has 27 teeth, casting (3" offset).

1шт.

30

R30687

SPROCKET - snow, 50" gauge

2шт.

30

R30688

SPROCKET - snow, 52" gauge

2шт.

31

D39530

SHIM,.03125" Thk

Drive sprocket .03125" Thk

1шт.

32

70119

BOLT,Hex, 3/4" - 16 x 2.75", Gr 5

- special

14шт.

33

232-46112

LOCK NUT,3/4"-16, GC

NUT - lock, hex. (3/4" - 16 NF)

14шт.

34

D45344

GUARD

- seal, final drive, Serial Range: -3045010

2шт.

35

D51644

SHIM

- .0359" thick, between rollers and track frame

1шт.
