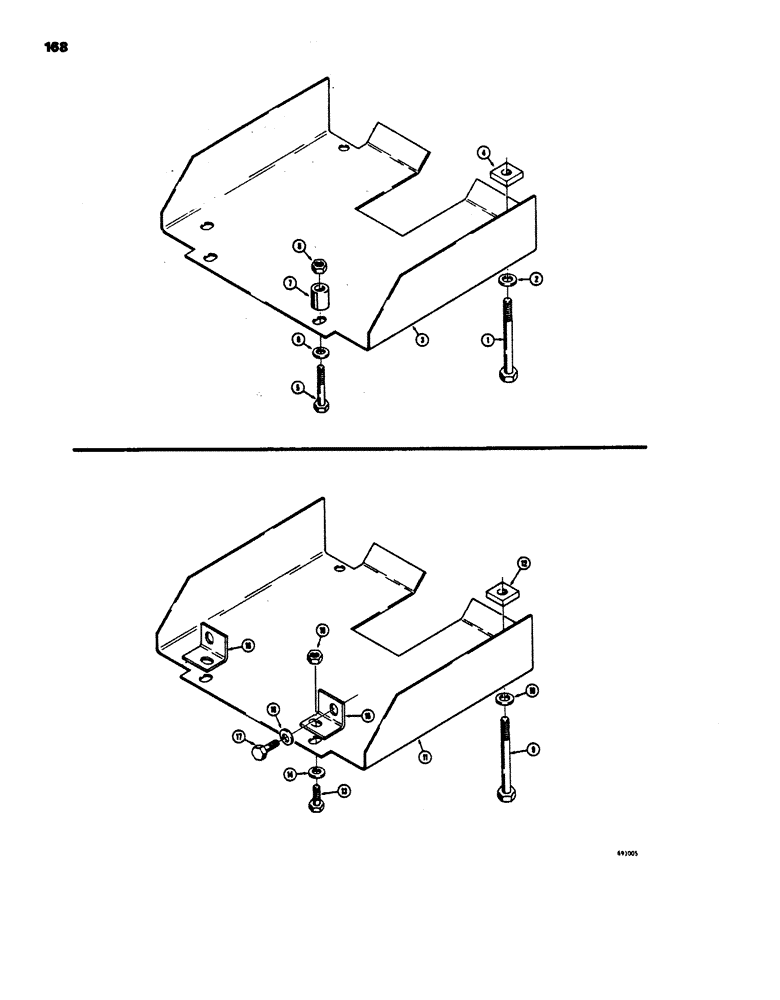

Запчасти Case 450 (168) - TRANSMISSION GUARDS, FOR MODELS W/O REAR MOUNTED EQUIPMENT (03) - TRANSMISSION

1

13-14128

BOLT,Hex, 7/8" - 9 x 8", Gr 5

HHCS - 7/8" - 9 NC X 8"

2шт.

2

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

3

D47851

GUARD

- transmission (Dozer and Drawbar models)

1шт.

3

D47852

GUARD - transmission (Loader models)

1шт.

4

D47858

SPACER

- guard, front

2шт.

5

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

6

195-45

WASHER,3/4"

2шт.

7

D47857

SPACER - guard, rear

2шт.

8

125-1012

NUT - hex. (3/4" - 10 NC)

2шт.

9

13-14128

BOLT,Hex, 7/8" - 9 x 8", Gr 5

HHCS - 7/8" - 9 NC x 8", for models w/winch or ripper

2шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, for models w/winch or ripper

2шт.

11

D47851

GUARD

- transmission (Dozer and Drawbar models), for models w/winch or ripper

1шт.

11

D47852

GUARD - transmission (Loader models), for models w/winch or ripper

1шт.

12

D47858

SPACER

- guard, for models w/winch or ripper

2шт.

13

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

For models w/winch or ripper Hex, 3/4"-10 x 1 3/4", G5

2шт.

14

195-45

WASHER,3/4"

For models w/winch or ripper 3/4"

4шт.

15

D47853

BRACKET - guard, R.H., for models w/winch or ripper

1шт.

15

D47855

BRACKET - guard, R.H. (Winch with 5/8" dia. bolt), for models w/ripper

1шт.

15

D35997

BRACKET - guard, R.H. (Winch with 3/4" dia. bolt), for models w/ripper

1шт.

16

D47854

BRACKET - guard, L.H. (Ripper), for models w/ winch

1шт.

16

D47856

BRACKET - guard, L.H. (Winch with 5/8" dia. bolt), for models w/ripper

1шт.

16

R35998

BRACKET - guard, L.H. (Winch with 3/4" dia. bolt), for models w/ripper

1шт.

17

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

(Ripper only), for models w/winch Hex, 3/4"-10 x 1 3/4", G5

2шт.

17

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Winch - if used), for models w/ripper Hex, 5/8"-11 x 2 1/2", G5

2шт.

17

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

HHCS - 3/4" - 10 NC x 2-1/2" (Winch - if used), for models w/ripper

2шт.

18

195-45

WASHER,3/4"

For models w/winch or ripper 3/4"

2шт.

18

195-2072

WASHER,11/16" x 1 1/8" x 109"

- plain (5/8"), for models w/winch or ripper

2шт.

19

25-102

WASHER

NUT - hex. (3/4" - 10 NC), for models w/winch or ripper

2шт.
