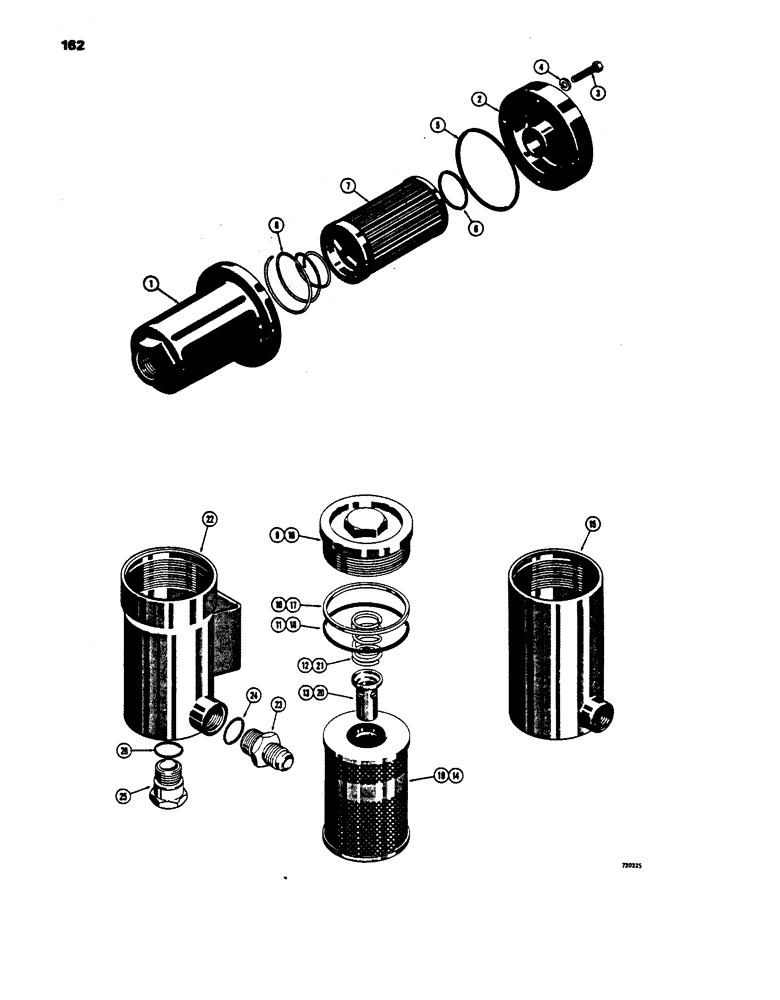

Запчасти Case 450 (162) - TRANSMISSION OIL FILTERS, D35144 TRANSMISSION OIL FILTER (SUCTION LINE) (03) - TRANSMISSION

D35144

FILTER

FILTER - transmission oil, suction line, Includes: Ref.#1 - 8

1шт.

1

D37033

HOUSING

- filter

1шт.

2

D37034

HEAD

- filter

1шт.

3

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

SEAL - "O"ring, housing

1шт.

6

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - "O"ring, element

1шт.

7

D37035

FILTER, ELEMENT

ELEMENT - filter

1шт.

8

D37036

SPRING

- element

1шт.

D35153

FILTER

- transmission oil, pressure line When stock is exhausted, order (1) D46132 filter, (1) 218-5063 connector and (1) 218-5094 adapter for service, Includes: Ref.#9 - 15, Serial Range: -3040701

1шт.

9

D31214

CAP

- filter, D35153 transmission oil filter (pressure line), Serial Range: -3040701

1шт.

10

D36095

BACK-UP RING

- backup, D35153 transmission oil filter (pressure line), Serial Range: -3040701

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, D35153 transmission oil filter (pressure line), Serial Range: -3040701

1шт.

12

D31212

SPRING

- retaining, D35153 transmission oil filter (pressure line), Serial Range: -3040701

1шт.

13

D37207

VALVE

- relief, D35153 transmission oil filter (pressure line), Serial Range: -3040701

1шт.

14

D31213

FILTER, ENGINE OIL

ELEMENT - filter (Used in D35153 filter only), D35153 transmission oil filter (pressure line), Serial Range: -3040701

1шт.

15

D49023

BODY

- filter, D35153 transmission oil filter (pressure line), Serial Range: -3040701

1шт.

D46132

FILTER

- transmission oil, pressure line as production item, also used as service replacement on prior models), as production, Includes: Ref.#16 - 22, Start Serial: 3040701

1шт.

16

D31214

CAP

- filter

1шт.

A62871

ELEMENT

KIT _ filter, D46132 transmission oil filter (perssure line) as production, Start Serial: 3040701

1шт.

17

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

D46132 Transmission oil filter (Pressure line) as production, Start Serial: 3040701

1шт.

18

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, D46132 transmission oil filter (perssure line) as production, Start Serial: 3040701

1шт.

19

NSS

NOT SOLD SEPARAT

ELEMENT - filter (Order A62871 element kit for service), D46132 transmission oil filter (perssure line) uas production, Start Serial: 3040701

1шт.

20

D37207

VALVE

- relief, D46132 transmission oil filter (perssure line) as production, Start Serial: 3040701

1шт.

21

D31212

SPRING

- retaining, D46132 transmission oil filter (perssure line) usas production, Start Serial: 3040701

1шт.

22

D46130

HOUSING

BODY - filter, D46132 transmission oil filter (perssure lineas production, Start Serial: 3040701

1шт.

23

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male (Used with D46132 filter only), D46132 transmission oil filter (perssure line) u as production, Includes: Ref.#24, Start Serial: 3040701

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D46132 transmission oil filter (perssure line) as production, Start Serial: 3040701

1шт.

25

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

ADAPTER - straight, male (Used with D46132 filter before tractor serial no. 3040701 only), D46132 transmission oil filter (perssure line) as production, Includes: Ref.#26, Start Serial: 3040701

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D46132 transmission oil filter (perssure line) as production, Start Serial: 3040701

1шт.
