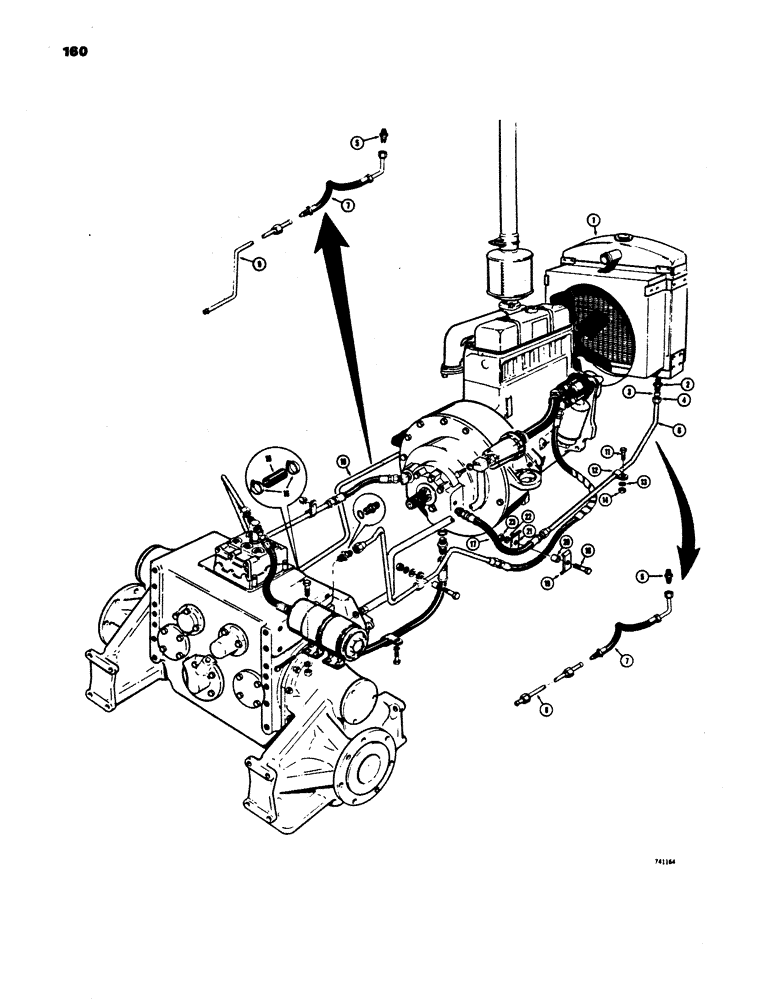

Запчасти Case 450 (160) - BASIC TRACTOR HYDRAULICS, COOLING SYSTEM (03) - TRANSMISSION

1

REF

INSTRUCTION

RADIATOR - cooling (See Figure 76 thru 79A for radiators)

1шт.

D35131

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - straight (D35146 and D35152 tubes only), Includes: Ref.#2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR - straight

1шт.

3

D37363

SLEEVE

- compression

1шт.

4

D37364

NUT

- compression

1шт.

5

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - straight, male (R24230 hose only)

2шт.

6

D35146

TUBE

- converter to oil cooling, R.H. (Early production)

1шт.

7

R24230

HOSE

- at oil cooler, 13" long (Late production)

1шт.

8

R24231

TUBE

- converter to oil cooler, R.H. (Late production)

1шт.

9

R24232

TUBE,0.625" OD

- oil cooler to sump, L.H. (Late production)

1шт.

10

D35152

TUBE

- oil cooler to sump, L.H. (Early production)

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

12

49885

CLAMP

- tube (2 L.H. and 1 R.H.)

3шт.

13

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

3шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

15

R24723

HOSE

- oil cooler to sump (5/8" I.D. x 3" long)

1шт.

16

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

17

D38533

HOSE

- torque converter to oil cooler (11-3/4" long)

1шт.

18

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

19

D33316

CLAMP

- hose

2шт.

20

D33554

BUSHING

SPACER - clamp

1шт.

21

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.
