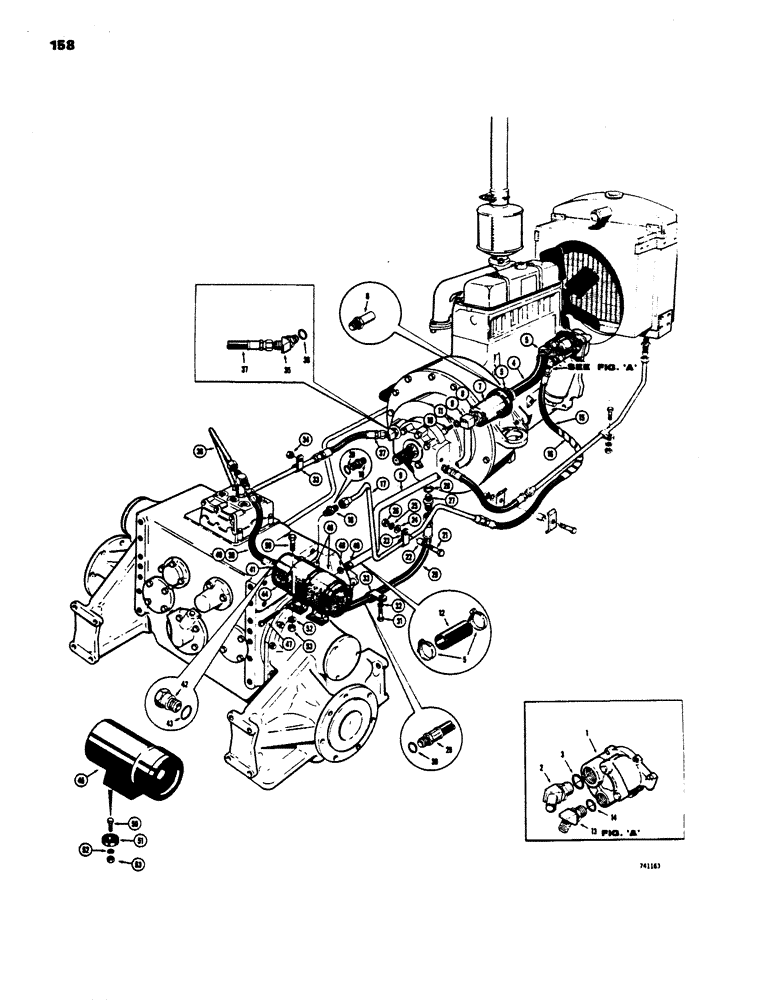

Запчасти Case 450 (158) - BASIC TRACTOR HYDRAULICS, PUMP TO TORQUE CONVERTER AND (03) - TRANSMISSION

1

D35016

PUMP

- torque converter (Parts list Fig. 156)

1шт.

2

D35138

ELBOW

- special, 45 degree, Includes: Ref.#3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D33365

HOSE

-, Serial Range: pump-filter

1шт.

5

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

6

D35137

LINE

CONNECTOR - hose stem

1шт.

7

D35144

FILTER

FILTER - hydraulic oil (Parts list Fig.162)

1шт.

8

221-239

SUN VISOR,Nipple, 1" NPT x 2"

NIPPLE - pipe (1" NPT x 2")

1шт.

9

D35149

TUBE

- suction, transmission

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces 13-616) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

12

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction, transmission (Rear) 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

Ref. 12, Use S118465X and cut to length.

1шт.

13

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref 14 45º, 7/8"-14 x 1 1/16"-12, O-Ring

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

15

D35136

HOSE

- pump to filter (38" long)

1шт.

16

R12586

TAPE

WRAP - hose

1шт.

17

D35151

TUBE

-, Serial Range: pump-filter

1шт.

18

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight, male (Used on D35153 filter)

1шт.

19

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male (Used on D46132 filter), Includes: Ref.#20

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

22

D34003

SPACER - clamp (Loader Models only)

1шт.

23

R26169

CLAMP - tube, vibration dampener

1шт.

24

95-8

WASHER,1/2"

flat 1/2"

1шт.

25

92-8

LOCK WASHER,1/2"

1шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, Includes: Ref.#28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

29

D38702

HOSE

- torque converter to sump (33" long), Includes: Ref.#30

1шт.

31

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

32

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

33

NLS

NO LONGER SERVICED

- hose

2шт.

34

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., lock (3/8" - 16 NC)

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

37

D38533

HOSE

- at torque converter, 11 3/4" long

1шт.

38

D38529

HOSE

TUBE - at transmission control valve

1шт.

39

D35133

HOSE

- filter to valve (17" long), Serial Range: -3040701

1шт.

40

D45617

HOSE

- filter to valve (17" long), Includes: Ref.#41, Start Serial: 3040701

1шт.

42

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

ADAPTER - straight (D46132 filter, Includes: Ref.#43, Serial Range: -3040701

1шт.

44

D35153

FILTER

- oil, before Sn. 3040701 (See Fig. 162 for service and parts)

1шт.

45

D46132

FILTER

- oil, Sn. 3040701 and after (Parts list Fig. 162)

1шт.

46

D31217

BRACKET

- D35153 oil filter

2шт.

47

75-544

RHMS - 5/16" - 18 NC x 2-3/4" (D35153 oil filter)

4шт.

48

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

49

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

50

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Without rubber mount Hex, 3/8"-16 x 1", G5, Full Thd

4-8шт.

50

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(With rubber mount) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

51

D40406

MOUNTING PARTS

MOUNT - rubber (D46132 filter)

4шт.

52

92-6

LOCK WASHER,3/8"

WASHER - lock, , if used 3/8"

4-8шт.

53

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , w/o D40406 mount (Replaces 25-106) 3/8"-16, G5

4шт.

53

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (3/8" - 16 NC) With D40406 mount

4шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

41

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

43

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.
