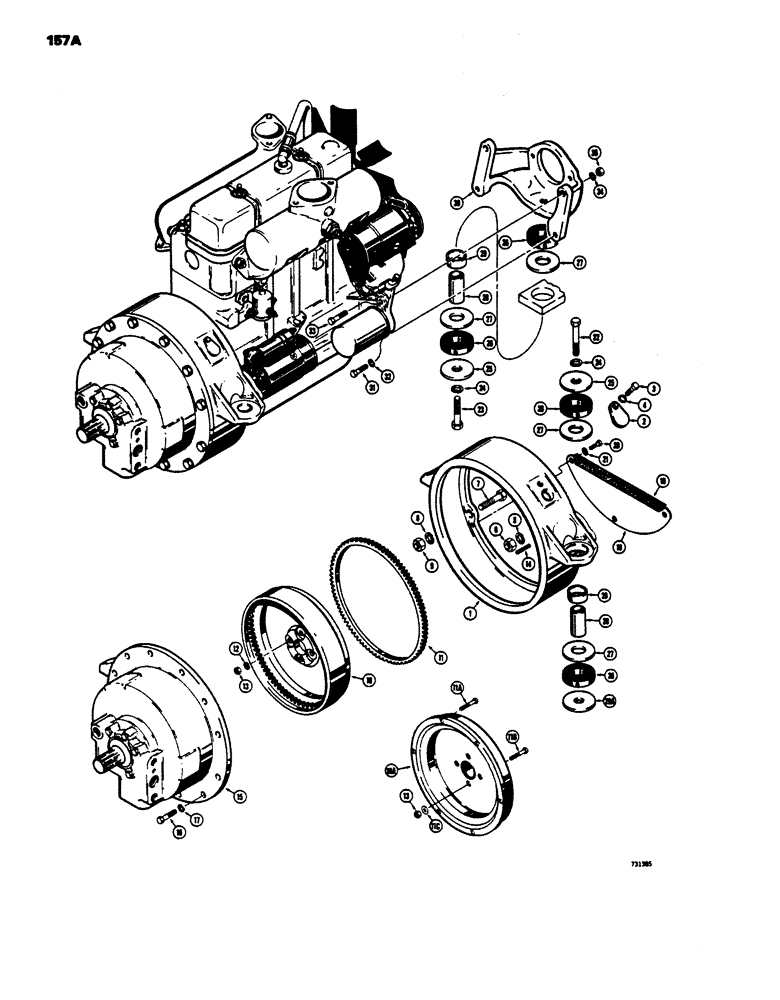

Запчасти Case 450 (157A) - ENGINE, FLYWHEEL AND TORQUE CONVERTER MOUNTING (03) - TRANSMISSION

1

A36596

HOUSING

- flywheel

1шт.

2

A29068

COVER

- timing hole

2шт.

3

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

25-1110

NUT,5/8"-18, G5

- hex., 5/8" - 18 NF

2шт.

7

A30129

BOLT

- ground body

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

25-1110

NUT,5/8"-18, G5

- hex., 5/8" - 18 NF

2шт.

A36594

FLYWHEEL

ASSEMBLY - D35012 and D45565 converters, Includes: Ref.#10 & 11

1шт.

10

NSS

NOT SOLD SEPARAT

FLYWHEEL

1шт.

11

G11710

GEAR

RING GEAR - flywheel

1шт.

11a

28-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 8

HHCS - 5/16" - 24 NF x 1-1/4" (A39123 flywheel only)

6шт.

11b

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

HHCS - 7/16" - 20 NF x 1-1/8" (A39123 flywheel only)

4шт.

11c

30013

PULLEY

WASHER - special (A39123 flywheel only)

4шт.

12

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

13

425-117

NUT,7/16"-20, G5

- hex., 7/16" - 20 NF (Replaces 25-117)

4шт.

14

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

15

D35012

X

TORQUE CONVERTER - Twin Disc 6-F-1108 Spec. N98328 (Used D52422 converter, Refs. 10A, 11A, 11B and 11C for service)

1шт.

15

D45565

CONVERTER

TORQUE CONVERTER - Twin Disc X-20954-E Spec. N60623 (Use D52422 converter, Refs. 10A, 11A, 11B and 11C for service)

1шт.

15

D52422

CONVERTER

TORQUE CONVERTER - Twin Disc C-209547-F Spec. N61896

1шт.

16

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

12шт.

17

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

12шт.

18

D36893

COVER

- flywheel housing, Includes: Ref.#19

1шт.

19

D36892

SEAL ASSY.

SEAL - dust

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

22

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

HHCS - 5/8" - 11 NC x 3-3/4" (Torque converter)

2шт.

23

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2" (Engine)

1шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

25

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- special (5/8")

3шт.

26

R31034

WASHER,22.23mm ID x 63.5mm OD x 12.7mm Thk

- special

6шт.

27

R31035

WASHER

- special

6шт.

28

R18586

SPACER

- mount

3шт.

29

D35010

BUSHING,22.23mm ID x 41.27mm OD x 19.05mm L

- rubber mount

3шт.

29a

D35232

SPACER

- torque converter mounting

2шт.

30

D35017

SUPPORT

- engine, front

1шт.

31

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

33

G49039

BOLT

- ground body (5/8" - 18 NF x 2-1/2") If used

2шт.

33

R33936

BOLT

- ground body (5/8" - 11 NC x 3") If used

2шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

35

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

35

25-1010

NUT,5/8"-11, G5

2шт.
