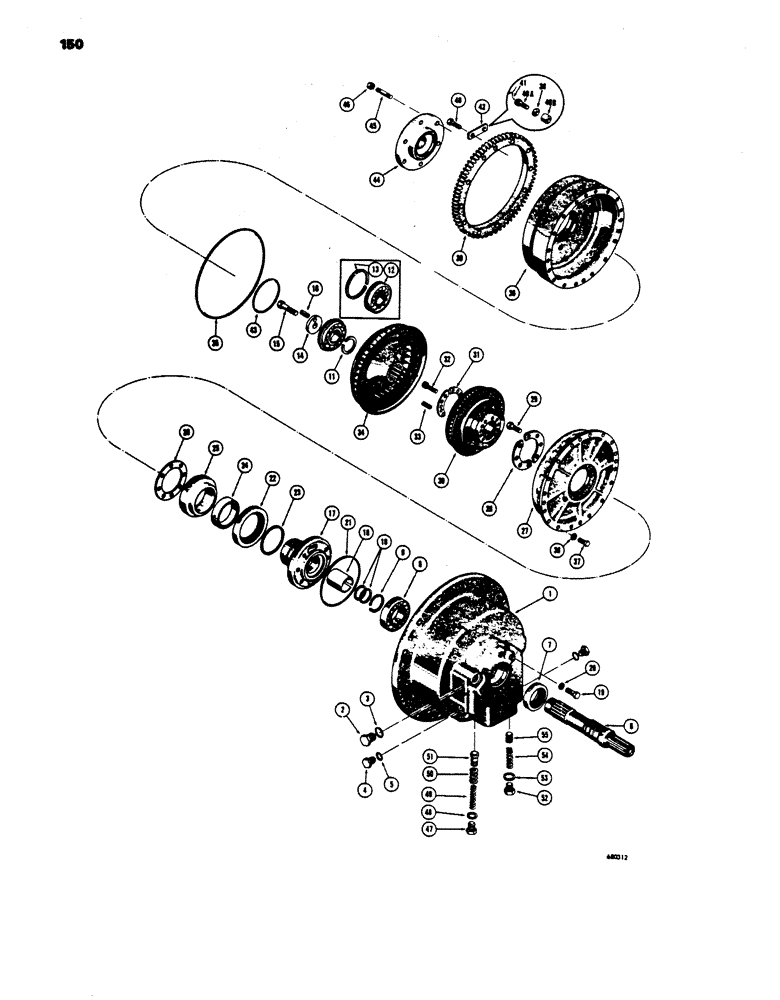

Запчасти Case 450 (150) - D35012 TORQUE CONVERTER, USED BEFORE TRACTOR SN 3039034 (03) - TRANSMISSION

D35012

X

TORQUE CONVERTER - complete. Twin Disc 6-F-1108 Spec. N98328 (See Fig. 157A for service), Includes: Ref.#1 - 55

1шт.

1

D37028

HOUSING

- torque converter

1шт.

2

214389

PLUG,3/4" - 16 ORB

Converter housing (Upper), Includes Ref. 3 Hex Hd, 3/4"-16 ORB

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

129998

PLUG,1/2" - 20 ORB

Converter housing (Lower), Incl. Ref. 5 Hex Hd, 1/2"-20 ORB

1шт.

5

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

6

D37026

SHAFT

- output

1шт.

7

D51517

SEAL,50.8mm ID x 76.2mm OD x 13.11mm Thk

- oil, output shaft

1шт.

8

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, output shaft (Rear)

1шт.

9

A27085

RING

SNAP RING - bearing retaining

1шт.

10

D37021

RING

- piston

2шт.

11

A27085

RING

SNAP RING - shaft retaining

1шт.

G13606

BALL BEARING

BEARING - ball, output shaft (Front), Includes: Ref.#12 & 13

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING

1шт.

13

NSS

NOT SOLD SEPARAT

SNAP RING

1шт.

14

D37015

PLATE

- shaft retaining

1шт.

15

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 20 NF x 1-3/4"

1шт.

16

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

D39288

GUIDE

CARRIER GUIDE AND SLEEVE ASSEMBLY - Includes: Ref.#17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - carrier

1шт.

18

D37027

SLEEVE

BUSHING - split

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

5шт.

20

D32117

COPPER WASHER

WASHER, COPPER, Special

5шт.

21

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

SEAL - "O"ring, carrier guide

1шт.

22

D37024

SEAL

- oil, carrier guide

1шт.

23

A36273

RING

- piston

1шт.

24

A36272

BUSHING,76.44mm ID x 81.08mm OD x 19.05mm L

BUSHING - bronze, steel backed

1шт.

25

D37009

CARRIER

- bushing

1шт.

26

NLS

NO LONGER SERVICED

- impeller hub

1шт.

27

D36825

IMPELLER

1шт.

28

D37017

PLATE

- clamp

2шт.

29

15-514

BOLT

HHCS - 5/16" - 18 NC x 7/8"

18шт.

30

D36835

WHEEL

GUIDE - converter

1шт.

31

A36278

PLATE

- clamp

2шт.

32

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - flange head (5/16" - 18 NC x 3/4")

6шт.

33

138-124

LOCK PIN,7/32" x 2 1/2", Slotted

PIN, LOCK, , Guide wheel carrier 7/32" x 2 1/2", Slotted

4шт.

34

D88739

TURBINE

(Replaces D36829)

1шт.

35

D37020

RING

GASKET - ring

1шт.

36

D37011

HOUSING

- rotating (When stock is exhausted, order 1-D47665 housing and 1-D52317 gear for service) See Fig. 154

1шт.

37

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

18шт.

38

A40877

WASHER

- special

30шт.

39

D37019

X

GEAR - ring,(For service use D45249 gear, 12 - D45250 bolts, 12 - A40877 washers, 12 - D45251 spacers and 6 - D45252 lock wires), Serial Range: -3038626

1шт.

39

D45249

RING

GEAR - ring (Tractor serial no., Serial Range: 3038626-3039034)

1шт.

40

15-520

SCREW,5/16" - 18 x 1 1/4"

HHCS - 5/16" - 18 NC x 1-1/4", Serial Range: -3038626

12шт.

40a

D45250

BOLT

BOLT - special (Tractor serial no., Serial Range: 3038626-3039034)

12шт.

40b

D45251

SPACER

- bolt (Tractor serial no., Serial Range: 3038626-3039034)

12шт.

41

D45252

LOCKING DEVICE

WIRE - lock (Tractor serial no., Serial Range: 3038626-3039034)

6шт.

42

D40751

PLATE

- locking, Serial Range: -3038626

6шт.

43

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, flywheel pilot

1шт.

44

D37016

FLYWHEEL

PILOT - flywheel

1шт.

45

D32067

STUD

- flywheel pilot retaining

6шт.

46

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

6шт.

47

D32013

PLUG

- relief valve

1шт.

48

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

- copper

1шт.

49

D32022

SPRING

- inner

1шт.

50

D32023

SPRING

- outer

1шт.

51

D37018

PISTON

- relief valve

1шт.

52

D32013

PLUG

- relief valve

1шт.

53

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

- copper

1шт.

54

D37012

SPRING

- relief valve

1шт.

55

D32014

PISTON

- relief valve

1шт.
