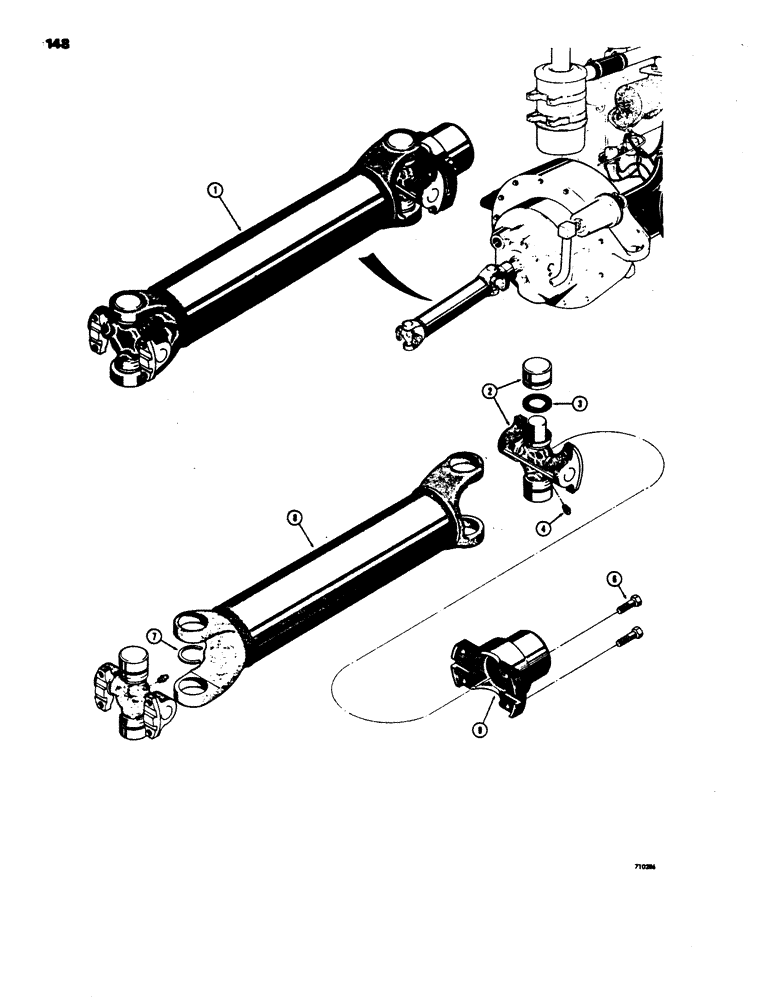

Запчасти Case 450 (148) - DRIVE SHAFT (03) - TRANSMISSION

1

D35013

SHAFT

DRIVE SHAFT AND UNIVERSAL ASSEMBLY - complete, Includes: P/N D37040 and Ref.#2 - 9

1шт.

D37040

U-JOINT SPIDER

SPIDER AND BEARING ASSEMBLY, Includes: Ref.#2 - 7

2шт.

2

NSS

NOT SOLD SEPARAT

SPIDER AND BEARINGS

1шт.

3

31719

WASHER

- cork

4шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" NPT)

1шт.

6

A14723

SCREW,Hex, 5/16" - 24 x 3/4", 8 Gr

BOLT - special

4шт.

7

D37041

RING

- snap

2шт.

8

D37037

SHAFT

TUBE - drive shaft

1шт.

9

D37038

YOKE

YOKE - drive shaft

1шт.
