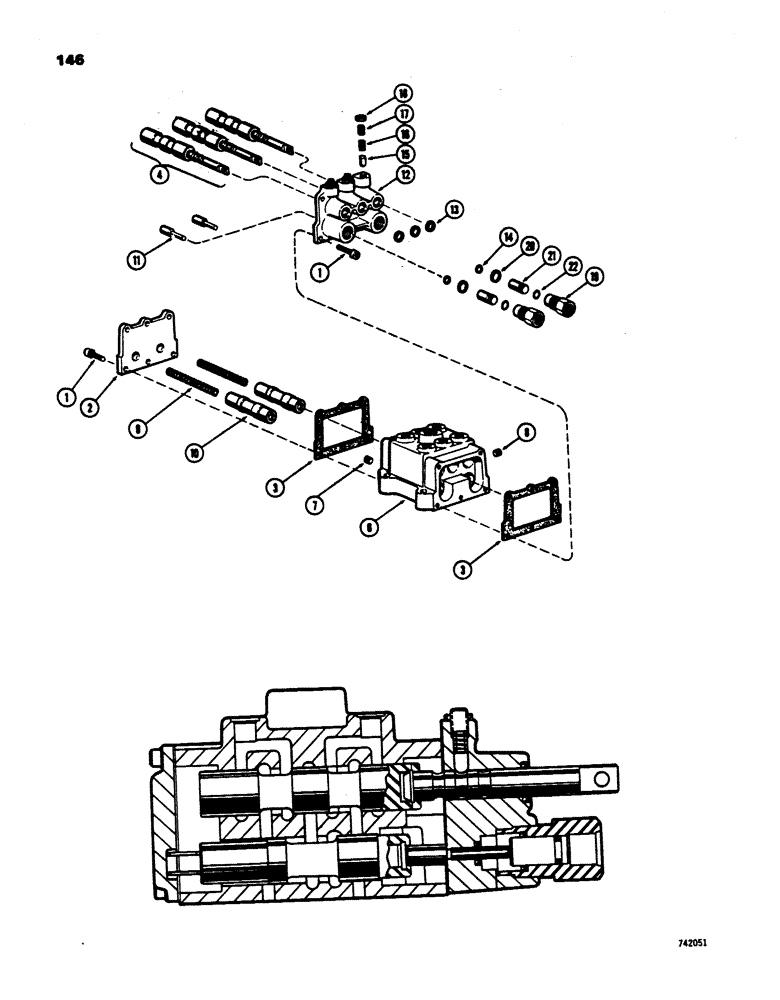

Запчасти Case 450 (146) - R20724 TRANSMISSION CONTROL VALVE (03) - TRANSMISSION

R20724

VALVE

ASSY. - control, transmission (3 spool), Includes: Ref.#1 - 11

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW AND EXTERNAL TOOTH WASHER - hex. socket, 1/4" x 2-5/8" NF

11шт.

2

R21384

COVER

- valve, rear

1шт.

3

35665

GASKET

- cover, front & rear

2шт.

4

71146

HOSE

ASSY. - valve shift

3шт.

6

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

7

221-42

X,Sltd, 1/4" NPT

PLUG - slotted, headless (1/4" NPT)

1шт.

8

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" NPT, hex., socket head

2шт.

9

71125

SPRING

- brake valve

2шт.

10

74196

KIT

SPOOL ASSY. - brake valve

2шт.

11

71141

ROD

- push, brake valve

2шт.

R13941

COVER ASSY

COVER ASSEMBLY - valve front, Includes: Ref.#12 - 22

1шт.

12

NSS

NOT SOLD SEPARAT

COVER - valve, Includes: Ref.#13 and 14

1шт.

13

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft

3шт.

14

51200266

SEAL

- shaft

2шт.

15

71120

VALVE

DETENT - valve shift

3шт.

16

71119

SPRING

- detent

3шт.

17

178-655

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - hex, socket (3/8" - 16 NC x 1/2")

3шт.

18

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

19

A50455

HOUSING

- A50457 brake valve piston (Use A50455 housing, A50457 piston and 71131 ring), Includes: Ref.#20

2шт.

20

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- housing

1шт.

21

A50457

PISTON

- brake valve (1-19/32" long) A50455 housing

2шт.

21

71129

X

PISTON - brake valve (15/16" long) 72989 housing, Use A50455 housing, A50457 piston and (2) 71131 rings

2шт.

22

51200265

RING

- quad (27/64 x 5/8 x 7/64")

2шт.
