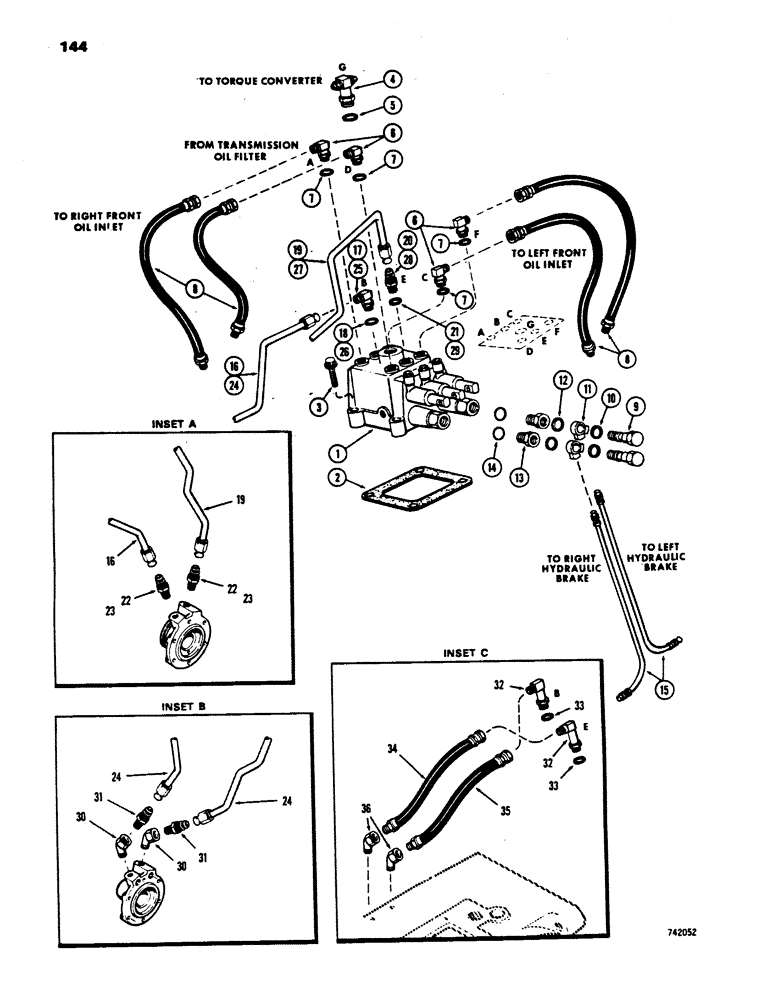

Запчасти Case 450 (144) - TRANSMISSION HYDRAULICS (03) - TRANSMISSION

1

R20724

VALVE

ASSEMBLY - control (Parts list Fig. 146)

1шт.

2

A50113

GASKET

- valve to transmission case

2шт.

3

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

SCREW - valve to housing (3/8" - 16 NC x 2", 12 pt. hd.)

4шт.

4

A50356

FITTING

TEE - adjustable, Includes: Ref.#5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring (3/4" x 1-1/8" x 3/32")

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref.#7

4шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

8

A50295

HYDRAULIC HOSE,6.35 mm ID x 419.00 mm, SAE100R1

- Valve, Front (19-1/2" long)

4шт.

9

A12864

BOLT

- connection, brake tube

2шт.

10

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer (39/64" I.D. x 13/16" O.D.)

2шт.

11

51200243

FITTING

- brake line hydraulic

2шт.

12

NLS

NO LONGER SERVICED

- fitting, inner (33/64" I.D. x 13/16" O.D.)

2шт.

13

72125

ADAPTER

- brake tube fitting bolt

2шт.

15

A50358

TUBE

- valve to L.H. & R.H. brake cylinders

2шт.

16

A54112

TUBE

- valve elbow to cover (Forward), used with A54106 and A50578 forward-reverse cover or used transmission sn. 2682396 and after inset A

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref.#18, used with A54106 and A50578 forward-reverse cover or used transmisson sn. 2682396 and after inset , Includes: Ref#18

1шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, used with A54106 and A50578 forward-reverse cover or used transmission s/n 2682396 and after inset A

1шт.

19

A50471

TUBE

- valve connector to cover (Reverse), used with A54106 and A50578 forward-reverse cover or used transmission sn. 2682396 and after inset A

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR, HYD, , Incl. Ref. #21, used with A54106 and A50578 forward-reverse cover or used transmissions, Incl Ref. #21 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, used with A54106 and A50578 forward-reverse cover or used transmission s/n 2682396 and after inset A

1шт.

22

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, male (A50578 cover - see Fig. 116), used with A54106 and A50578 forward-reverse cover or used transmission sn. 2682396 and after inset A

2шт.

23

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight, male (A54106 cover - see Fig. 116), used with A54106 and A50578 forward-reverse cover or used transmission S/N 2682396 and after inset A 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

24

A50470

TUBE

- valve elbow to cover (Forward), used with A50469 forward-reverse cover used transmission sn. 2661238 thru 2682397 inset B

1шт.

25

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, 90 degree, , Includes: Ref.#26, used with A50469 forward-reverse cover used transmission sn. 2661238 thru 2682397 inset B, Includes: Ref.#26

1шт.

26

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, used with A50469 forward-reverse cover used transmission s/n 2661238 thru 2682397 inset B

1шт.

27

A50471

TUBE

- valve connector to cover (Reverse), used with A50469 forward-reverse cover used transmission sn. 2661238 thru 2682397 inset B

1шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR, HYD, , Incl. Ref. #29, used with A50469 forward-reverse cover used transmission S/N., Incl. Ref. #29 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

29

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, used with A50469 forward-reverse cover used transmission s/n 2661238 thru 2682397 inset B

1шт.

30

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

45°, 1/4"-18 Female x 1/4"-18 Male, Valve tubes to cover, used with A50469 forward-reverse cover used transmission S/N 2661238 thru 2682397 inset B

2шт.

31

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, male (1/4" male pipe thread), used with A50469 forward-reverse cover used transmission sn. 2661238 thru 2682397 inset B

2шт.

32

R20739

FITTING

ELBOW - 90 degree, adjustable, , Includes: Ref.#33, used with A50280 transmission housing or used before transmission sn. 2661238 inset C, Includes: Ref.#33

2шт.

33

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, used with A50280 transmission housing or used before transmission s/n 2661238 inset C

1шт.

34

A50294

HYDRAULIC HOSE,14.25"

- Valve to housing, LH, Used with A50280 transmission housing or used before transmission S/N 2661238 inset C 14.25"

1шт.

35

A50295

HYDRAULIC HOSE,6.35 mm ID x 419.00 mm, SAE100R1

- Valve to housing, RH (19-1/2" long), Used with A50280 transmission housing or used before transmission S/N 2661238 inset C

1шт.

36

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

45°, 1/4"-18 Female x 1/4"-18 Male, Hose to housing, used with A50280 transmission housing or used before transmission S/N 2661238 inset C

2шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring (5/8" x 13/16" x 1/16")

2шт.
