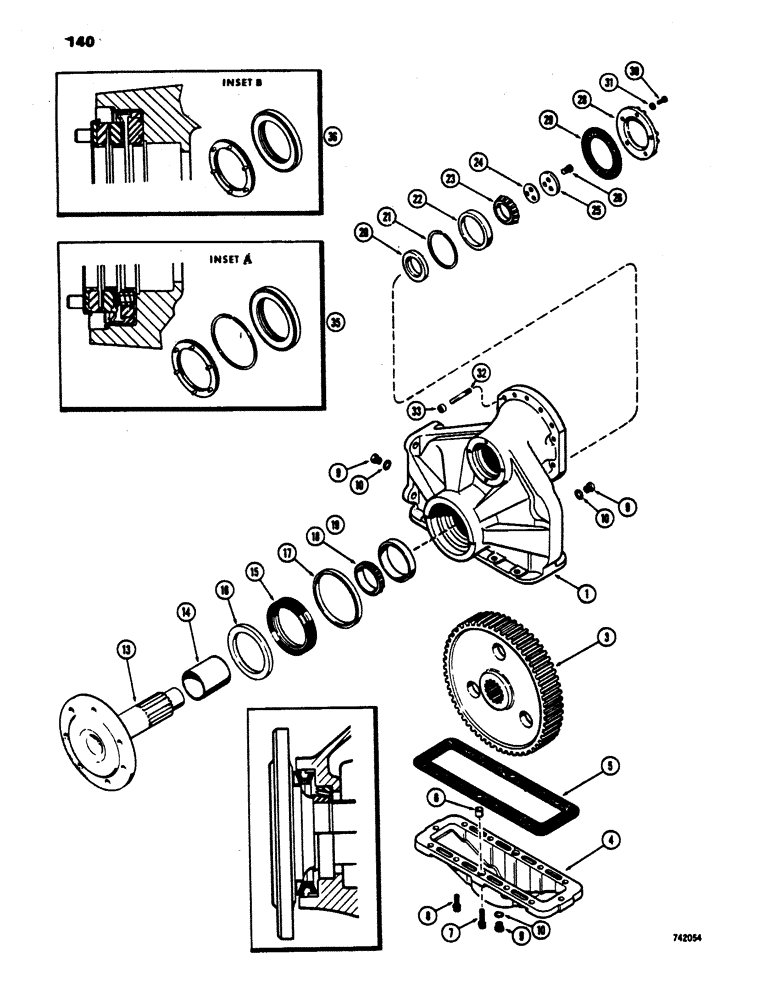

Запчасти Case 450 (140) - TRANSMISSION FINAL DRIVE AND HOUSING, 50" GAUGE MODELS, USED BEFORE LOADER TRANSMISSION S.N. 2682386 (03) - TRANSMISSION

A50396

DRIVE ASSY. - right hand (Loader), Includes: Ref.#1 - 31

1шт.

A50401

NO LONGER SERVICED

DRIVE ASSY. - right hand (Dozer), Includes: Ref.#1 - 31

1шт.

A50397

DRIVE ASSY.

- left hand (Loader), Includes: Ref.#1 - 31

1шт.

A50400

NO LONGER SERVICED

DRIVE ASSY. - left hand (Dozer), Includes: Ref.#1 - 31

1шт.

1

A50398

FUNNEL

HOUSING - right hand (Loader)

1шт.

1

A50402

HOUSING

- left hand (Dozer)

1шт.

1

A50399

HOUSING

- left hand (Loader)

1шт.

1

A50403

HOUSING

- right hand (Dozer)

1шт.

3

A50214

GEAR

- bull, final drive

1шт.

4

A50405

COVER

- drop, final drive

1шт.

5

A50218

GASKET

- drop cover

1шт.

6

A50011

SLEEVE

- dowel, drop cover locating

2шт.

7

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

SCREW - cover to hsg. (1/2 x 1-1/2" N.C., 12 pt. hd.)

2шт.

8

166-86

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

SCREW - cover to hsg. (1/2 x 1-1/4" N.C., 12 pt. hd.)

10шт.

9

A50014

PLUG

- drain and fill

3шт.

10

A58608

GASKET

- fill & drain plug (Replaces A27927)

3шт.

13

A50484

SHAFT

- output (Replaces A50121)

1шт.

14

A50213

SPACER

SLEEVE - output shaft

1шт.

A50555

SEAL

KIT - final drive shaft (See Insets for old kits), Includes: Ref.#15 & 16

1шт.

15

A50552

SEAL

- face, final drive shaft

1шт.

16

A50553

SEAL

SEAT - face seal

1шт.

17

A50554

SPACER

-, Serial Range: seal-housing

1шт.

18

A50100

ROLLER BEARING,82.55mm ID x 25.4mm W

CONE - bearing, outer (3-1/4" I.D.)

1шт.

19

A27146

BEARING, CUP,125.41mm OD x 19.84mm W

CUP - bearing, outer (4-15/16" O.D.)

1шт.

20

A50215

RING

SPACER - output shaft

1шт.

21

A30504

RING

- snap, bearing retaining

1шт.

22

A50179

BEARING CUP

CUP - bearing, inner (3-13/16" O.D.)

1шт.

23

G10414

ROLLER BEARING

CONE - bearing, outer (2-17/64" I.D.)

1шт.

24

G101997

SHIM,.005" Thk

Bearing (Replaces A50216) .005" Thk

1шт.

24

G101998

SHIM,.007" Thk

Bearing (Replaces A50224) .007" Thk

1шт.

25

A50217

PLATE

- retainer

1шт.

26

A31107

BOLT

- plate to shaft (1/2" x 1-1/4" N.C. hex.)

3шт.

28

A50140

COVER

- output shaft

1шт.

Ref. 29 is A50139 gasket cover

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

31

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

5шт.

32

A50021

STUD

- final drive (1/2" - 13 NC x 3")

30шт.

33

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

30шт.

35

A50545

KIT

SEAL KIT - See Inset A (Order A50555)

2шт.

36

A50244

SEAL

KIT - See Inset B (Order A50555)

2шт.
