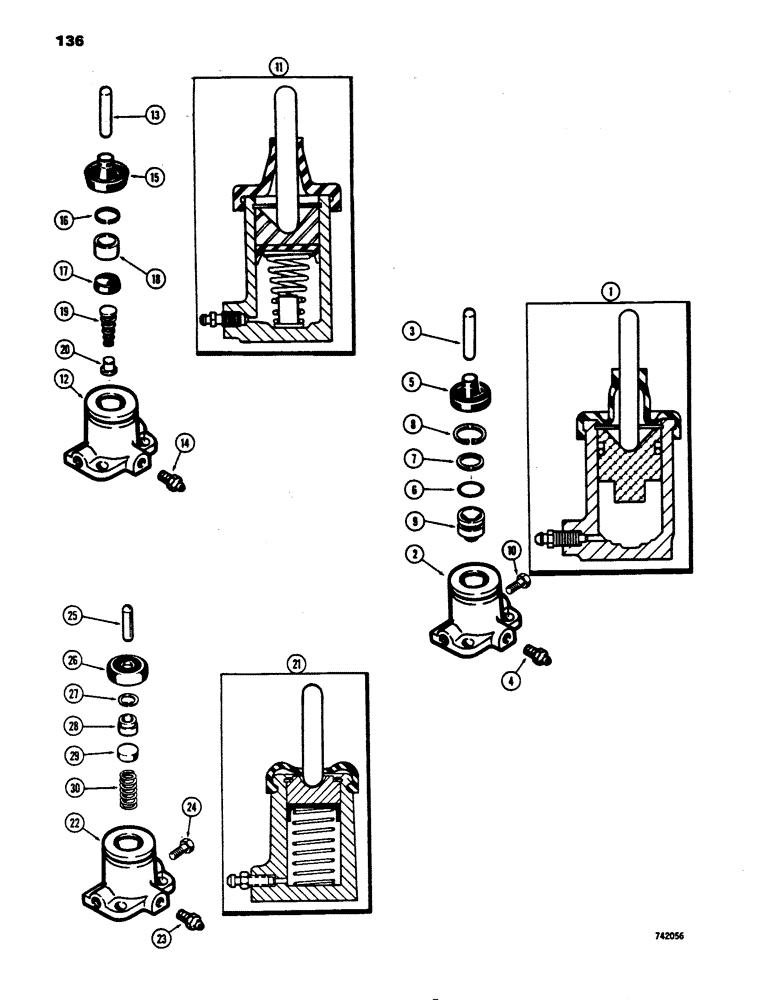

Запчасти Case 450 (136) - TRANSMISSION HYDRAULIC BRAKE CYLINDER, A50557 CYLINDER, USED TRANSMISSION S.N. 2681428 AND AFTER (03) - TRANSMISSION

1

A50557

CYLINDER

ASSEMBLY - Includes: Ref.#2 - 9

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - brake cylinder

1шт.

3

A41489

ROD

- push, brake cylinder

1шт.

4

A41491

BLEEDER,1/4" - 28 x 23.37mm

- bleeder, cylinder

1шт.

A42875

SEAL

KIT - brake cylinder repair, Includes: Ref.#5 - 7

1шт.

5

A41490

BOOT

- dust, push rod

1шт.

6

NSS

NOT SOLD SEPARAT

"O"RING - piston

1шт.

7

NSS

NOT SOLD SEPARAT

RING - piston

1шт.

8

A30975

SNAP RING,1.188", Int, #118

piston 1.188", Int, #118

1шт.

9

A42874

PISTON

- cylinder

1шт.

10

222-1062

PLUG,7/16"-24, Inv Fl

- hex, head (7/16" - 14 NC)

2шт.

11

A50485

SCREW

CYLINDER ASSEMBLY - Use A50557 cylinder, Includes: Ref.#12 - 20, use loader transmission SN. 2644199 thru 2681429, used dozer and drawbar transmission SN. 2644575 thru 2681429

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - cylinder, use loader transmission SN. 2644199 thru 2681429, used dozer and drawbar transmission SN. 2644575 thru 2681429

1шт.

13

A41489

ROD

- push, brake cylinder, use loader transmission SN. 2644199 thru 2681429, used dozer and drawbar transmission SN. 2644575 thru 2681429

1шт.

14

A41491

BLEEDER,1/4" - 28 x 23.37mm

- bleeder, cylinder, use loader transmission SN. 2644199 thru 2681429, used dozer and drawbar transmission SN. 2644575 thru 2681429

1шт.

A41506

CYLINDER

REPAIR KIT - brake cylinder, Includes: Ref.#15 - 20, use loader transmission SN. 2644199 thru 2681429, used dozer and drawbar transmission SN. 2644575 thru 2681429

1шт.

15

A41490

BOOT

- dust, cylinder, use loader transmission SN. 2644199 thru 2681429, used dozer and drawbar transmission SN. 2644575 thru 2681429

1шт.

16

A36277

SNAP RING,1.125", Int, #112

piston, use loader transmission SN. 2644199 thru 2681429, used dozer and drawbar transmission SN. 2644575 thru 2681429 1.125", Int, #112

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - cylinder, brake, use loader transmission SN. 2644199 thru 2681429, used dozer and drawbar transmission SN. 2644575 thru 2681429

1шт.

18

NSS

NOT SOLD SEPARAT

CUP - piston, use loader transmission SN. 2644199 thru 2681429, used dozer and drawbar transmission SN. 2644575 thru 2681429

1шт.

19

A42243

SPRING ASSEMBLY - pressure, with retainer, use loader transmission SN. 2644199 thru 2681429, used dozer and drawbar transmission SN. 2644575 thru 2681429

1шт.

20

NSS

NOT SOLD SEPARAT

STOP - spring, use loader transmission SN. 2644199 thru 2681429, used dozer and drawbar transmission SN. 2644575 thru 2681429

1шт.

21

A50120

CYLINDER

ASSEMBLY, A50120, Includes: Ref.# 22 - 30, used before loader transmission SN. 2644199, used before dozer and drawbar transmission SN. 2644575

2шт.

22

NSS

NOT SOLD SEPARAT

BODY - cylinder, A50120, used before loader transmission SN. 2644199, used before dozer and drawbar transmission SN. 2644575

1шт.

23

R15262

SCREW

- bleeder, A50120 cylinder, used before loader transmission SN. 2644199, used before dozer and drawbar transmission SN. 2644575

1шт.

24

222-1062

PLUG,7/16"-24, Inv Fl

- body, A50120 cylinder, used before loader transmission S/N 2644199, used before dozer and drawbar transmission S/N 2644575 7/16"-24, Inv Fl

1шт.

25

R15269

ROD

- push, A50120 cylinder, used before loader transmission SN. 2644199, used before dozer and drawbar transmission SN. 2644575

1шт.

26

R16239

BOOT

- dust, A50120 cylinder, used before loader transmission SN. 2644199, used before dozer and drawbar transmission SN. 2644575

1шт.

A50177

KIT

REPAIR KIT - brake cylinder, A50120, Includes: Ref.#27 - 30, used before loader transmission SN. 2644199, used before dozer and drawbar transmission SN. 2644575

1шт.

27

A50172

RING

- snap, piston retainer, A50120 cylinder, used before loader transmission SN. 2644199, used before dozer and drawbar transmission SN. 2644575

1шт.

28

A50174

PISTON - cylinder, A50120, used before loader transmission SN. 2644199, used before dozer and drawbar transmission SN. 2644575

1шт.

29

A50175

RETAINER

- spring, A50120 cylinder, Includes: Ref.#30, used before loader transmission SN. 2644199, used before dozer and drawbar transmission SN. 2644575

1шт.

30

A50173

COIL SPRING

SPRING - pressure cylinder, A50120, used before loader transmission SN. 2644199, used before dozer and drawbar transmission SN. 2644575

1шт.
