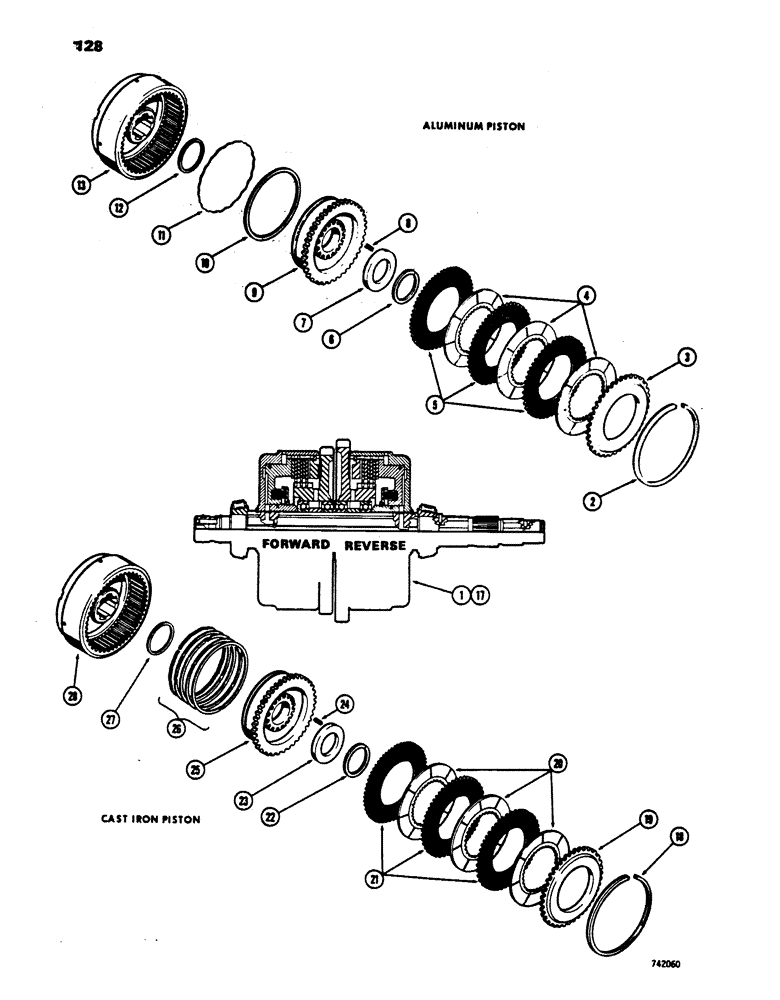

Запчасти Case 450 (128) - TRANSMISSION FORWARD AND REVERSE CLUTCHS, ALUMINUM PISTON STYLE (03) - TRANSMISSION

1

A50411

CLUTCH

ASSEMBLY - Includes: Ref.#2 - 13

2шт.

2

30785

RING

- snap, backing plate ret.

1шт.

3

A50030

PLATE

- clutch backing (Replaces A50522)

1шт.

4

A50029

PLATE

DISC - clutch (sintered) (internal teeth)

3шт.

5

A50028

PLATE

DISC - clutch (steel) (external teeth)

3шт.

6

A27233

RING

- snap, spring retainer

1шт.

7

R11016

RETAINER

- clutch spring

1шт.

8

R11015

SPRING

- clutch

18шт.

9

A50571

PISTON

- clutch (aluminum) (Replaces A50413)

1шт.

10

A50414

SEALING RING

RING - sealing, piston

1шт.

11

A50416

SPRING

EXPANDER - piston ring

1шт.

12

A50415

SEAL

RING - sealing, drum hub

1шт.

13

A50290

DRUM

- clutch

1шт.

17

A50289

CLUTCH ASSEMBLY - use A50411 clutch, cast iron piston style, Includes: Ref.#18 - 26

2шт.

18

30785

RING

- snap, backing plate ret., cast iron piston style

1шт.

19

A50030

PLATE

- clutch backing, cast iron piston style

1шт.

20

A50029

PLATE

DISC - clutch (sintered) (internal teeth), cast iron piston style

3шт.

21

A50028

PLATE

DISC - clutch (steel) (external teeth), cast iron piston style

3шт.

22

A27233

RING

- snap, spring retainer, cast iron piston style

1шт.

23

R11016

RETAINER

- clutch spring, cast iron piston style

1шт.

24

R11015

SPRING

- clutch, cast iron piston style

18шт.

25

A50186

PISTON

- clutch (Cast Iron), piston style

1шт.

26

A50027

RING

KIT - piston (Set of 4 rings & 1 expander), cast iron style

1шт.

27

A50415

SEAL

"O" RING - piston seal (Replaces A50025), cast iron style

1шт.

28

A50290

DRUM

- clutch, cast iron piston style

1шт.
