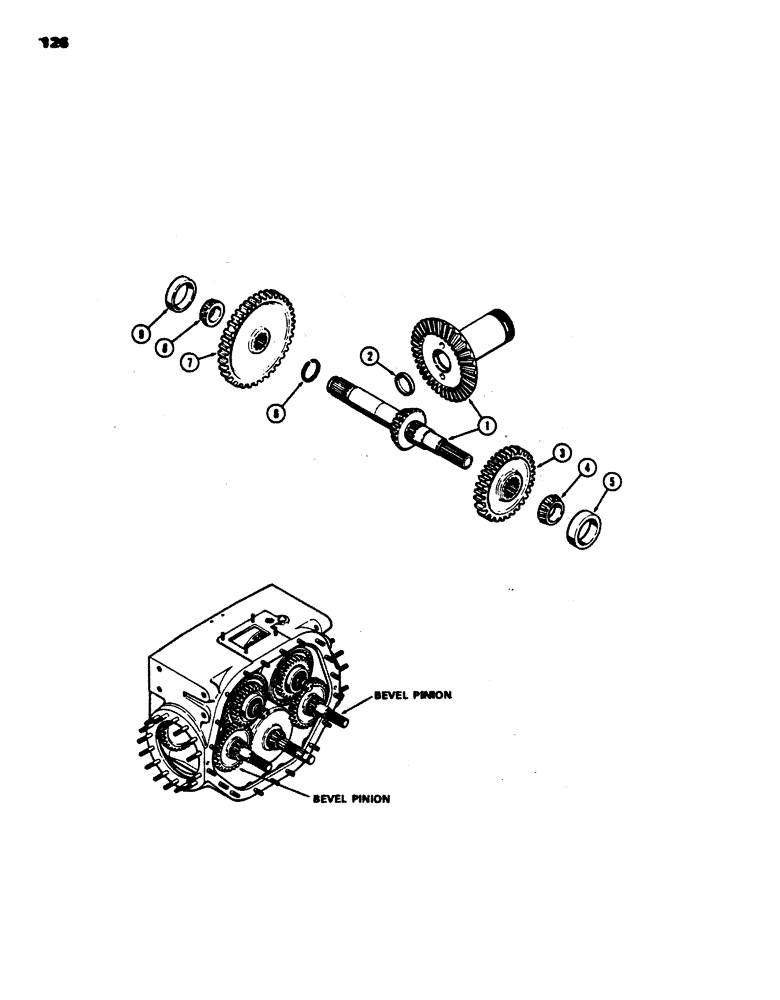

Запчасти Case 450 (126) - TRANSMISSION BEVEL PINION AND SHAFT (03) - TRANSMISSION

1

A50275

GEAR-SET

PINION & GEAR SET - matched

2шт.

2

A50099

PLUG

- bevel pinion (2-17/64" cup type)

2шт.

3

A50512

GEAR

- driven, high clutch (A50180, A50245, A54115 and A54116 Transmission)

1шт.

3

A51930

GEAR

- drive, high clutch (Used A51924 and A51925 Transmissions)

1шт.

4

R17219

ROLLER BEARING

CONE - pinion shaft front bearing (1-5/8" I.D.)

2шт.

5

F62007

CUP

- pinion shaft front bearing (3-1/8" O.D.)

2шт.

6

A27085

RING

- snap, low clutch driven gear retaining

2шт.

7

A50575

GEAR

- driven, low clutch (51 teeth) (Replaces A50513 and A50263)

2шт.

8

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

CONE - high-low clutch rear bearing (1-1/2" I.D.)

2шт.

9

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - high-low clutch rear bearing (2-27/32" O.D.)

2шт.
