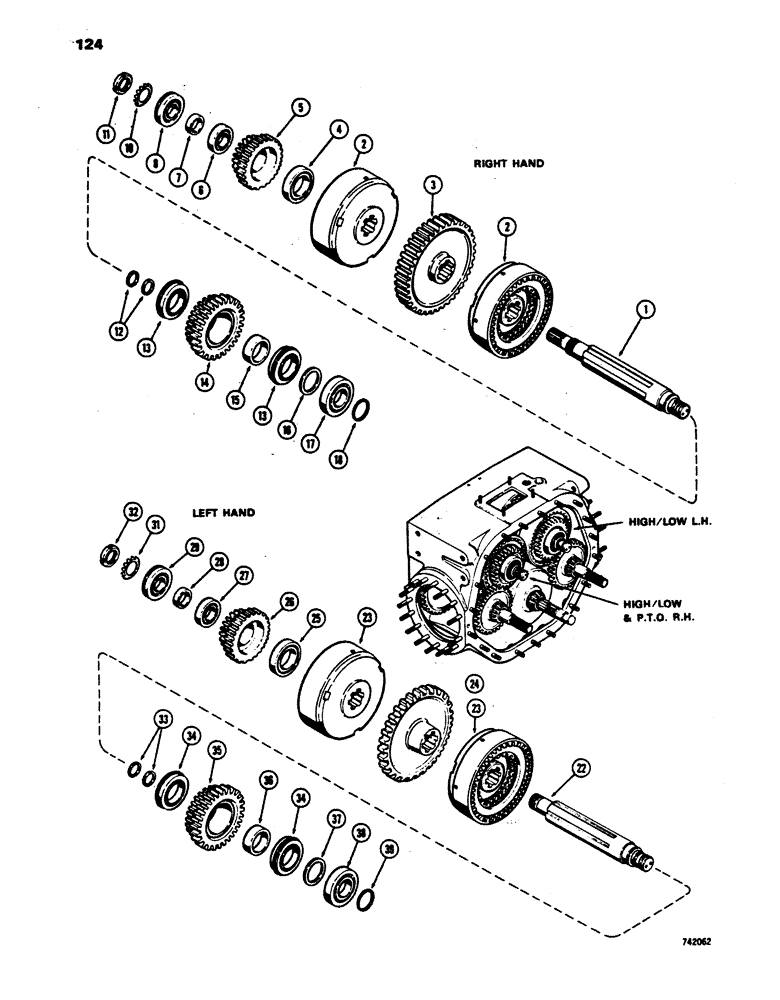

Запчасти Case 450 (124) - TRANS. HIGH & LOW CLUTCH SHAFTS, USED BEFORE LOADER TRANS. SN 2682386 (03) - TRANSMISSION

1

A50520

SHAFT

ASSY. - high-low clutch & P.T.O. (Replaces A50283)

1шт.

2

A50287

X

CLUTCH ASSEMBLY - high-low (Cast iron) Parts list Fig. 130 (Use A50412)

2шт.

2

A50412

CLUTCH

ASSEMBLY - high-low (aluminum) Parts list Fig. 130

2шт.

3

NLS

NO LONGER SERVICED

- (51 teeth) (1-1/2" tooth width) (Replaces 31939)

1шт.

4

G10418

BEARING, BALL

BEARING - ball, low clutch gear, inner

1шт.

5

A50574

SHAFT

GEAR - low clutch (20 & 29 teeth)

1шт.

6

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch gear, outer

1шт.

7

A50036

RING

SPACER - low clutch gear brg. (1-3/8 x 1-5/8 x 7/16")

1шт.

8

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSY. - clutch shaft, rear

1шт.

10

192-307

LOCK WASHER,Type W-07

WASHER - lock, rear bearing

1шт.

11

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, shaft bearings

1шт.

12

A50389

SEAL

RING - seal, clutch shaft oil collector

2шт.

13

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - high clutch gear

2шт.

14

A50509

GEAR WHEEL

GEAR - high clutch (29 & 32 teeth) (Replaces R12436)

1шт.

15

A50035

BUSHING

SPACER - high clutch gear brg. (2 x 2-3/8 x 3/4")

1шт.

16

A50034

SPACER

- front clutch shaft brg. (2 x 2-3/8 x 1/8")

1шт.

17

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, clutch shaft, front

1шт.

18

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, front bearing retaining

1шт.

22

A50521

SHAFT

ASSY. - high-low clutch (Replaces A50285), lh shaft

1шт.

23

A50412

CLUTCH

ASSEMBLY - high-low (Aluminum) Parts list Fig. 130, L.H.shaft

2шт.

23

A50287

X

CLUTCH ASSEMBLY - high-low (Cast iron) Parts list Fig. 130 (Use A50412), L.H. shaft

2шт.

24

A50511

GEAR

- (51 teeth)(11/16" tooth width) (Replaces 31938), L.H. clutch & shaft

1шт.

25

G10418

BEARING, BALL

BEARING - ball, low gear, inner, L.H. clutch & shaft

1шт.

26

A50574

SHAFT

GEAR - driver, low clutch (20 & 29 teeth) (Replaces R112495 & A50476), L.H. shaft

1шт.

27

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch gear, inner, L.H. shaft

1шт.

28

A50036

RING

SPACER - low clutch gear brg. (1-3/8 x 1-5/8 x 7/16"), L.H. shaft

1шт.

29

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSY. - clutch shaft, rear, L.H.

1шт.

31

192-307

LOCK WASHER,Type W-07

WASHER - lock, rear bearing, L.H. clutch & shaft

1шт.

32

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, shaft bearings, L.H. clutch

1шт.

33

A50389

SEAL

RING - seal, clutch shaft oil collector, L.H.

2шт.

34

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - high clutch gear, L.H. shaft

2шт.

35

A50509

GEAR WHEEL

GEAR - high clutch (29 & 32 teeth) (Replaces R12436), L.H. shaft

1шт.

36

A50035

BUSHING

SPACER - high clutch gear brg. (2 x 2-3/8 x 3/4"), L.H. shaft

1шт.

37

A50034

SPACER

- front clutch shaft brg. (2 x 2-3/8 x 1/8"), L.H. shaft

1шт.

38

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, clutch shaft, front, L.H. shaft

1шт.

39

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, front bearing retaining, L.H. clutch & shaft

1шт.
