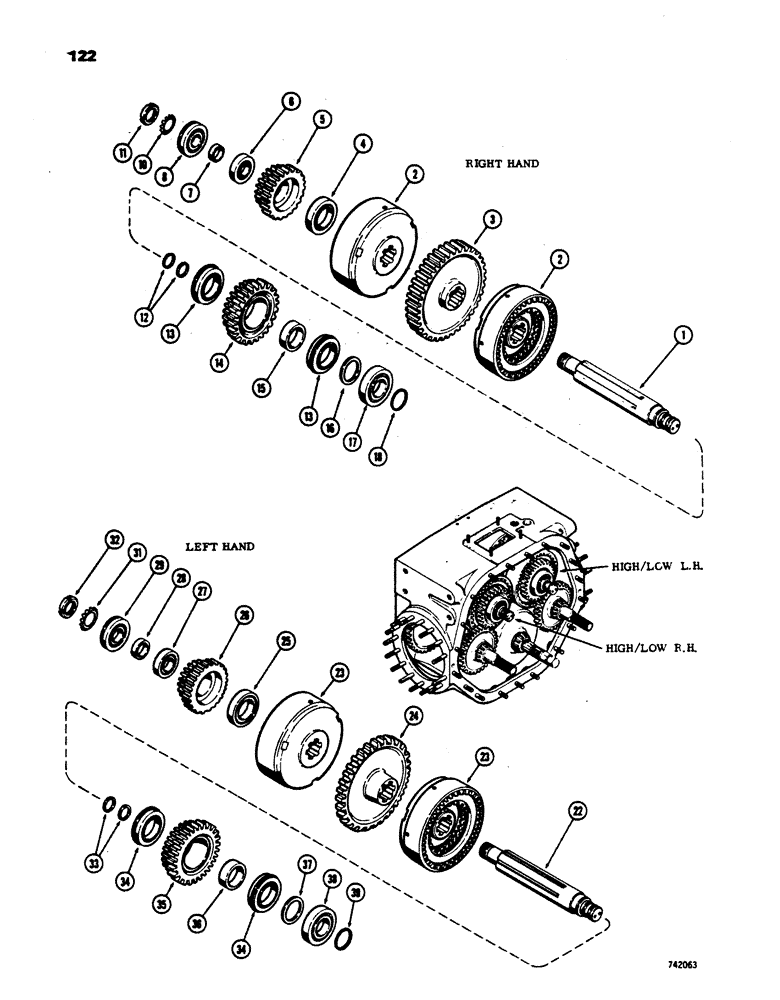

Запчасти Case 450 (122) - TRANS. HIGH & LOW CLUTCH SHAFTS, LOADER TRANS. SN 2682386 & AFT., USED DZR & DWBR TRANS. 2682396 AFT (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
A50521
SHAFT
ASSY., Includes: Ref.#1A
1шт.
1a
211-7
BALL,1/4" Dia
- steel 1/4" Dia
1шт.
2
A50412
CLUTCH
ASSEMBLY - high/low (Parts list Fig. 130)
2шт.
3
A50412
CLUTCH
GEAR - drive (51 teeth) (1-1/2" tooth width)
1шт.
4
G10418
BEARING, BALL
BEARING - ball, low clutch gear, inner
1шт.
5
A50574
SHAFT
GEAR - drive, low clutch (20 & 29 teeth)
1шт.
6
40025
BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"
- ball, low clutch gear, outer
1шт.
7
A50036
RING
SPACER - low clutch drive gear bearing (1-3/8 x 1-5/8 x 7/16")
1шт.
8
40031
BALL BEARING,34.99mm ID x 72mm OD x 17mm W
ASSEMBLY - clutch shaft, rear
1шт.
10
192-307
LOCK WASHER,Type W-07
WASHER - lock, rear bearing
1шт.
11
131-1007
LOCK NUT,Bearing, 1.3780" Bore
NUT - lock, shaft bearings
1шт.
12
A50039
SEAL
RING - seal, clutch shaft oil collector
2шт.
13
40027
BALL BEARING,49.99mm ID x 80mm OD x 16mm W
ASSEMBLY - high clutch gear
2шт.
14
A50509
GEAR WHEEL
GEAR - drive, high clutch (A54115 and A54116 Transmission)
1шт.
14
A51929
GEAR - drive, high clutch (A51924 and A51925 Transmission)
1шт.
15
A50035
BUSHING
SPACER - high clutch gear bearings (1-31/32 x 2-3/8 x 49/64")
1шт.
16
A50034
SPACER
- front clutch shaft bearing (1-31/32 x 2-3/8 x 1/8")
1шт.
17
B18274
BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"
BEARING - ball, clutch shaft (Front)
1шт.
18
A50033
SNAP RING,#177, 1.657", Ext
RING - snap, front bearing retaining
1шт.
21
A50521
SHAFT
ASSEMBLY, Includes: Ref.#22
1шт.
22
211-7
BALL,1/4" Dia
- steel 1/4" Dia
1шт.
23
A50412
CLUTCH
ASSEMBLY - high/low (Parts list Fig. 130)
2шт.
24
A50511
GEAR
- drive (51 teeth)(11/16" tooth width)
1шт.
25
G10418
BEARING, BALL
BEARING - ball, low clutch gear, inner
1шт.
26
A50574
SHAFT
GEAR - drive, low clutch (20 & 29 teeth)
1шт.
27
40025
BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"
- ball, low clutch gear, outer
1шт.
28
A50036
RING
SPACER - low clutch drive gear bearing (1-3/8 x 1-5/8 x 7/16")
1шт.
29
40031
BALL BEARING,34.99mm ID x 72mm OD x 17mm W
ASSEMBLY - clutch shaft, rear
1шт.
31
192-307
LOCK WASHER,Type W-07
WASHER - lock, rear bearing
1шт.
32
131-1007
LOCK NUT,Bearing, 1.3780" Bore
NUT - lock, shaft bearings
1шт.
33
A50039
SEAL
RING - seal, clutch shaft oil collector
2шт.
34
40027
BALL BEARING,49.99mm ID x 80mm OD x 16mm W
ASSEMBLY - high clutch gear
2шт.
35
A50509
GEAR WHEEL
GEAR - drive, high clutch (A54115 and 54116 Transmission)
1шт.
35
A51929
GEAR - drive, high clutch (A51924 and A51925 Transmission)
1шт.
36
A50035
BUSHING
SPACER - high clutch gear bearings (1-31/32 x 2-3/8 x 49/64")
1шт.
37
A50034
SPACER
- front clutch shaft bearing (1-31/32 x 2-3/8 x 1/8")
1шт.
38
B18274
BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"
BEARING - ball, clutch shaft (Front)
1шт.
39
A50033
SNAP RING,#177, 1.657", Ext
RING - snap, front bearing retaining
1шт.
Выбрано товаров: 38
