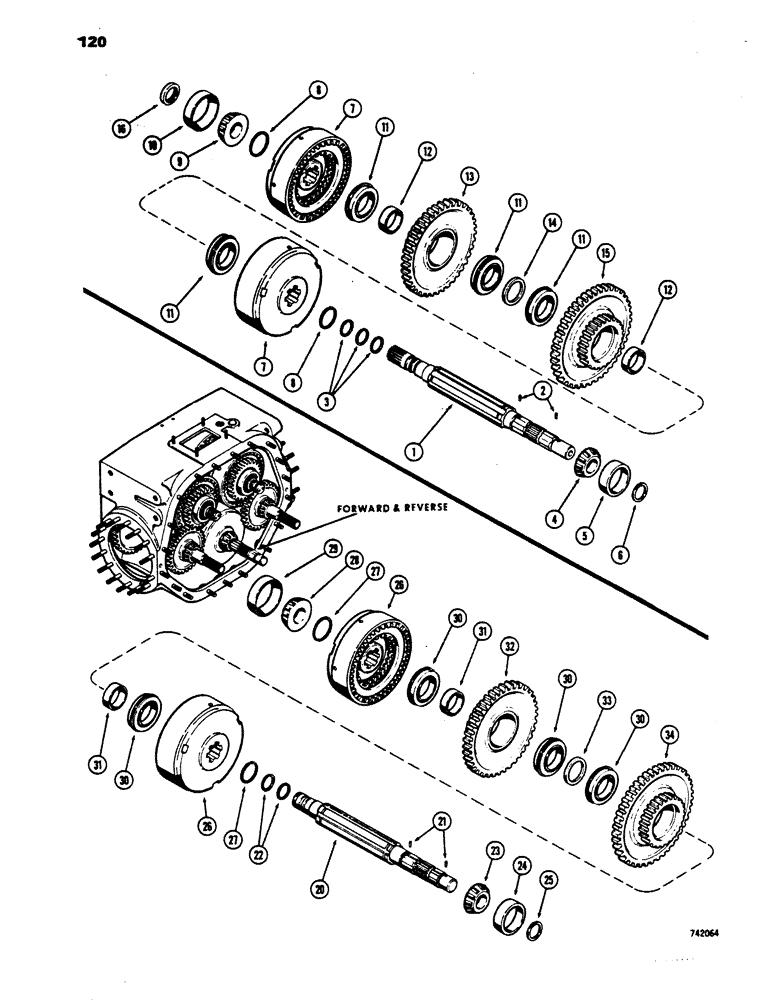

Запчасти Case 450 (120) - TRANS. FWD-REV. CLUTCH & P.T.O. SHAFT, USED LOADER TRANS. SN 2682386 & AFT (03) - TRANSMISSION

1

A54108

SHAFT

ASSY. - forward and reverse clutch and constant running P.T.O., Includes: Ref.#1A and 1B

1шт.

1a

211-7

BALL,1/4" Dia

- steel (Not shown) 1/4" Dia

1шт.

1b

211-11

BALL,3/8" Dia

- steel, 1-. (Not shown) 3/8" Dia

1шт.

2

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, 5/32" x 7/16", Slotted

2шт.

3

A51841

RING

- seal, clutch shaft oil collector

3шт.

4

A30076

ROLLER BEARING,1.625" ID x 0.963"

CONE - bearing, clutch shaft, front (1-5/8" I.D.)

1шт.

5

G15202

CUP

- bearing, clutch shaft, front (3" O.D.)

1шт.

6

R20786

RING

- snap, front bearing retainer

1шт.

7

A50411

CLUTCH

ASSEMBLY - forward & reverse (Parts list Fig. 128)

2шт.

8

A50046

RING

- snap, clutch retaining

2шт.

9

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing, clutch shaft, rear (1-37/64" I.D.)

1шт.

10

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - bearing, clutch shaft, rear (3-11/32" O.D.)

1шт.

11

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSEMBLY - clutch

4шт.

12

A50293

SPACER

- clutch bearings

2шт.

13

A50506

GEAR

- drive, forward clutch (29 & 51 teeth)

1шт.

14

A50034

SPACER

- drive gears

1шт.

15

A50505

GEAR WHEEL

GEAR - drive, reverse clutch (29 & 56 teeth)

1шт.

16

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil, P.T.O. shaft

1шт.

20

A50519

SHAFT

ASSY. - forward & reverse clutch (Replaces A50256), used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

1шт.

21

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, , For-rev clutch used before loader trans S/N 2682386, dozer & drawbar trans. S/N 2682396 5/32" x 7/16", Slotted

2шт.

22

A50389

SEAL

RING - seal, shaft oil collector, for-rev clutch used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

2шт.

23

A30076

ROLLER BEARING,1.625" ID x 0.963"

CONE - bearing, shaft, front (1-5/8" I.D.), for-rev clutch used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

1шт.

24

G15202

CUP

- bearing, shaft, front (3" O.D.), for-rev clutch used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

1шт.

25

R20786

RING

- snap, front bearing retaining, for-rev clutch used before loder trans s/n 2682386, dozer & drawbar trans. s/n 2682396

1шт.

26

A50411

CLUTCH

ASSEMBLY - forward & reverse (aluminum) Parts list Fig. 128,used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

2шт.

26

A50289

CLUTCH ASSEMBLY - forward & reverse (Cast iron) Use A50411, Parts list Fig. 128, used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

2шт.

27

A50046

RING

- snap, retaining, for-rev clutch used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

2шт.

28

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing, shaft, rear (1-37/64" I.D.), for-rev clutch used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

1шт.

29

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - bearing, shaft, rear (3-11/32" O.D.), for-rev clutch used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

1шт.

30

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - for-rev clutch used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

4шт.

31

A50293

SPACER

- bearings, for-rev clutch used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

3шт.

32

A50506

GEAR

- driver, (29 & 51 teeth)(Replaces A50291), for-rev clutch used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

1шт.

33

A50034

SPACER

- drive gears, for-rev clutch used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

1шт.

34

A50505

GEAR WHEEL

GEAR - driver, (29 & 56 teeth)(Replaces A50292), for-rev clutch used before loader trans s/n 2682386, dozer & drawbar trans. s/n 2682396

1шт.
