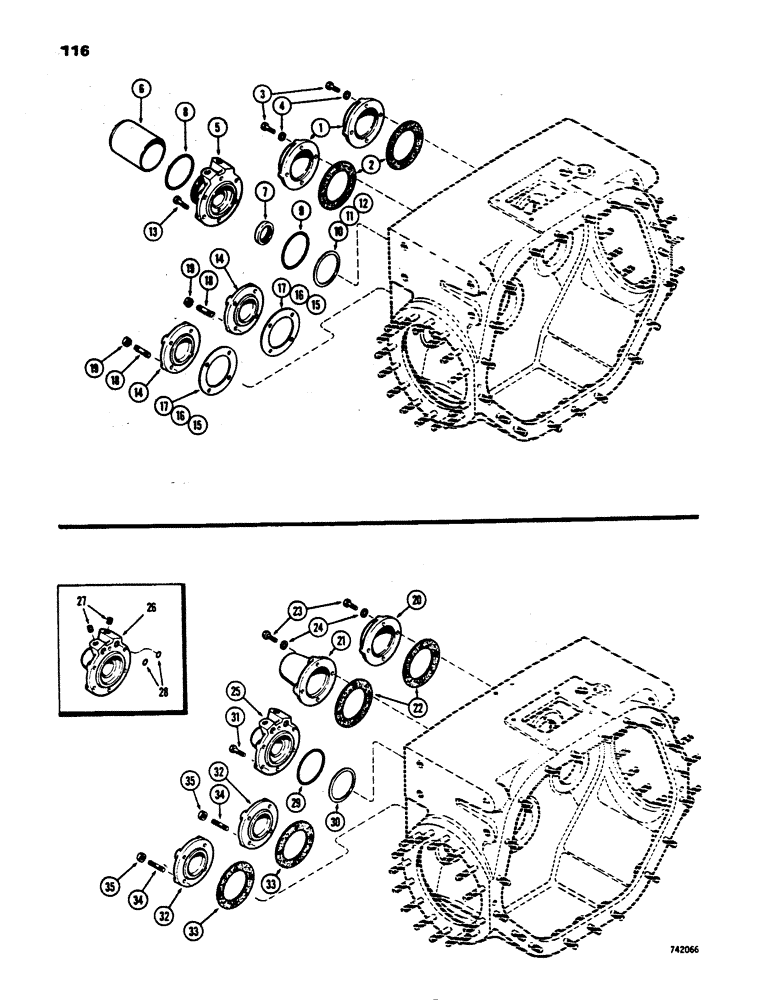

Запчасти Case 450 (116) - TRANS. HOUSING REAR COVERS, USED LOADER TRANS. SN 2682386 & AFT, USED DZR & DWBR TRANS. SN 2682396 (03) - TRANSMISSION

1

A50060

COVER

- Hi-Lo clutch shafts

2шт.

2

A50058

GASKET

- Hi-Lo clutch covers

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

8шт.

4

A22317

WASHER

- cover bolt (25/64" x 11/16" x 3/64" copper)

8шт.

5

A50578

COVER

- forward-reverse & PTO shaft (Used with 1/4" NPT tube adapter)

1шт.

5

A54106

X

COVER - forward-reverse & PTO shaft. Used with 1/8" NPT tube adapter. (Use (1) A50578 cover & (2) 218-443 adapters)

1шт.

6

A54111

COVER

- PTO shaft

1шт.

7

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil, PTO shaft

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O"RING - Winch models only

1шт.

9

A50055

SEALING RING

RING - cover sealing (3-1/4" x 3-7/16" x 3/32" rubber)

1шт.

10

A50053

SHIM,.003" Thk

Cover .003" Thk

1шт.

11

40590

SHIM

- cover (.005")

1шт.

12

40591

SHIM

- cover (.010")

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

14

A50271

COVER

- pinion shafts

2шт.

15

A50348

SHIM,.003" Thk

Cover .003" Thk

1шт.

16

A50272

SHIM,.005" Thk

Cover .005" Thk

1шт.

17

CASA50347

SHIM

- cover (.010")

1шт.

18

A50019

NO LONGER SERVICED

STUD - covers (3/8" NC x 1-1/2")

8шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

8шт.

20

A50060

COVER

- Hi-Lo clutch shaft, L.H., used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

1шт.

21

A50059

COVER

- Hi-Lo clutch shaft, R.H. & PTO shaft, used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

1шт.

22

A50058

GASKET

- clutch shaft covers, used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

3шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2", used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

8шт.

24

A22317

WASHER

- mounting bolts (25/64" x 11/16" x 3/64" copper), used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

8шт.

25

A50469

COVER

- A50467 housing, forward & reverse clutch, used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396, Start Serial: 2661238

1шт.

26

A50054

COVER

- A50280 housing, forward-reverse clutch, used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396, Serial Range: -2661238

1шт.

27

221-1840

PLUG

- hex. socket head (1/8" NPT) Used with A50054 cover, used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

2шт.

28

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - 7/16" x 5/8" x 3/32" (Used with A50054 cover), used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

2шт.

29

A50055

SEALING RING

RING - cover sealing (3-1/4" x 3-7/16" x 3/32" rubber), used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

1шт.

30

40590

SHIM

- forward-reverse cover (.003"), used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

1шт.

30

40591

SHIM

- forward-reverse cover (.005"), used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

1шт.

31

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Used before loader transmission S/N 2682386, Used before dozer and drawbar transmission S/N 2682396 Hex, 3/8"-16 x 1 3/4", G5

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used before loader transmission S/N 2682386, Used before dozer and drawbar transmission S/N 2682396 Hex, 3/8"-16 x 1", G5, Full Thd

5шт.

32

A50271

COVER

- pinion shafts, used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

2шт.

33

A50348

SHIM,.003" Thk

Pinion shaft cover, Used before loader transmission S/N 2682386, Used before dozer and drawbar transmission S/N 2682396 .003" Thk

1шт.

33

A50272

SHIM,.005" Thk

Pinion shaft cover, used before loader transmission S/N 2682386, used before dozer and drawbar transmission S/N 2682396 .005" Thk

1шт.

33

CASA50347

SHIM

- rear pinion shaft cover (.010"), used before loader transmission S/N 2682386, used before dozer and drawbar transmission S/N 2682396

1шт.

34

A50019

NO LONGER SERVICED

STUD - pinion cover (3/8" NC x 1-1/2"), used before loader transmission SN. 2682386, used before dozer and drawbar transmission SN. 2682396

8шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

8шт.
