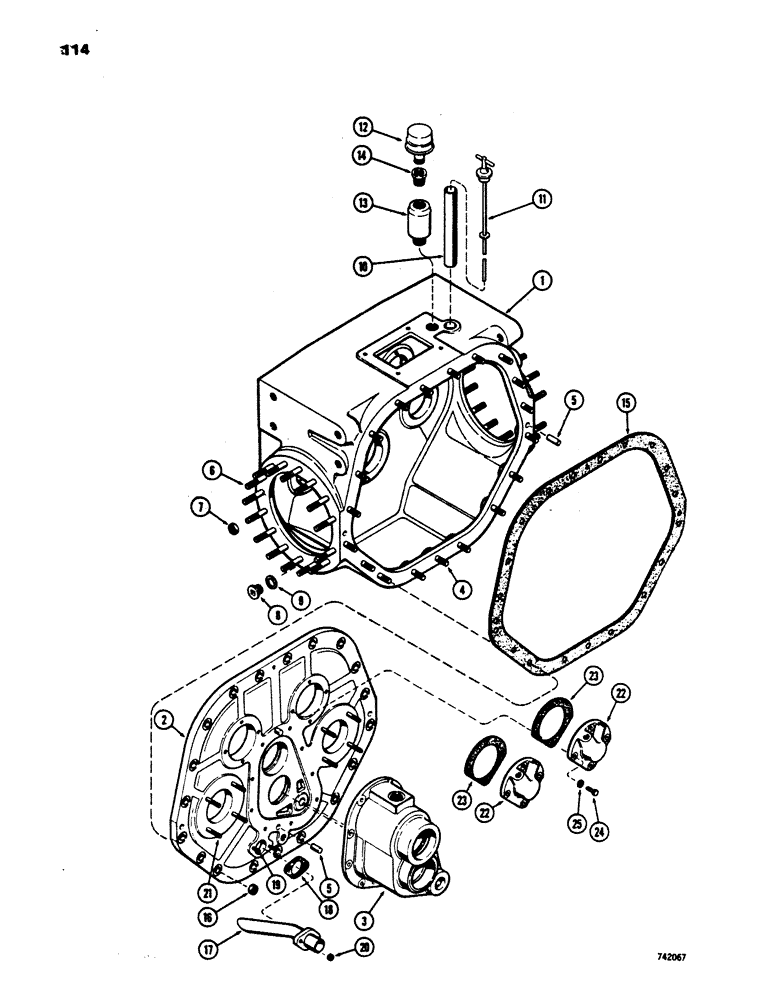

Запчасти Case 450 (114) - TRANSMISSION HOUSING AND FRONT COVERS (03) - TRANSMISSION

A50180

TRANSMISSION - Loader Models without constant running P.T.O. Used before Transmission Sn. 2682386 (For complete transmission, see Figures 114 thru 144)

1шт.

A54115

TRANSMISSION - Loader Models with constant running P.T.O. Used Transmission Sn. 2682386 thru 2791295 (For complete transmission, see Figures 114 thru 144)

1шт.

A51924

TRANSMISSION - Loader Models with constant running P.T.O. Used Transmission Sn. 2791295 and after (For complete Transmission, see Figures 114 thru 144)

1шт.

A50245

TRANSMISSION - Dozer and Drawbar Models without constant running P.T.O. Used before Transmission Sn. 2682396 (For complete Transmission, see Figures 114 thru 144)

1шт.

A54116

NO LONGER SERVICED

TRANSMISSION - Dozer and Drawbar Models with constant running P.T.O. Used Transmission Sn. 2682396 thru 2791295 (For complete Transmission, see Figures 114 thru 144)

1шт.

A51925

TRANSMISSION - Dozer and Drawbar Models with constant running P.T.O. Used Transmission Sn. 2791295 and after (For complete Transmission, see Figures 114 thru 144)

1шт.

A50280

HOUSING

ASSEMBLY - used before Transmission Sn. 2661238, Includes: Ref.#1 - 5

1шт.

A50467

HOUSING

ASSEMBLY - used Transmission Sn. 2661238 - 2791295, Includes: Ref.#1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - housing, front

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - two speed shift (Parts list Fig. 118)

1шт.

4

A50249

STUD

- 9/16" - 12 NC x 2-3/8"

19шт.

5

A50247

DOWEL

PIN - 1/2" x 1-1/4"

4шт.

6

A50021

STUD

- 1/2" NC x 3"

30шт.

7

230-4618

LOCK NUT,1/2"-20, GA

NUT - hex., lock (1/2" x 13 NC)

30шт.

Should have been P/N 131-734

1шт.

8

R14777

PLUG

- drain, transmission

1шт.

9

A58613

SEALING WASHER

WASHER - drain plug

1шт.

10

A50018

TUBE

- oil level gauge

1шт.

11

A50225

DIPSTICK

- oil level gauge

1шт.

12

A27173

BREATHER

ASSEMBLY - transmission

1шт.

13

A50116

BAFFLE

- breather

1шт.

14

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- reducer, 3/4" to 1/4"

1шт.

15

G35334

GASKET

- front, Serial Range: cover-housing

1шт.

16

232-4119

LOCK NUT,9/16"-12, GC

NUT - hex., lock (9/16" x 12 NC)

19шт.

17

A50110

TUBE

- oil suction

1шт.

18

A50109

GASKET

- tube

1шт.

19

A50362

STUD

- 3/8" - 16 NC x 1-3/8"

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces 25-106) 3/8"-16, G5

2шт.

21

A50241

STUD

- 1/2" - 13 NC x 2-1/8"

8шт.

22

A50057

COVER

- oil inlet (Hi-Lo Clutch)

2шт.

23

A50056

GASKET

- front inlet cover

2шт.

24

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

HHCS - 3/8" - 16 NC x 1-1/4"

8шт.

25

A22317

WASHER

- mounting bolt, copper

8шт.
