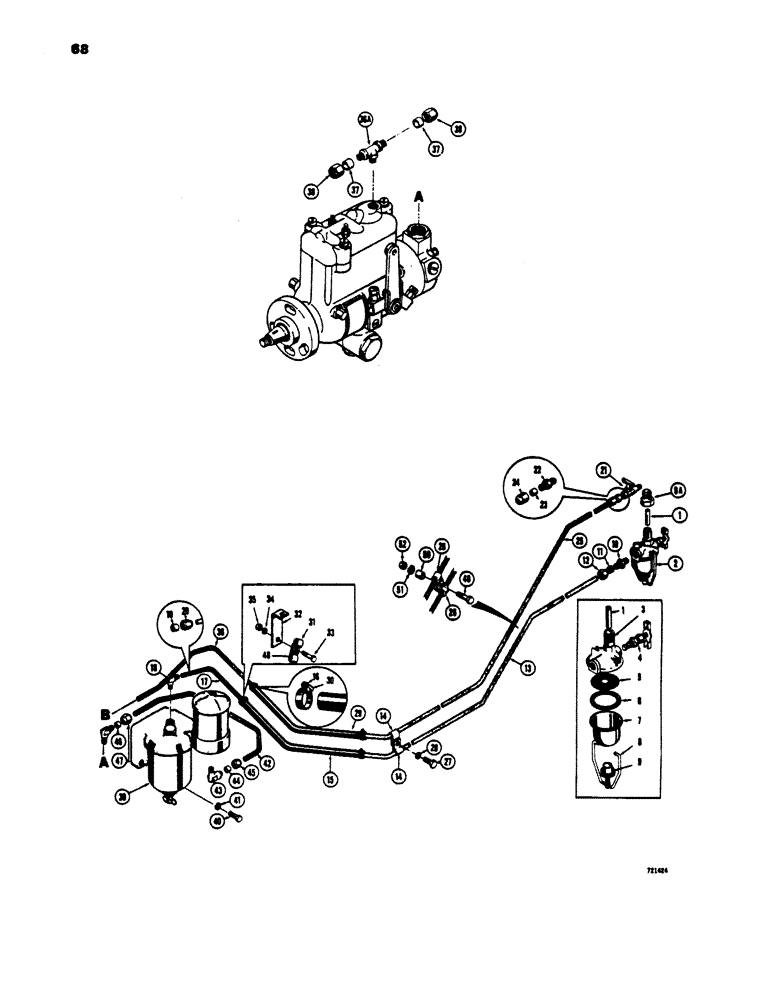

Запчасти Case 450 (068) - FUEL LINES AND STRAINER (02) - FUEL SYSTEM

R25288

STRAINER ELEMENT

FUEL STRAINER ASSEMBLY - complete, Includes: Ref.#1 - 9

1шт.

1

R25287

TUBE,0.375" OD x 2.12" L

- inlet

1шт.

2

A30049

STRAINER ELEMENT

FUEL STRAINER, Includes: Ref. 3 - 9

1шт.

3

41932

COVER

- strainer

1шт.

4

A11200

COCK

VALVE - shut-off

1шт.

5

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

6

A11208

GASKET

- bowl

1шт.

7

NLS

NO LONGER SERVICED

- metal (if used)

1шт.

7

A11209

BOWL

- glass (if used)

1шт.

8

A11212

BAIL

- bowl

1шт.

9

A11210

ADJUSTER

NUT - cup, bail

1шт.

9a

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, Start Serial: 3049198

1шт.

10

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - flex, male, Includes: Ref.#11 & 12

1шт.

11

222-103

SLEEVE,5/16" Tube

1шт.

12

222-113

TUBE NUT,9/16"-24

NUT

1шт.

13

D34994

TUBE

- fuel line (Rear)

1шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- D34994 and D34995 tubes

2шт.

14

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- D51736 tube

1шт.

15

D34989

FUEL HOSE,0.31" ID x 9.00", SAE 30R1

0.31" ID x 9.00", SAE 30R1

1шт.

16

214-300

CLAMP

- hose

2шт.

17

D34993

TUBE

- fuel line (Front)

1шт.

18

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- flex, male, Includes: Ref.#19 & 20

1шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT

1шт.

21

217-94

SHUT-OFF VALVE

VALVE - shut-off, screw type

1шт.

22

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR - flex, male (5/16" O.D.) D34995 tube

1шт.

23

222-103

SLEEVE,5/16" Tube

1шт.

24

222-113

TUBE NUT,9/16"-24

NUT

1шт.

22

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - flex, male (1/4" O.D.) D51763 tube, Includes: Ref.#23 & 24

1шт.

23

222-102

SLEEVE,1/4" Tube

1шт.

24

87017024

TUBE NUT,1/2"-24

NUT - tube

1шт.

25

D34995

TUBE

- return (Rear), Serial Range: -3044935

1шт.

25

D51736

TUBE

- return (Rear), Start Serial: 3044935

1шт.

26

49832

CLAMP

- tube

2шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

29

D34989

FUEL HOSE,0.31" ID x 9.00", SAE 30R1

Fuel Return, D34995 Tube 0.31" ID x 9.00", SAE 30R1

1шт.

29

D51735

FUEL HOSE

HOSE - fuel return, D51736 tube

1шт.

30

214-301

CLIP

CLAMP - hose

2шт.

31

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

1шт.

32

D34990

BRACKET

- tube support

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

34

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

36

D41913

TUBE

- fuel return (Front)

1шт.

36a

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

- male, Includes: Ref.#37 & 38

1шт.

37

222-102

SLEEVE,1/4" Tube

1шт.

38

87017024

TUBE NUT,1/2"-24

NUT

1шт.

39

A39865

FUEL FILTER

FILTER - fuel, dual stage (Parts list Fig. 46)

1шт.

40

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

41

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

3шт.

42

A36566

TUBE

- fuel line, Serial Range: filter-pump

1шт.

43

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- flex, male, Includes: Ref.#44 & 45

1шт.

44

222-104

SLEEVE,3/8" Tube

1шт.

45

222-114

NUT,5/8"-24

NUT

1шт.

46

222-104

SLEEVE,3/8" Tube

1шт.

47

222-114

NUT,5/8"-24

NUT

1шт.

48

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tube

1шт.

49

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

50

A27328

SPACER

- tube

1шт.

51

92-8

LOCK WASHER,1/2"

1шт.

52

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.
