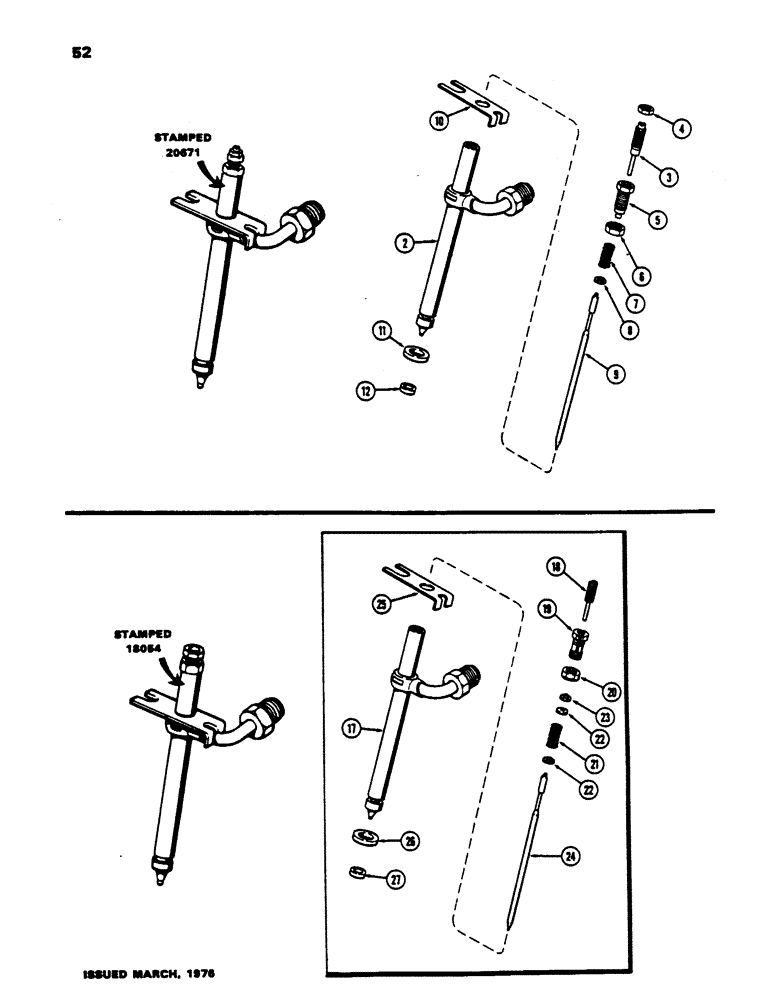

Запчасти Case 450 (052) - A140829 INJECTION NOZZLES, (188) DIESEL ENGINE, 1ST USED ENG. S.N. 2734508 (02) - FUEL SYSTEM

1

A140829

NOZZLE INJECTION

NOZZLE ASSY. - injector (Rpl. A51234) (No. 20671 stamped on body) (White color code)

4шт.

A140829R

REMAN-INJECT NOZZLE

450 S/N 3038436 TO 3060306, 1ST USED ENG. S.N. 2734508

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A43733

SPRING

- nozzle pressure adjusting (9/16" free length w/red stain)

1шт.

8

A44369

SEAT

- pressure adjusting spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A43506

PLATE ASSY.

PLATE - nozzle holder

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

16

A37836

NOZZLE

ASSY. - injector (No. 18054 stamped on body) (w/out color code), Includes: Ref.#17 - 27, Serial Range: -2734508

4шт.

A140829R

REMAN-INJECT NOZZLE

450 (S/N 3038436 TO 30603096) (SERIAL RANGE: -2734508) 1ST USED ENG. S.N. 2734508, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - nozzle, A37836 injector nozzle, Serial Range: -2734508

1шт.

18

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting, A37836 injector nozzle, Serial Range: -2734508

1шт.

19

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting, A37836 injector nozzle, Serial Range: -2734508

1шт.

20

A42424

LOCK NUT

- lock, adjusting screws, A37836 injector nozzle, Serial Range: -2734508

1шт.

21

A41444

VALVE SPRING

SPRING - nozzle pressure adjusting (17/32" free length, plain), A37836 injector nozzle, Serial Range: -2734508

1шт.

22

A41401

SEAT

- spring, A37836 injector nozzle, Serial Range: -2734508

2шт.

23

A41407

WASHER

- upper seat locating, A37836 injector nozzle, Serial Range: -2734508

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - A37836 injector nozzle, Serial Range: -2734508

1шт.

25

A43506

PLATE ASSY.

PLATE - locating (Replaces A41405), A37836 injector nozzle, Serial Range: -2734508

1шт.

26

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, A37836 injector, Serial Range: -2734508

1шт.

27

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, A37836 injector nozzle us, Serial Range: -2734508

1шт.
