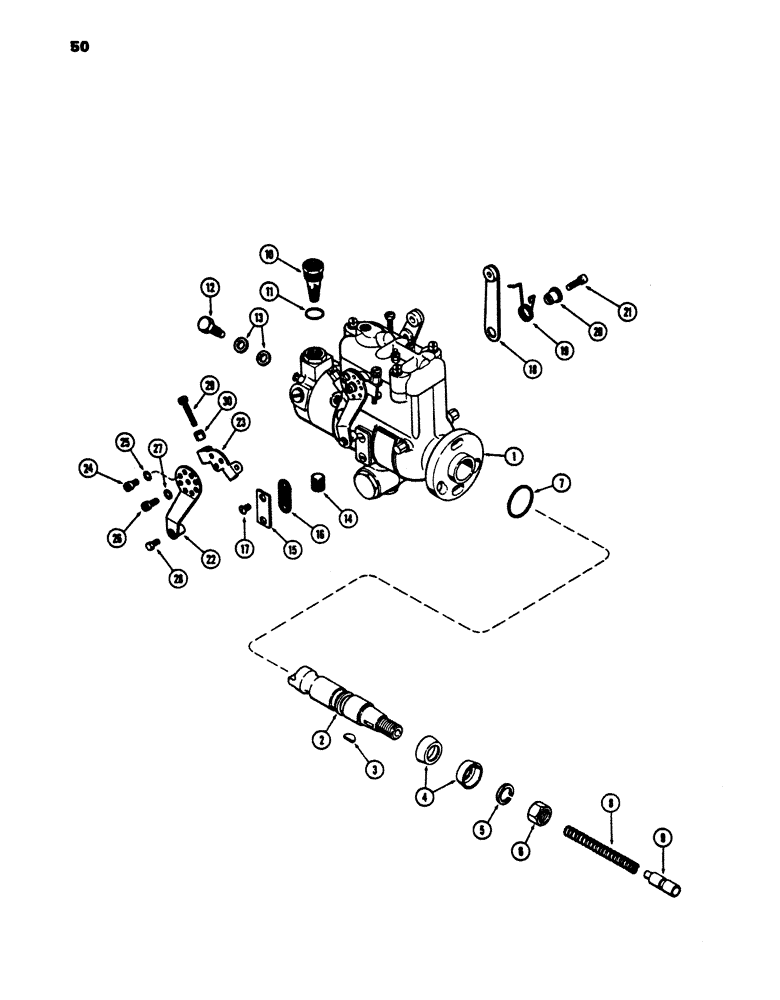

Запчасти Case 450 (050) - A35775 INJECTION PUMP, (188) DIESEL ENGINE, USED PRIOR TO ENG. S.N. 2617460 (02) - FUEL SYSTEM

1

A35775

PUMP

ASSY. - fuel injection (2000 R.P.M.) (H.M.S. No. DBGFCC431-29AJ), Includes: Ref.#2 - 30

1шт.

2

G47113

SHAFT

- drive

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

R14711

SEAL

- drive shaft

2шт.

5

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

6

25-159

JAM NUT,Jam, 9/16"-18, G5

- jam, 9/16" N.F. hex

1шт.

7

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

8

G48502

SPRING

- thrust, pump drive shaft

1шт.

9

G47128

PLUNGER

- thrust spring

1шт.

10

CAS73671

FILTER, ELEMENT

FILTER ASSY.

1шт.

11

51200280

SEAL

- filter

1шт.

12

73613

SCREW

- connector, injection tube

4шт.

13

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

8шт.

14

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

15

G46330

COVER

- timing window

2шт.

16

73453

GASKET

- cover

2шт.

17

NLS

NO LONGER SERVICED

- timing cover

4шт.

18

G45338

ARM

- throttle

1шт.

19

G48505

SPRING

- throttle arm

1шт.

20

G49621

RETAINER

- throttle arm spring

1шт.

21

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW - throttle arm (Replaces G49079)

1шт.

22

G45337

ARM

- shut-off

1шт.

23

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

24

73646

SCREW

- position, shut-off arm

1шт.

25

73670

SCREW

WASHER - position screw

1шт.

26

73670

SCREW

- retaining, shut-off arm

1шт.

27

73630

LOCK WASHER

WASHER - retainging screw

1шт.

28

73667

IGNITION SWITCH

- pivot

1шт.

29

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

30

51200274

NUT

- high idle screw

1шт.
