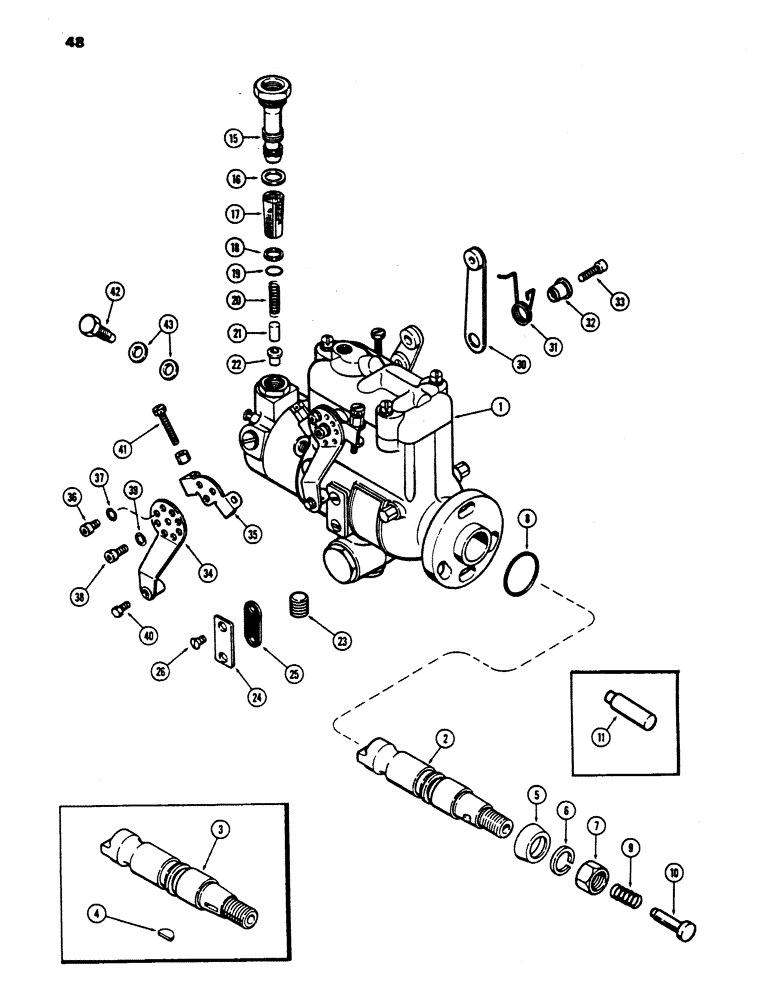

Запчасти Case 450 (048) - A51047 INJECTION PUMP, (188) DIESEL ENGINE, 1ST USED ENG. S.N. 2617460 (02) - FUEL SYSTEM

1

A51047

PUMP

ASSY. - fuel injection (2000 R.P.M.) (H.M.S. No. DBGFCC431-39AJ), Includes: Ref.#2 - 43

1шт.

2

A44710

SHAFT

ASSY. - drive, w/pin

1шт.

3

G47113

SHAFT

- drive (requires key)

1шт.

4

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

(Used w/G47113 shaft only) #6, 5/32" x 5/8"

1шт.

5

R14711

SEAL

- drive shaft

1шт.

6

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

7

25-119

NUT,9/16"-18, G5

- 9/16" N.F. hex., jam

1шт.

8

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

9

G48502

SPRING

- thrust, pump shaft (1-3/16" free length)

1шт.

10

A44653

PLUNGER

- thrust spring, w/button head

1шт.

11

G47128

PLUNGER

- thrust spring, w/out button head (Order plunger A44653)

1шт.

15

A43869

SLEEVE

- end plate

1шт.

16

73666

AIR CLEANER

- end plate sleeve

1шт.

17

A43870

FILTER, FUEL

FILTER - element

1шт.

18

A43871

SEAL

- element (3/8 x 1/2 x 1/16")

1шт.

19

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Sleeve

1шт.

20

A43867

SPRING

- regulating (21/32" free length)

1шт.

21

73621

PISTON

- regulating (Replaces A43886)

1шт.

22

A43868

SEAL

- regulating piston (rubber)

1шт.

23

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

End plate Hex Soc, 1/4"-18 NPTF

1шт.

24

G46330

COVER

- timing window

1шт.

25

NLS

NO LONGER SERVICED

- timing window cover

1шт.

26

73514

SCREW

- timing window cover

2шт.

30

G45338

ARM

- throttle

1шт.

31

G48505

SPRING

- throttle arm

1шт.

32

G49621

RETAINER

- throttle arm spring

1шт.

33

G49079

SET SCREW

SCREW - throttle arm

1шт.

34

G45337

ARM

- shut-off

1шт.

35

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

36

165-1

SCREW,#8 x 1/4"

- position, shut-off arm

1шт.

37

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Position screw Int Tooth, #8

1шт.

38

165-30

HEX SOC SCREW,#10 - 32 x 3/8"

SCREW - retaining, shut-off arm

1шт.

39

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Retaining screw Int Tooth, #10

1шт.

40

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

- pivot

1шт.

41

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adj. high idle (#10-32 x 1-3/4" sltd. hd.)

1шт.

42

73613

SCREW

- connector, inj. tubes

4шт.

43

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw (3/8 x 1/2 x 1/16")

8шт.
