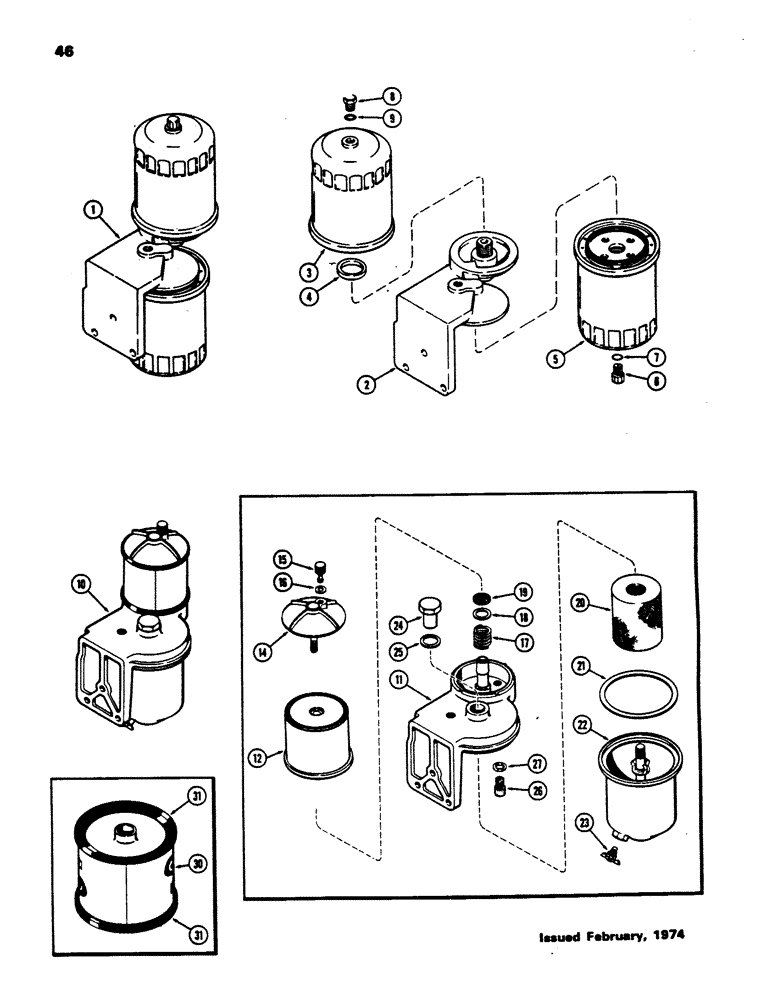

Запчасти Case 450 (046) - A51739 FUEL FILTER, (188) DIESEL ENGINE, 1ST USED ENG. S.N. 2718490 SPIN-ON TYPE (02) - FUEL SYSTEM

1

A51739

FILTER

ASSY. - fuel (Replaces A39865), Includes: Ref.#2 - 9

1шт.

2

A51738

CYLINDER HEAD

HEAD - filter mounting (Replaces A39866)

1шт.

3

A39867

FUEL FILTER

ASSY. - fuel (secondary) (15/16" threads, spin-on end), Includes: Ref.#4

1шт.

4

A42315

GASKET

- filter to head (15/16 x 1-7/32 x 1/4")

1шт.

5

A39868

FUEL FILTER

ASSY. - fuel (primary) (13/16" threads, spin-on end)

1шт.

6

G49080

PLUG

- primary filter drain (3/8" N.F., 12 pt. hd., nylon)

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, primary filter drain plug

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy, Secondary filter drain, Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, secondary filter drain plug

1шт.

10

A35735

FILTER

ASSY. - fuel, A35735 can type, Includes: Ref.k#11 - 27, Serial Range: -2718490

1шт.

11

A35664

HEAD

- mounting, A35735 fuel filter can type, Serial Range: -2718490

1шт.

12

A51346

FILTER

ELEMENT ASSY. - final, w/gasket (Ref. 30) (Replaces A37187 & A39109), A35735 fuel filter can type, Serial Range: -2718490

1шт.

14

A35672

CAP

- final filter, A35735 fuel filter can type, Includes: Ref.#15 & 16, Serial Range: -2718490

1шт.

15

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder, A35735 fuel filter can type, Serial Range: -2718490

1шт.

17

A35669

SPRING

- final filter, A35735 fuel can type, Serial Range: -2718490

1шт.

16

NLS

NO LONGER SERVICED

GASKET - bleeder valve, A35735 fuel filter can type, Serial Range: -2718490

1шт.

18

A35670

WASHER

- final filter, A35735 uel can type, Serial Range: -2718490

1шт.

19

A35671

GASKET

- rubber, final filter, A35735 fuel can type, Serial Range: -2718490

1шт.

21

A28056

GASKET

- filter body, A35735 fuel can type, Serial Range: -2718490

1шт.

20

A35863

FILTER, ELEMENT

ELEMENT - primary filter, A35735 fuel can type, Includes: Ref.#21, Serial Range: -2718490

1шт.

22

A37099

FUEL FILTER

BODY - primary filter, A35735 fuel can type, Serial Range: -2718490

1шт.

23

217-102

PLUG, DRAIN

VALVE - drain, 1/8" P.T., A35735 fuel filter can type, Serial Range: -2718490

1шт.

24

A21131

NUT

- primary filter body, A35735 fuel can type, Serial Range: -2718490

1шт.

25

A28055

GASKET

- nut to head, A35735 fuel filter can type, Serial Range: -2718490

1шт.

26

G49080

PLUG

- drain, A35735 fuel filter can type, Serial Range: -2718490

1шт.

30

A35668

FILTER

ELEMENT ASSY. - final (Order A51346), A35735 fuel filter can type, Includes: Ref.#31, Serial Range: -2718490

1шт.

27

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Drain plug (Replaces G46886 & A27891), A35735 fuel filter can type, Serial Range: -2718490

1шт.

31

G46895

GASKET

- A35735 fuel filter can type, Serial Range: -2718490

2шт.
