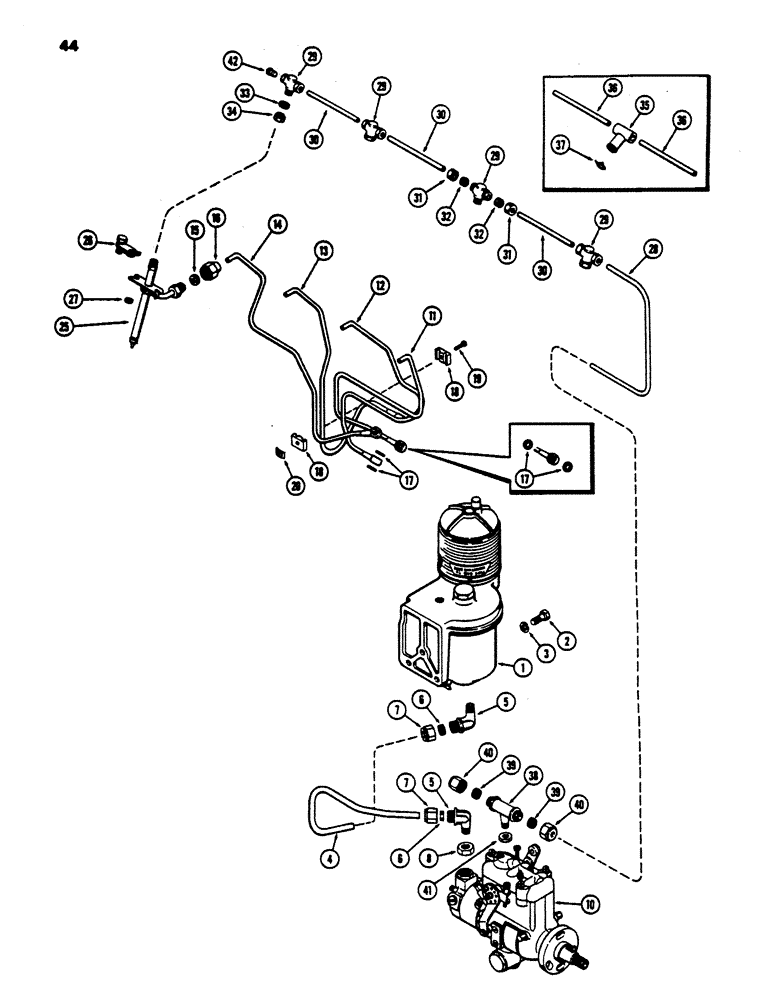

Запчасти Case 450 (044) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER ASSY. - fuel (Fig. 46)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

3

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

3шт.

4

A51784

TUBE

LINE - fuel filter to pump (Replaces A36566)

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY., Includes: Ref.#6 & 7

2шт.

6

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

8

A38161

LOCK NUT

- sealing type, 1/4" P.T. (at inj. pump)

1шт.

10

REF

INSTRUCTION

PUMP ASSY. - fuel injection (Fig. 48 & 50)

1шт.

11

A41391

TUBE

ASSY. - pump to #1 cyl. (Incl. Ref.#15, 16 & 17)

1шт.

12

A41392

TUBE

ASSY. - pump to #2 cyl. (Incl. Ref.# 15, 16 & 17)

1шт.

13

A41393

TUBE

ASSY. - pump to #3 cyl. (Incl. Ref.# 15, 16 & 17)

1шт.

14

A41394

TUBE

ASSY. - pump to #4 cyl. (Incl. Ref.# 15, 16 & 17), Includes: Ref.#15 - 17

1шт.

Ref 14 A41394 not illustrated properly the part pictured is a35061 see 310G crawler pg 40 for illustration of all tubes if customer requires tube which looks like picture.

1шт.

15

A37850

PIPE FITTING

SLEEVE - tube (at inj. nozzle)

1шт.

16

A37851

NUT

- tube (at inj. nozzle)

1шт.

17

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - screw connector (at inj. pump)

2шт.

18

A58709

BRACKET

CLAMP - fuel injection line

4шт.

19

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

BOLT - #10 x 1" rd. hd.

2шт.

20

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat Tinnerman

2шт.

25

REF

INSTRUCTION

NOZZLE ASSY. - injector (Fig. 52)

4шт.

26

A37837

CLAMP

ASSY. - injector nozzle

4шт.

27

A37839

SPACER

- nozzle clamp

4шт.

28

A51658

TUBE

- leak-off, inj. pump to tee (Replaces A38158)

1шт.

29

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off (metal)

4шт.

30

A38644

TUBE

- leak-off (3-7/8" long) (used w/A58960 tee)

3шт.

31

87017024

TUBE NUT,1/2"-24

NUT - leak-off tube (for 1/4" O.D. tube)

8шт.

32

222-102

SLEEVE,1/4" Tube

Leak-off tube 1/4" Tube

8шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- nozzle cap (rubber)(used w/A58961 nut)

4шт.

34

A58961

NUT

- nozzle (used w/A58960 tee)

4шт.

35

A37838

BOOT

- nozzle leak-off (nylon)(Order 3-A38644, 4-A58960, 4-A58961, 4-A58962, 8-222-102 & 8-222-112)

4шт.

36

A37840

TUBE

- leak-off, (4-3/16" long)(used w/A37838 boot)

3шт.

37

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - 9/16" x 1-1/16" (used w/A37838 boot)

4шт.

38

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - inj. pump leak-off, 1/4" tube, Includes: Ref.#39 & 40

1шт.

39

222-102

SLEEVE,1/4" Tube

1шт.

40

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

41

A38160

LOCK NUT

- sealing type, 1/8" P.T. (at inj. pump)

1шт.

42

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - leak-off tee, rear

1шт.
