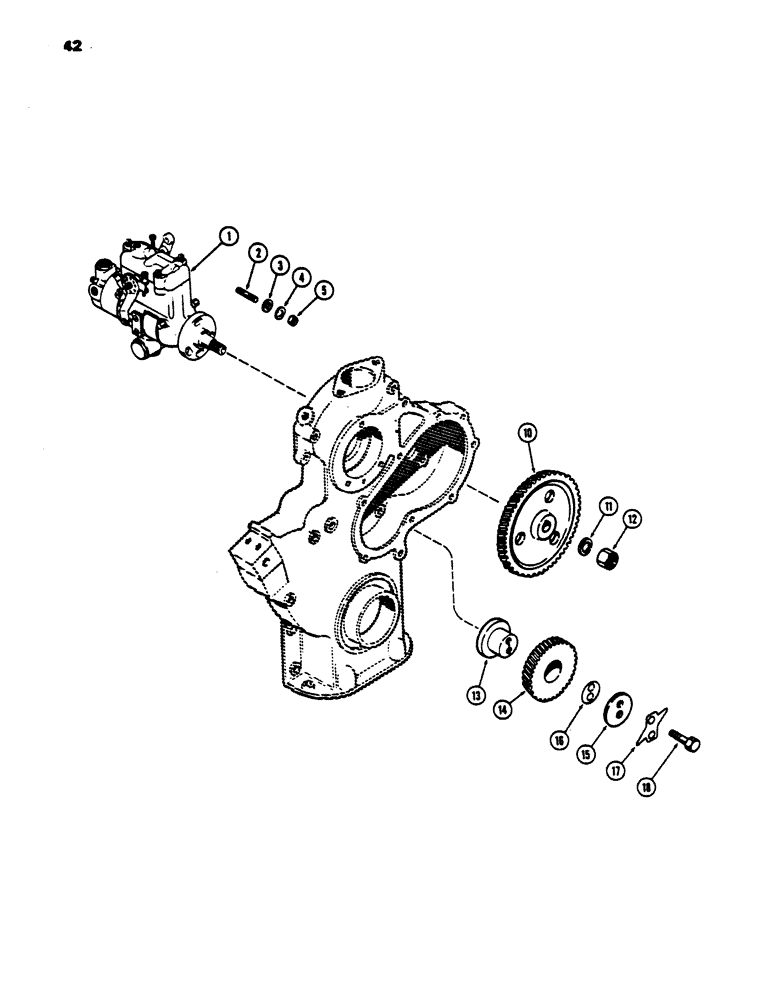

Запчасти Case 450 (042) - INJECTION PUMP DRIVE, (188) DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection (Fig. 48 & 50)

1шт.

2

G11204

STUD

- pump mtg. (3/8" N.C. x 1-7/16")

3шт.

3

A30043

WASHER

- pump mtg. stud (3/8 x 7/8 x 1/8")

3шт.

4

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

10

G2076

GEAR

- drive, injection pump

1шт.

11

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , Drive gear 9/16"

1шт.

12

25-159

JAM NUT,Jam, 9/16"-18, G5

- 9/16" N.F. hex. jam

1шт.

13

G11726

HUB

- idler gear

1шт.

14

G11852

GEAR

ASSY. - idler (Incl. bushing)

1шт.

15

G11732

PLATE

- thrust, idler gear

1шт.

16

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

17

G11746

PLATE

- lock, idler gear

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
