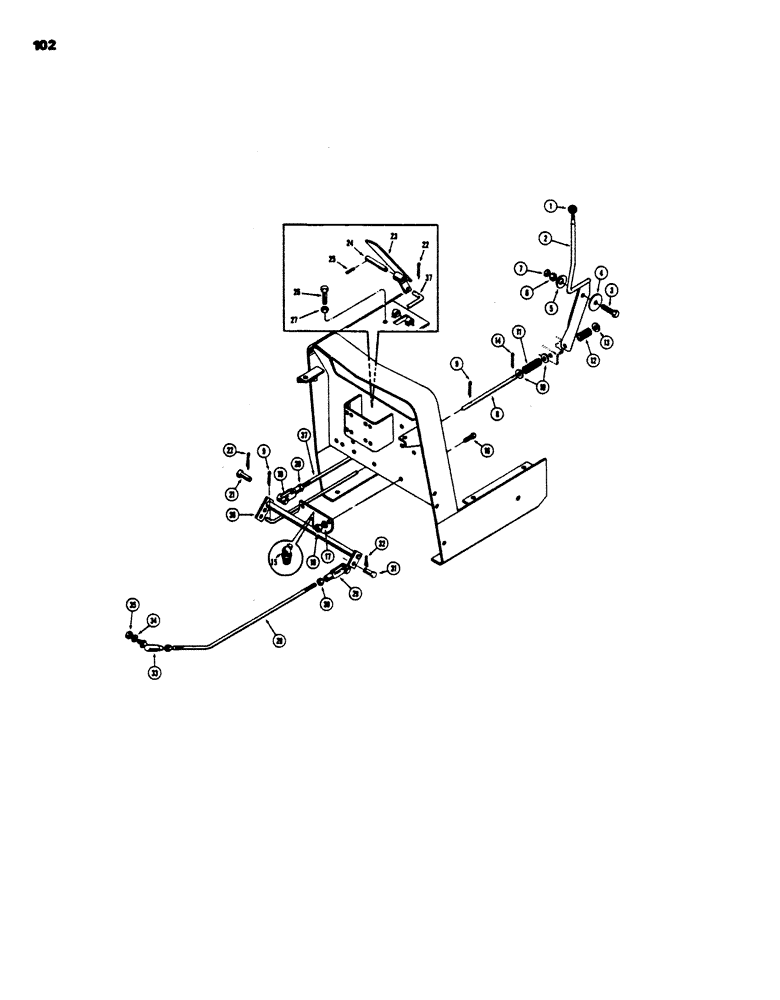

Запчасти Case 450 (102) - THROTTLE CONTROL LINKAGE (01) - ENGINE

1

70213

KNOB

- D35404 throttle (3/8" - 24 NF)

1шт.

1

D49996

KNOB

- D50237 throttle (1/2" - 20 NF)

1шт.

2

D35404

X

THROTTLE - hand (3/8" - 24 NF threads)

1шт.

2

D50237

LEVER

THROTTLE - hand (1/2" - 20 NF threads)

1шт.

3

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 20 NF x 1-3/4"

1шт.

4

R15071

DISC

- friction

1шт.

5

R14771

WASHER

- Belleville

1шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

1шт.

7

25-158

JAM NUT,Jam, 1/2"-20, G5

- hes., jam (1/2" - 20 NF)

1шт.

8

D35415

ROD

- control

1шт.

9

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- plain

2шт.

11

A8767

SPRING

- pedal return

1шт.

12

A7827

SPRING

- control rod

1шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- plain

1шт.

14

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

15

219-46

LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF

FITTING - grease, 67-1/2 degree (5/16" drive)

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

19

213-3

ADJUSTABLE CLEVIS,5/16"-24

ROD END - foot throttle rod (5/16")

1шт.

20

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

21

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

22

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

23

D35403

PEDAL

THROTTLE - foot

1шт.

24

R17364

SHAFT

- foot throttle retaining

1шт.

25

135-737

GROOVED PIN,5/32" x 1", Type E

PIN, GROOVED, , Foot throttle retaining shaft 5/32" x 1", Type E

1шт.

26

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

27

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, hex (1/2"-13 NC)

1шт.

28

D35400

ROD

- throttle

1шт.

29

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

ROD END - throttle rod

1шт.

30

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

2шт.

31

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis (1/4")

1шт.

32

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

33

A10329

BALL JOINT,1/4" - 28 x 1"

- adjustable

1шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

35

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

1шт.

36

D35402

LEVER

SHAFT - pivot, foot throttle

1шт.

37

D35399

ROD

- foot throttle

1шт.
