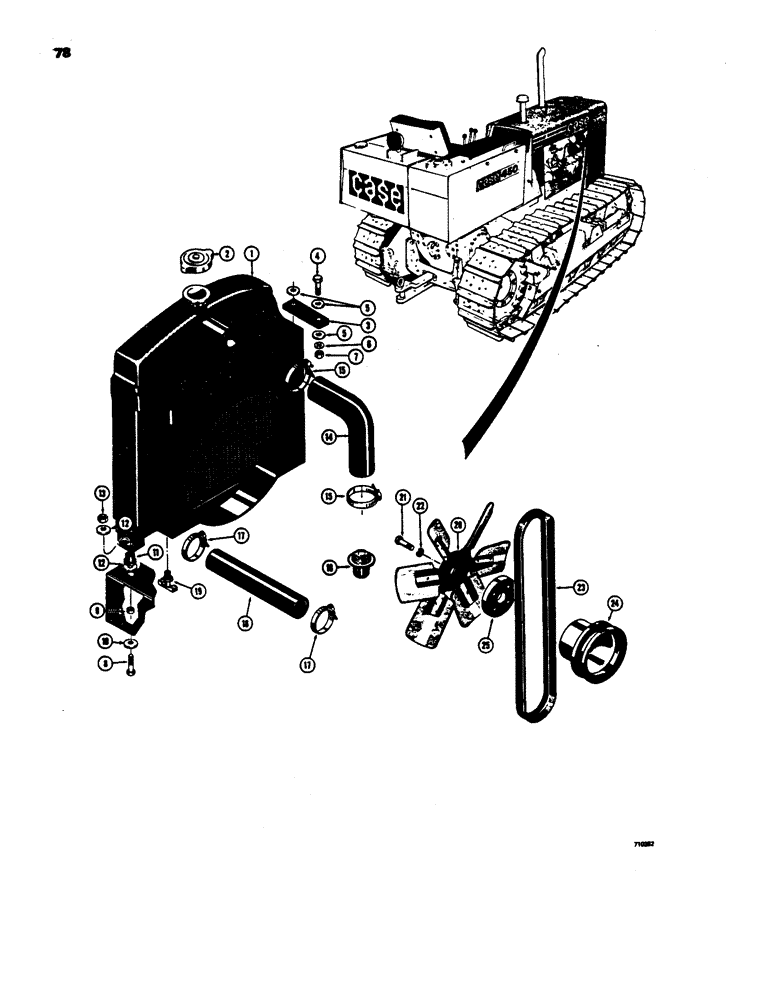

Запчасти Case 450 (078) - RADIATOR, FAN AND HOSES, USED TRACTOR S.N. 3045401 THRU 3051206 (01) - ENGINE

D52272

RADIATOR

ASSEMBLY - standard on all models, Includes: Ref.#1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR - cooling

1шт.

2

D25826

CAP

- radiator, 7 P.S.I.

1шт.

D52407

RADIATOR

ASSEMBLY - antisand blast, optional, Includes: Ref.#1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR - cooling

1шт.

2

D25826

CAP

- radiator, 7 P.S.I.

1шт.

3

D35108

STRAP

- mounting, radiator

2шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

HHCS - 5/8" - 16 NC x 1-1/4"

4шт.

5

195-28

WASHER,3/8"

- plain 3/8"

6шт.

6

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

7

131-179

LOCK NUT,3/8"-16, GA

NUT - lock, hex. (3/8" - 16 NC)

4шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

9

D52279

BUSHING

SPACER - mount

2шт.

10

D41740

WASHER

- special

2шт.

11

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT - vibration, rubber

2шт.

12

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- special

4шт.

13

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - hex., lock (3/8" - 16 NC)

2шт.

14

R24695

RADIATOR HOSE,2.00" ID x 9.00", SAE 20R4 Class SC or SAE 20R4

HOSE - radiator inlet

1шт.

15

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

16

A57641

THERMOSTAT

- cooling

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

18

NLS

NO LONGER SERVICED

- radiator, outlet (1-3/4" I.D. x 5-3/4" long)

1шт.

19

217-92

COCK

VALVE - drain

1шт.

20

D34717

FAN

- suction (Standard on all models except Loader Models - optional for Loader Models)

1шт.

20

D34718

FAN

- pusher (Standard on Loader Models, optional for all others)

1шт.

21

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

4шт.

22

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

23

R32782

BELT,0.50" W x 47.56" L

Fan 0.50" W x 47.56" L

1шт.

24

G11339

PULLEY

- water pump and fan

1шт.

25

A37191

BUSHING

SPACER - fan hub

1шт.
