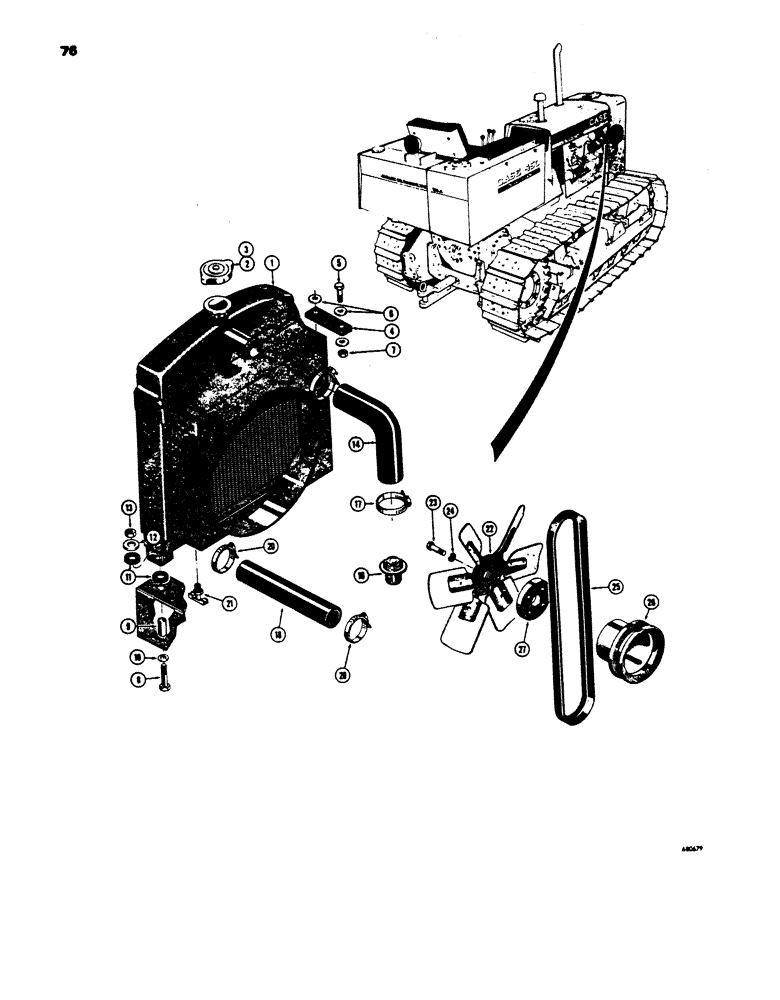

Запчасти Case 450 (076) - RADIATOR, FAN AND HOSES, USED BEFORE TRACTOR SN. 3045401 (01) - ENGINE

D48543

RADIATOR

ASSEMBLY - standard for all models (When stock is exhausted, use D52414 kit), Includes: Ref.#1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR

1шт.

2

D25826

CAP

- radiator, 7 P.S.I.

1шт.

D48552

RADIATOR

ASSEMBLY - antisand blast, optional (When stock is exhausted, use D52415 kit), Includes: Ref.#3

1шт.

NSS

NOT SOLD SEPARAT

RADIATOR - not illustrated

1шт.

3

D25826

CAP

- radiator, 7 P.S.I.

1шт.

4

D35108

STRAP

- radiator mounting

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

6

195-25

WASHER,3/8"

- flat () 3/8"

6шт.

7

131-179

LOCK NUT,3/8"-16, GA

NUT - lock, hex. (3/8" - 16 NC)

2шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

9

D40405

SPACER

2шт.

10

D41740

WASHER

- special

2шт.

11

D40406

MOUNTING PARTS

WASHER - vibration, rubber

4шт.

12

D41739

WASHER

- special

2шт.

13

131-179

LOCK NUT,3/8"-16, GA

NUT - lock, hex. (3/8" - 16 NC)

2шт.

14

D35111

LARGE HOSE

HOSE - radiator inlet

1шт.

16

A57641

THERMOSTAT

- diesel models only

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

18

D49499

- radiator outlet (Diesel models only)

1шт.

20

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

21

217-92

COCK

VALVE - drain

1шт.

22

D34717

FAN

- suction (Standard on all models except Loader Models - optional for Loader Models)

1шт.

D34718

FAN

- blower (Standard on Loader Models - optional for all other models)

1шт.

23

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

4шт.

24

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

25

R32782

BELT,0.50" W x 47.56" L

Fan 0.50" W x 47.56" L

1шт.

26

G11339

PULLEY

- water pump and fan

1шт.

27

A37191

BUSHING

SPACER - fan hub

1шт.

D51414

KIT - radiator, standard models, Includes: Ref.#1 & 11

1шт.

D52415

KIT

- radiator, anti-sand blast models, Includes: Ref.#1 & 11

1шт.

D52272

RADIATOR

ASSEMBLY - standard, Includes: Ref.#1 & 11, D52414 kit, D52415

1шт.

D52407

RADIATOR

ASSEMBLY - anti-sand blast, Includes: Ref.#1 & 11, D52415 kit, D52414

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR - D52415 and D52272 radiator assemblies, D52415

1шт.

2

D25826

CAP

- D52272 and D52407 radiator, 7 P.S.I., D524154 & D52415 kit

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

D52414 & D52415 radiator kit Hex, 3/8"-16 x 2", G5

2шт.

9

D52279

BUSHING

SPACER, D52414 & D52415 radiator

2шт.

10

D41740

WASHER

- special, D52414 & D52415 radiator

2шт.

11

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT - vibration (Not shown), D52414 & D52415 radiator

2шт.

12

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- special, D52414 & D52415 radiator, Includes: Ref.#13

4шт.

13

131-179

LOCK NUT,3/8"-16, GA

NUT - lock, hex. (3/8" - 16 NC), D52414 & D52415 radiator

2шт.
