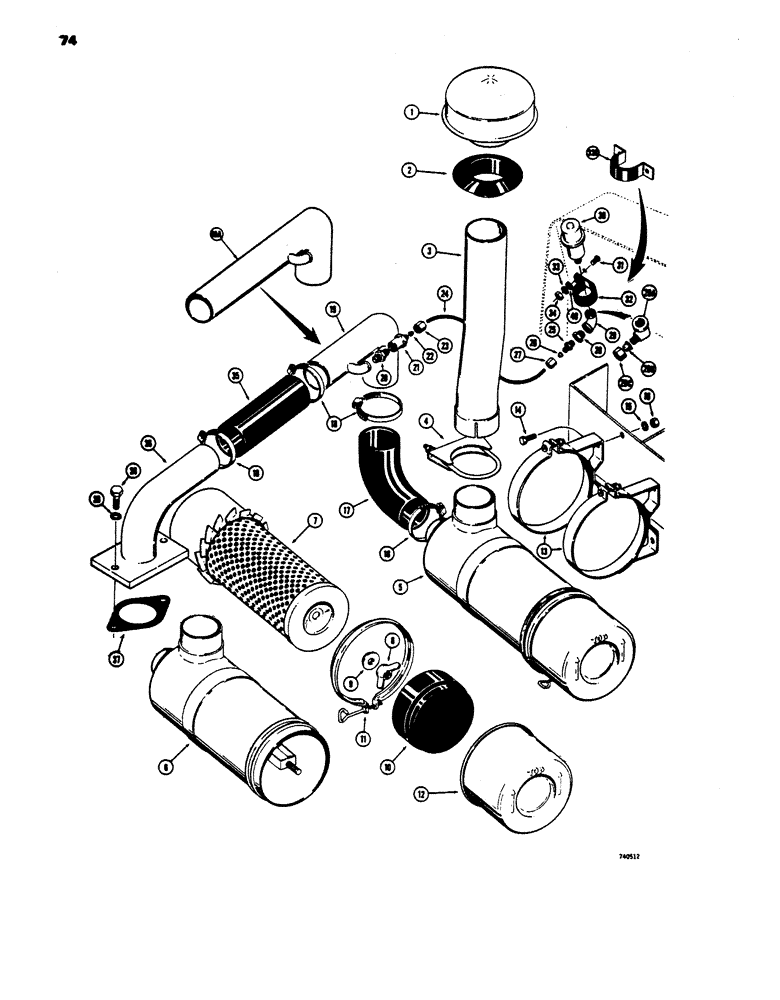

Запчасти Case 450 (074) - DRY TYPE AIR CLEANER (01) - ENGINE

1

A21433

CAP

- inlet, air cleaner

1шт.

2

R14780

GROMMET

- air cleaner stack

1шт.

Ref. 2, (2 1/16" I.D.)

1шт.

3

D43674

MUFFLER

STACK - air cleaner extension

1шт.

4

A13240

CLAMP,2-5/8" ID

- stack to air cleaner

1шт.

5

F84514

AIR CLEANER

- dry type, Includes: Ref.#6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

7

F84998

FILTER, ELEMENT

ELEMENT - air cleaner

1шт.

8

D37977

CAP

NUT - winged

1шт.

9

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

- wing nut

1шт.

10

F22312

BAFFLE

- air cleaner

11шт.

11

F84999

CLAMP,168.28mm

- air cleaner

1шт.

12

F91760

CUP

- air cleaner

1шт.

13

L11247

BAND

- air cleaner mounting

2шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

15

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

17

A14924

INTAKE AIR HOSE,57.20 mm ID x 88.90 mm, SAE 10R4 Class SC

715 - Elbow, 90 Degrees (1 with cast iron manifold, 2 with aluminum manifold) 57.20 mm ID x 88.90 mm, SAE 10R4 Class SC

1-2шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

19

D43666

TUBE

- air cleaner to cast iron manifold

1шт.

19a

R30384

TUBE - air cleaner to aluminum manifold

1шт.

20

D36264

FITTING

NIPPLE - filtered

1шт.

21

D35091

PIPE FITTING

CONNECTOR - special, female, Includes: Ref.#22 & 23

1шт.

22

D37176

SLEEVE

1шт.

23

D37362

TUBE NUT

1шт.

24

D35275

TUBE

- air cleaner to vacuum indicator

1шт.

25

D35816

CONNECTOR, ELEC

CONNECTOR - special, male, Includes: Ref.#26 & 27

1шт.

26

D37176

SLEEVE

1шт.

27

D37362

TUBE NUT

1шт.

28

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - reducer

1шт.

29

221-375

ELBOW

- 90 degree, female (If used), Includes: Ref.#29A - 29C

1шт.

29a

D45588

FITTING

ELBOW - 90 degree (If used), Includes: Ref. 29B and 29C

1шт.

29b

D37176

SLEEVE

- elbow

1шт.

29c

D37362

TUBE NUT

- elbow

1шт.

30

D47217

INDICATOR

- vacuum pressure

1шт.

30

D41011

INDICATOR

- vacuum pressure (When stock is exhausted, order D47217 indicator for service)

1шт.

Ref. 30 -D41011 filter indicator, air cleaner. Order P/N D47217.

1шт.

31

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

FHCS - 1/4" - 20 NC x 3/4"

1-2шт.

32

D45064

CLAMP,1 3/8", Insul, 1/4" Bolt

- indicator, early production

1шт.

32a

R33808

CLAMP

- indicator, late production

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

34

25-104

NUT,1/4"-20, G5

1-2шт.

35

A31130

HOSE,1.50" ID x 5.75", SAE 20R2 OR SAE 20R4

RADIATOR HOSE, , Air Cleaner to Cast Iron Manifold Only 1.50" ID x 5.75", SAE 20R2 OR SAE 20R4

1шт.

36

D43654

TUBE

- air cleaner to cast iron manifold only

1шт.

37

D22670

GASKET

-, Serial Range: tube-manifold

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

39

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

40

195-18

WASHER,1/4"

- plain (3/8") D45064 Clamp only

1шт.
