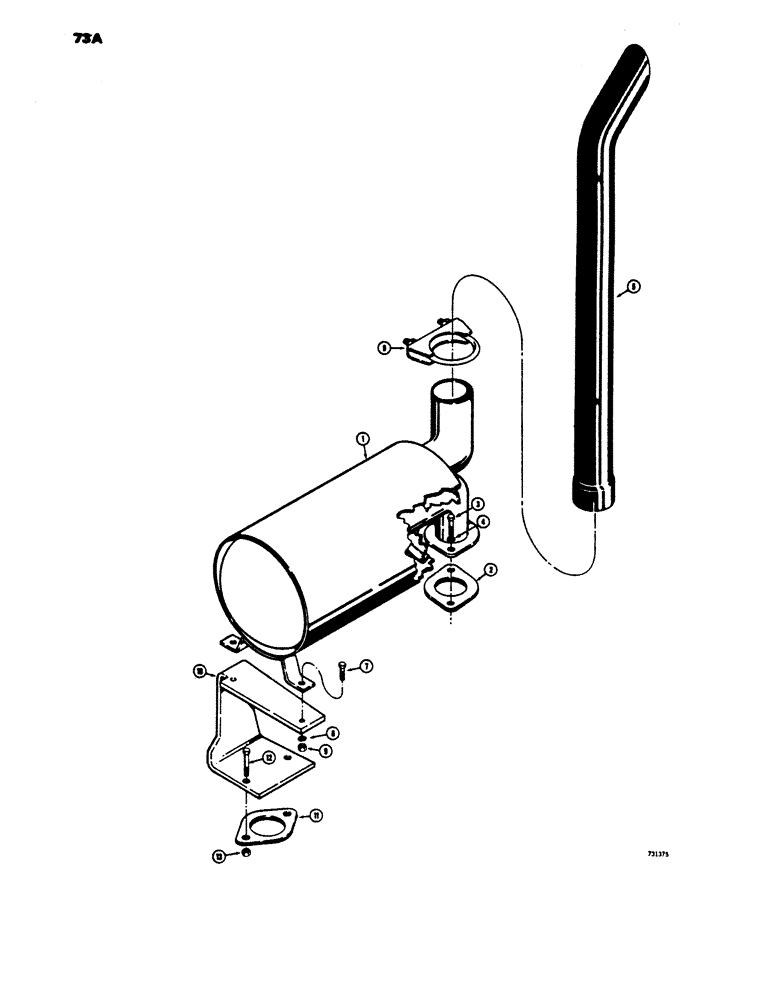

Запчасти Case 450 (073A) - MUFFLER - HORIZONTAL STYLE (01) - ENGINE

1

R25522

MUFFLER

- exhaust, horizontal

1шт.

2

G46853

MANIFOLD GASKET

- manifold outlet

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

5

D33503

PIPE

- exhaust

1шт.

6

A13240

CLAMP,2-5/8" ID

ASSEMBLY -, Serial Range: muffler-pipe

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

10

R34556

SUPPORT

BRACKET - muffler mounting

1шт.

11

G46853

MANIFOLD GASKET

-, Serial Range: manifold-bracket

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

13

131-903

NUT,3/8"-16

NUT - hex. (3/8" - 16 NC) Seez-Pruf

2шт.
