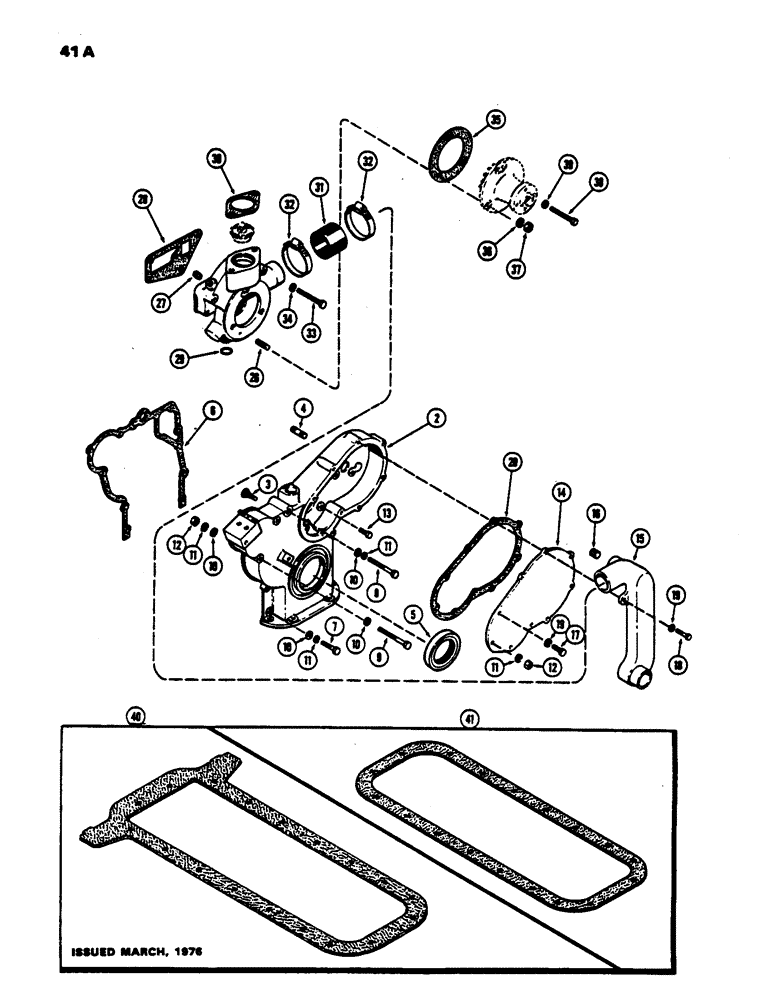

Запчасти Case 450 (041A) - A51890 CONVERSION KIT, (188) DIESEL ENGINE, TO CONVERT 1 PIECE COVER TO 2 PIECE COVER (01) - ENGINE

A51890

DUST VALVE

CONVERSION KIT - timing gear cover, Includes: Ref.#3 - 5

1шт.

2

A51734

COVER

ASSY. - timing gears

1шт.

3

A51649

STUD

- cover

2шт.

4

G11204

STUD

- inj. pump mtg. (3/8" N.C. x 1-7/16")

3шт.

5

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (2 x 3 x 1/2")

1шт.

6

A51529

GASKET

-, Serial Range: cover-block

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex

2шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex

3шт.

10

95-6

WASHER,3/8"

- 7/16 x 1 x 1/16"

1шт.

11

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

5шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

5шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

A51908

COVER

COVER - timing gears

1шт.

15

A51907

TUBE

- water passage

1шт.

16

221-843

PLUG,Hex Soc, 3/8"-18

- water passage tube (3/8" P.T., hex. sckt. hd.)

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

19

A50820

WASHER

- 3/8 x 3/4 x 1/8"

9шт.

20

A39925

GASKET

- timing gear cover

1шт.

25

A51888

BODY

ASSY. - water pump

1шт.

26

A29433

STUD

- pump (3/8" N.C. x 1")

2шт.

27

222-843

PLUG - 3/8" P.T., hex. sckt. hd

1шт.

28

A38084

GASKET,1.27mm Thk

- pump body to cyl. head

1шт.

29

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - body to cover (3/4 x 1 x 1/8")

1шт.

30

G46907

GASKET

- thermostat housing

1шт.

31

A7249

HOSE

- body to cover (2" I.D. x 1-3/4")

1шт.

32

204-260

CLAMP - hose, Serial Range: (1-3/16"-2-3/4")

2шт.

33

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex

2шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

35

A38083

GASKET

- water, Serial Range: pump-body

1шт.

36

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

38

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex

1шт.

39

A7085

WASHER

- 3/8 x 9/16 x 1/32" copper

1шт.

40

NSS

NOT SOLD SEPARAT

GASKET - (Used w/cast iron oil pan)(Order A43064)

1шт.

41

NSS

NOT SOLD SEPARAT

GASKET - (Used w/stamped oil pan)(Order A44758)

1шт.
