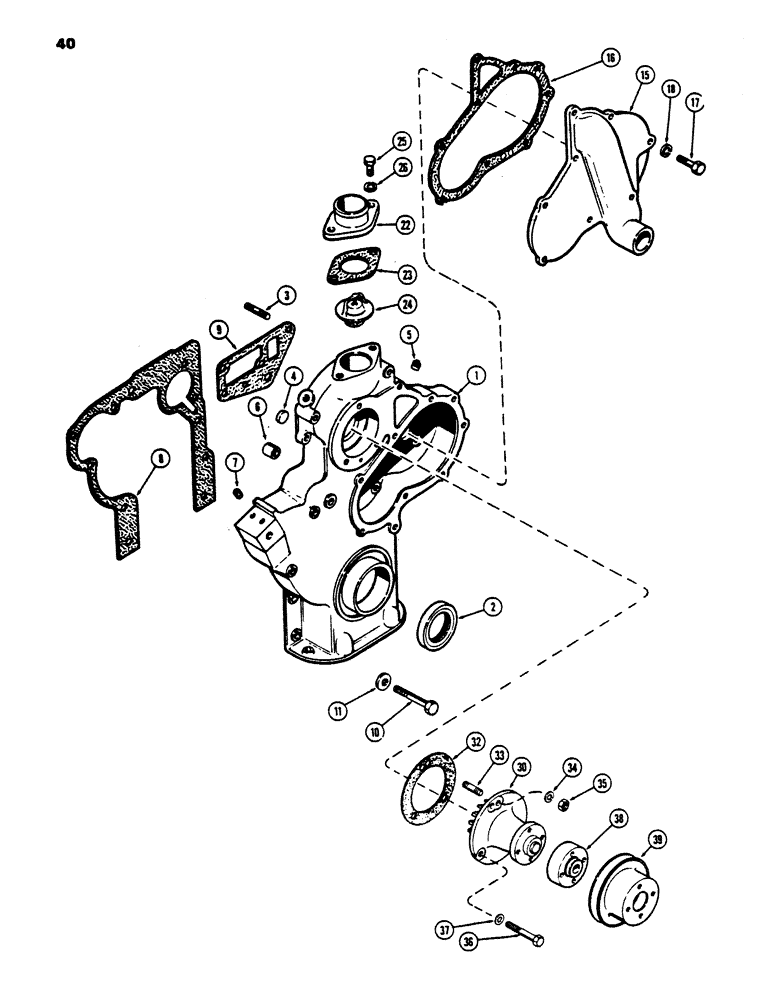

Запчасти Case 450 (040) - TIMING GEAR COVER AND THERMOSTAT, (188) DIESEL ENGINE, USED PRIOR TO ENG. S.N. 2728315 (01) - ENGINE

A39846

SPARE PART COVER ASSY. - timing gears (Replaces A38955) (Order conversion kit A51890) (Fig. 41A), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - timing gears

1шт.

2

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

SEAL - oil, crankshaft, front (2 x 3 x 1/2")

1шт.

3

G11204

STUD

STUD - inj. pump mtg. (3/8" N.C. x 1-7/16")

3шт.

4

A58620

PLUG,Cup, 3/4", Stainless

PLUG - water cooler hole (3/4" cup type)

1шт.

5

221-1022

PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - heater holse (3/8" P.T., hex. sckt. hd.)

2шт.

6

A29442

RING

DOWEL - cover to block (9/16 x 3/8 x 5/8")

2шт.

7

178-821

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - cover plug (3/8" x 3/8" N.C. sckt. hd.)

2шт.

8

A38228

GASKET

GASKET -, Serial Range: cover-block

1шт.

9

A38084

GASKET,1.27mm Thk

GASKET -, Serial Range: cover-head

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, , Cover Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - cover (3/8 x 1-1/2" N.C. hex.)

3шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Cover Hex, 3/8"-16 x 2", G5

1шт.

10

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - cover (3/8 x 2-3/4" N.C. hex.)

3шт.

10

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT - (3/8 x 3" N.C. hex.)

1шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - cover (3/8 x 3-1/4" N.C. hex.)

3шт.

11

95-6

WASHER,3/8"

WASHER - (7/16 x 1 x 5/64")

2шт.

15

G2077

COVER ASSY

COVER - drive gear

1шт.

16

G46859

GASKET

GASKET - gear cover

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Cover Hex, 3/8"-16 x 2", G5

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Cover Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

18

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

9шт.

22

G2144

FITTING

CONNECTION - water outlet

1шт.

23

G46907

GASKET

GASKET - water outlet connection

1шт.

24

A57641

THERMOSTAT

THERMOSTAT - (180 degree)

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Connection Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

30

A146584

PUMP, WATER

PUMP ASSY. - water (Replaces A37758, A39074), Includes: Ref.#32

1шт.

30

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

30

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assy

1шт.

30

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

30

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

30

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

32

A38083

GASKET

GASKET - pump to cover, water

1шт.

33

A29433

STUD

STUD - 3/8" N.C. x 1", water pump

2шт.

34

92-6

LOCK WASHER,3/8"

WASHER - lock, , water pump 3/8"

2шт.

35

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex, water pump

2шт.

36

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex, water pump

1шт.

37

A22317

WASHER

WASHER - 1/8 x 3/8 x 1/16" copper, water pump

1шт.

38

A37191

BUSHING

SPACER - fan hub, water pump

1шт.

39

G11339

PULLEY

PULLEY - drive, water pump

1шт.
