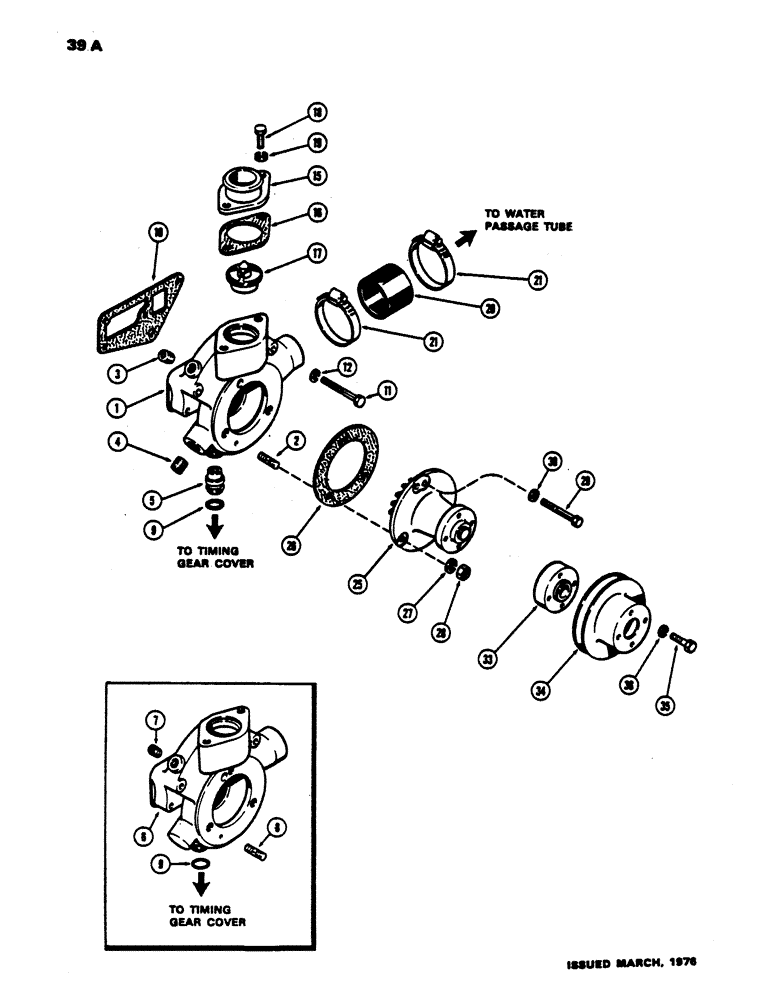

Запчасти Case 450 (039A) - WATER PUMP AND THERMOSTAT, (188) DIESEL ENGINE, 1ST USED ENG. S.N. 2728315 (01) - ENGINE

1

A144054

BODY

BODY ASSY. - water pump (w/seperate fitting) (1st used eng. ser. no. 2801835), Includes: Ref.#2 - 5

1шт.

2

A29433

STUD

STUD - body (3/8" N.C. x 1")

2шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - body (3/8" P.T., sckt. hd.)

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

PLUG - body (1/2" P.T., sckt. hd.)

1шт.

5

A142823

FITTING

FITTING - water inlet

1шт.

6

A51735

BODY

BODY ASSY. - water pump (w/attached fitting) Includes: Ref.#7 & 8, Serial Range: -2801835

1шт.

7

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - body (3/8" P.T., sckt. hd.)

1шт.

8

A29433

STUD

STUD - water pump (3/8" N.C. x 1")

2шт.

9

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - fitting to cover (3/4 x 1 x 1/8")

1шт.

10

A38084

GASKET,1.27mm Thk

GASKET - pump body to cylinder head

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Body to cyl. head Hex, 3/8"-16 x 2", G5

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - body to cyl. head (3/8 x 2-3/4" N.C. hex.)

2шт.

12

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

15

G2144

FITTING

HOUSING - thermostat & water outlet

1шт.

16

G46907

GASKET

GASKET -, Serial Range: housing-body

1шт.

17

A57641

THERMOSTAT

THERMOSTAT - (180 degree)

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Housing Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

20

A7249

HOSE

HOSE - body to cover (2" I.D. x 2") (Replaces G46157)

1шт.

21

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

2шт.

25

A146584

PUMP, WATER

PUMP ASSY. - water (Replaces A39074), Includes: Ref.#26

1шт.

25

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

25

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assy

1шт.

25

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

25

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

25

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

26

A38083

GASKET

GASKET -, Serial Range: pump-body

1шт.

27

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

2шт.

29

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - (3/8 x 2-3/4" N.C. hex.)

1шт.

30

A22317

WASHER

WASHER - (3/8 x 11/16 x 1/16" copper)

1шт.

33

A37191

BUSHING

SPACER - fan hub

1шт.

34

G11339

PULLEY

PULLEY - drive

1шт.

35

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - pulley (5/16 x 1-1/4" N.C. hex.)

2шт.

36

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.
