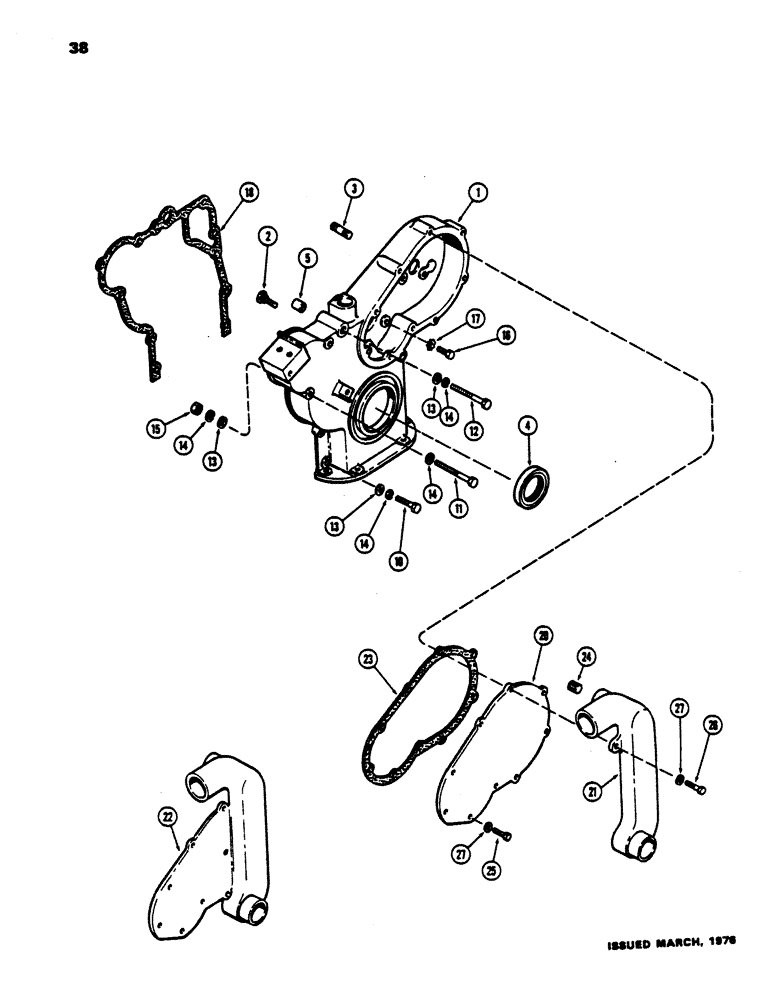

Запчасти Case 450 (038) - TIMING GEAR COVER, (188) DIESEL ENGINE, 1ST USED ENG. S.N. 2728315 (01) - ENGINE

1

A51981

COVER

ASSY. - timing gear (Rpl. A51123 & A51734), Includes: Ref. 2 - 4

1шт.

2

A51649

STUD

- cover

2шт.

3

G11204

STUD

- injection pump (3/8" N.C. x 1-7/16")

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (2 x 3 x 1/2")

1шт.

5

A29442

RING

DOWEL - cover locating (9/16 x 3/8 x 5/8")

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/2" N.C. hex)

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- cover (3/8 x 2-3/4" N.C. hex.)

1шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- cover (3/8 x 3" N.C. hex.)

1шт.

12

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- cover (3/8 x 3-1/4" N.C. hex.)

3шт.

13

A50820

WASHER

- 3/8 x 3/4 x 1/8"

11шт.

13

95-6

WASHER,3/8"

- 3/8 x 1 x 1/16"

1шт.

14

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

16

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

17

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

18

A51529

GASKET

-, Serial Range: cover-block

1шт.

20

A51908

COVER

COVER - injection pump drive gears (Req. seperate water passage tube) (Ref. 21 & 22)

1шт.

21

A51907

TUBE

- water passage (Used w/A51908 cover)

1шт.

22

A51765

CLIP

COVER - inj. pump drive gear, w/water passage tube (Changed from case iron to aluminum at eng. ser. no. 2731067) (Replaces A39911)

1шт.

23

A39925

GASKET

- cover gear to timing gear

1шт.

24

221-843

PLUG,Hex Soc, 3/8"-18

- water passage tube (3/8" P.T., sckt. hd.)

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

2шт.

27

A50820

WASHER

- (3/8 x 3/4 x 1/8")(Used w/aluminum cover)

9шт.

27

92-6

LOCK WASHER,3/8"

WASHER - lock, , used w/cast iron cover 3/8"

9шт.
