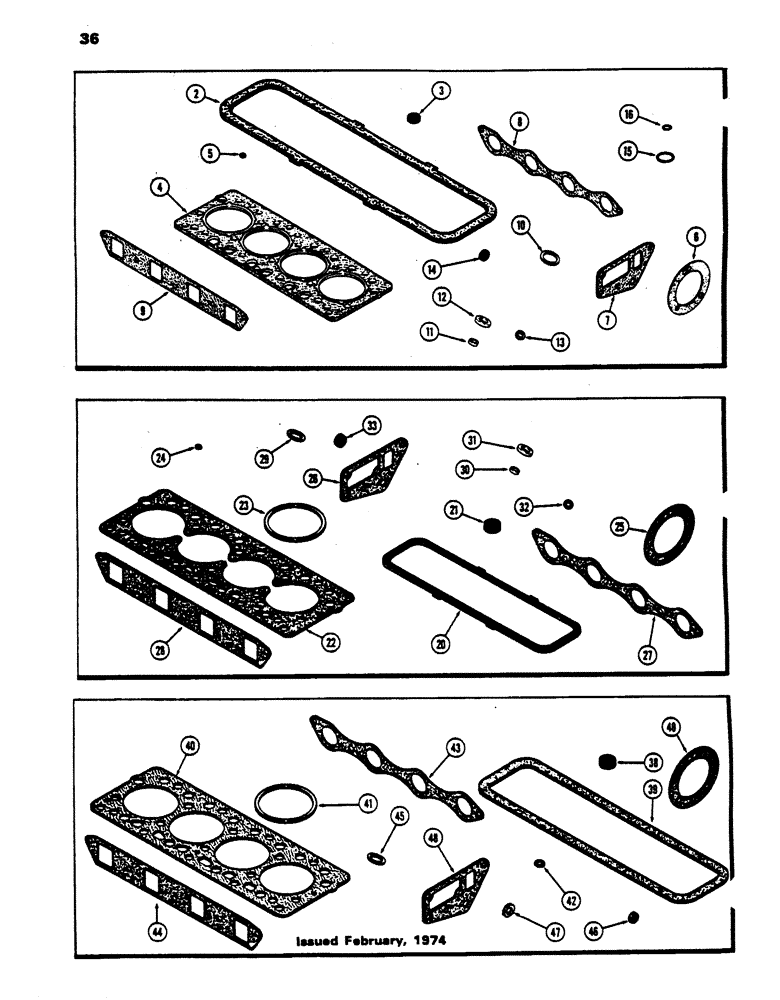

Запчасти Case 450 (036) - VALVE GRIND GASKET KIT, (188) DIESEL ENGINE, 1ST USED ENG. S.N. 2711005 (01) - ENGINE

A43193

GASKET

KIT - valve grind (Replaces A43069), Includes: Ref.#2 - 16

1шт.

2

A43030

GASKET,3.05mm Thk

- valve cover

1шт.

3

A142098

GROMMET

- valve cover (rubber)(Rpl. G46867)

2шт.

4

A39279

GASKET

- cylinder head

1шт.

5

G46851

SEAL

- valve stem (rubber)

8шт.

6

A38083

GASKET

- water pump

1шт.

7

A38084

GASKET,1.27mm Thk

- timing gear cover (upper)

1шт.

8

G46872

MANIFOLD GASKET

- manifold, exhaust

1шт.

9

G46871

GASKET

- manifold, intake

1шт.

10

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - fuel inj., Serial Range: lines-pump

8шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injection nozzles

4шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injection nozzles seat

4шт.

13

G49068

GASKET

- inj. nozzle seat (not used w/pencil inj.)

4шт.

14

222-101

SLEEVE,3/16" Tube

- 3/16" O.D. (not used w/pencil inj.)

4шт.

14

222-103

SLEEVE,5/16" Tube

" (Not used w/pencil inj.) 5/16" Tube

4шт.

15

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - water pump body (3/4 x 1 x 1/8")

1шт.

16

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - aluminum manifold (3/8 x 9/16 x 3/32")

3шт.

A42001

GASKET

KIT - valve grind (Order A43193), includes: Ref.#20 - 33, Serial Range: 2656844-2711005

1шт.

20

A43030

GASKET,3.05mm Thk

- valve cover (Replaces G46866), Serial Range: 2656844-2711005

1шт.

21

G46867

GROMMET

- valve cover (rubber) (Order A142098), Serial Range: 2656844-2711005

2шт.

22

13490891C1

- cylinder head (Order A39279), Serial Range: 2656844-2711005

1шт.

23

A38639

RING

- fire, cyl. head gasket (std.) (Used w/A38640), Serial Range: 2656844-2711005

4шт.

24

G46851

SEAL

- valve stem (rubber), Serial Range: 2656844-2711005

8шт.

25

A38083

GASKET

- water pump, Serial Range: 2656844-2711005

1шт.

26

A38084

GASKET,1.27mm Thk

- timing gear cover (upper), Serial Range: 2656844-2711005

1шт.

27

G46872

MANIFOLD GASKET

- manifold, exhaust, Serial Range: 2656844-2711005

1шт.

28

G46871

GASKET

- manifold, intake, Serial Range: 2656844-2711005

1шт.

29

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - fuel injection lines to pump, Serial Range: 2656844-2711005

8шт.

30

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, inj. nozzle, Serial Range: 2656844-2711005

4шт.

31

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injection nozzle seat, Serial Range: 2656844-2711005

4шт.

32

G49068

GASKET

- inj. seat (not used w/pencil inj.), Serial Range: 2656844-2711005

4шт.

33

222-101

SLEEVE,3/16" Tube

- 3/16" O.D. (not used w/pencil inj.), Serial Range: 2656844-2711005

4шт.

33

222-103

SLEEVE,5/16" Tube

" (Not used w/pencil inj.) 5/16" Tube, Serial Range: 2656844-2711005

4шт.

A41425

GASKET

- valve grind, Includes: Ref.#38 - 49, Serial Range: -2656844

1шт.

38

G46867

GROMMET

- valve cover (rubber) (Order A142098), Serial Range: -2656844

2шт.

39

G46866

GASKET

- valve cover, Serial Range: -2656844

1шт.

40

A36877

GASKET

- head to block, Serial Range: -2656844

1шт.

41

A36900

RING, PISTON

RING - fire (orange coded) (Std.) (Used w/A36877), Serial Range: -2656844

4шт.

42

G46851

SEAL

- rubber, valve stem, Serial Range: -2656844

8шт.

43

G46872

MANIFOLD GASKET

- exhaust manifold, Serial Range: -2656844

1шт.

44

G46871

GASKET

- intake manifold, Serial Range: -2656844

1шт.

45

G49068

GASKET

- seat, fuel injector, Serial Range: -2686844

4шт.

46

222-101

SLEEVE,3/16" Tube

- fuel line, for 3/16" tube, Serial Range: -2656844

4шт.

46

222-103

SLEEVE,5/16" Tube

Fuel line 5/16" Tube, Serial Range: -2656844

4шт.

47

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection tube to pump, Serial Range: -2656844

8шт.

48

A38084

GASKET,1.27mm Thk

- timing gear cover (upper), Serial Range: -2656844

1шт.

49

A38083

GASKET

- water pump, Serial Range: -2656844

1шт.
