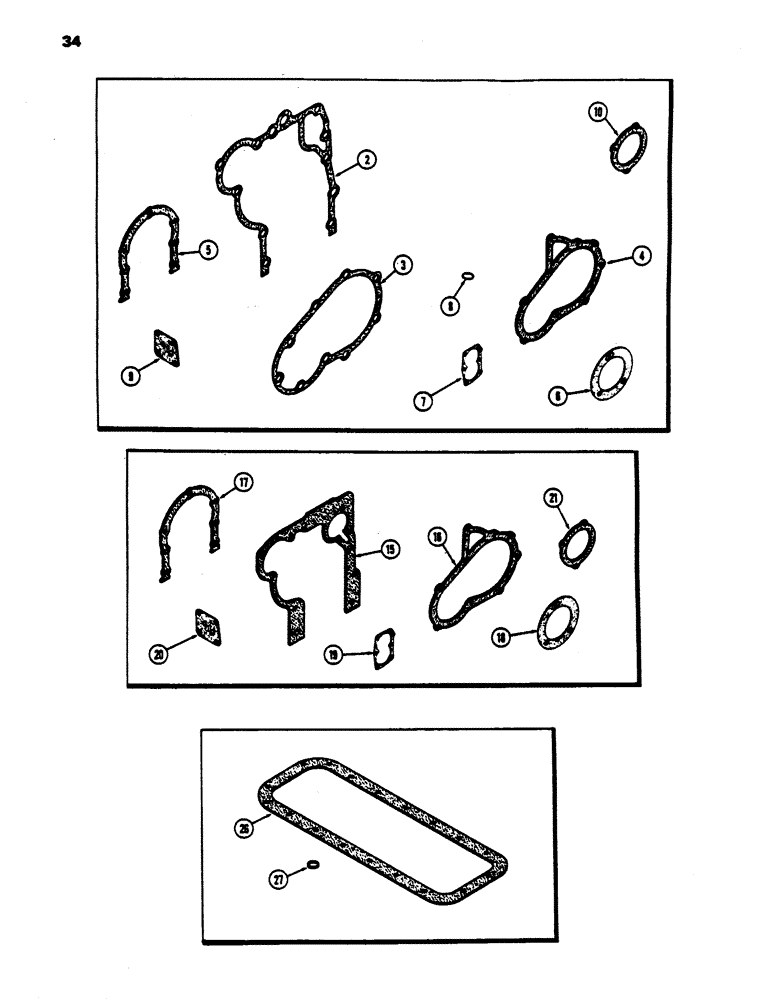

Запчасти Case 450 (034) - CYLINDER BLOCK GASKET KIT, (188) DIESEL ENGINE, 1ST USED ENG ENG. S.N. 2728315 (01) - ENGINE

A43198

GASKET

KIT - cylinder block, Includes: Ref.#2 - 10

1шт.

2

A51529

GASKET

- timing gear cover

1шт.

3

A39925

GASKET

- inj. pump drive cover (Fig. 38)

1шт.

4

G46859

GASKET

- inj. pump drive cover (Fig. 40)

1шт.

5

A39188

GASKET

- rear oil seal retainer

1шт.

6

A38083

GASKET

- water pump

1шт.

7

G46852

GASKET

- oil pump cover

1шт.

8

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - water pump body to cover (3/4 x 1 x 1/8")

1шт.

9

G46854

GASKET

- oil filter mtg. brkt. (not used this application)

1шт.

10

A30042

GASKET

- gen. mtg. brkt. (not used this application)

1шт.

A41426

KIT

GASKET KIT - cylinder block (Order A43198), Includes: Ref.#15 - 21, Serial Range: -2728315

1шт.

15

A38228

GASKET

- timing gear cove, Serial Range: -2728315

1шт.

16

G46859

GASKET

- inj. pump drive cover, Serial Range: -2728315

1шт.

17

A39188

GASKET

- rear oil seal retainer, Serial Range: -2728315

1шт.

18

A38083

GASKET

- water pump, Serial Range: -2728315

1шт.

19

G46852

GASKET

- oil pump cover, Serial Range: -2723815

1шт.

20

G46854

GASKET

- oil filter mtg. brkt. (not used this application), Serial Range: -2723815

1шт.

21

A30042

GASKET

- gen. mtg. brkt. (not used this application), Serial Range: -2723815

1шт.

A44758

GASKET

KIT - oil pan (Replaces A40712), Includes: Ref.#26 & 27, Serial Range: -2723815

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET - oil pan, kit

1шт.

27

A58608

GASKET

- drain plug (3/4 x 1 x 1/16" nylon), oil pan kit

1шт.

27

A34827

GASKET

- drain plug (7/8 x 1-1/8 x 3/64" copper), oil pan kit

1шт.
