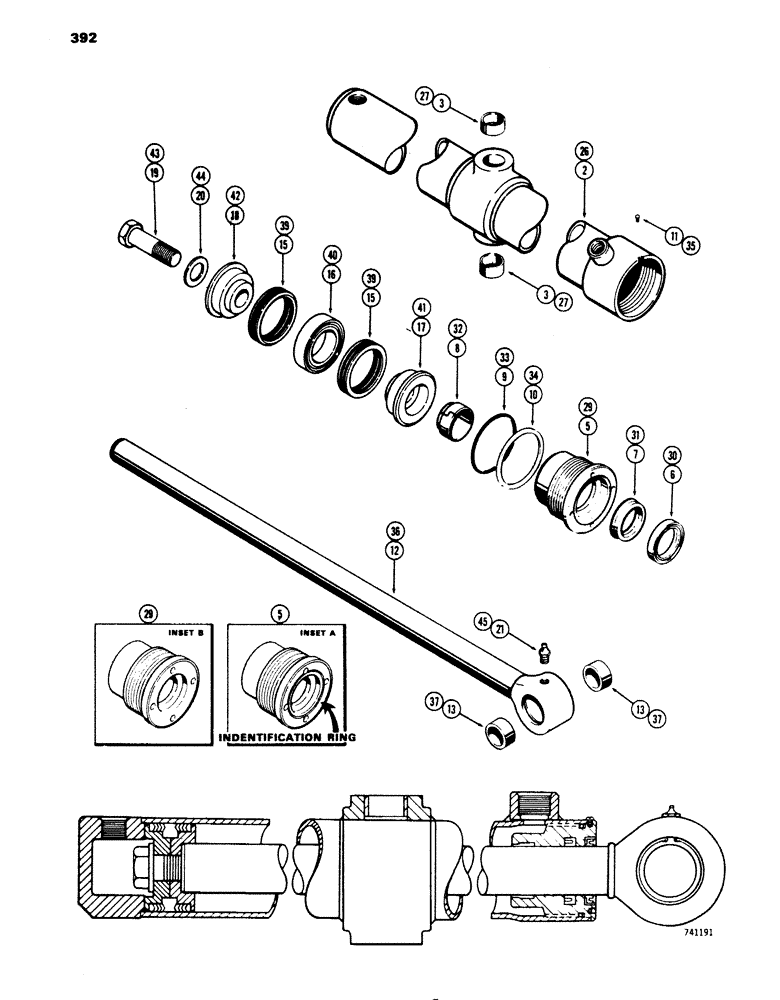

Запчасти Case 450 (392) - G33466 RIPPER CYLINDER, GLAND HAS IDENTIFICATION RING (07) - HYDRAULIC SYSTEM

1

G33466

HYDRAULIC CYLINDER

CYLINDER - ripper, 3" dia. x 10-1/2" stroke (Not shown), Includes: Ref.#2 - 21

1шт.

2

D35123

TUBE

ASSY. - cylinder body, Includes: Ref.#3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunnions

2шт.

4

G33485

GLAND

ASSEMBLY - cylinder (Not shown), Includes: Ref.#5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring)(See Inset A)

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of seal kit P/N G32292

1шт.

7

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of seal kit P/N G32292

1шт.

8

D27706

WIPER SEAL

WIPER - piston rod, inner (split type)

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit P/N G32292

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G32292

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33467

ROD

ASSY. - piston (1-1/2" dia.)(w/identification ring), Includes: Ref.#13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

14

G33151

PACKING

ASSEMBLY - piston (Not shown), Includes: Ref. #15 & 16

1шт.

Part of seal kit P/N G32292

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type)

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

G33150

PISTON

- split (rod end)(w/identification ring)

1шт.

18

D28366

PISTON

- split (bolt end)

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

G32292

KIT

SEAL KIT - cylinder repair, Includes Refs.#s 6, 7, 8, 9, 10, 14, 30, 31, 32, 33, 34 and 38

1шт.

25

G32468

CYLINDER

- 3" dia. x 10-1/2" stroke (Not shown), G32468 ripper cylinder gland has solid outer rod wiper - no id ring, Includes: Ref.#26 -45

1шт.

26

D35123

TUBE

ASSY. - body, G32468 ripper cylinder gland has solid outer rod wiper - no id ring, Includes: Ref.#27

1шт.

27

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube trunnion

2шт.

28

G32734

GLAND

ASSEMBLY - (Not shown), G32468 ripper cylinder gland has solid outer rod wiper - no id ring, Includes: Ref.#29 - 34

1шт.

29

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring)(See Inset B), G32468 ripper cylinder gland has solid outer rod wiper

1шт.

30

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16"), G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of seal kit P/N G32292

1шт.

31

D36969

CUP

SEAL - piston rod (1-/2 x 2 x 7/16"), G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of seal kit P/N G32292

1шт.

32

D27706

WIPER SEAL

WIPER - piston inner (split type), G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of seal kit P/N G32292

1шт.

33

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - (3 x 3-1/4 x 1/8"), G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of seal kit P/N G32292

1шт.

34

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

"O" ring back-up, G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

Part of seal kit P/N G32292

1шт.

35

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

36

D32143

EYE

ROD ASSY. - piston (1-1/2" dia.)(w/o identification ring), G32468 ripper cylinder gland has solid outer rod wiper, Includes: Ref.#37

1шт.

37

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod, G32468 ripper cylinder gland has solid outer rod wiper - no id ring

2шт.

38

G33151

PACKING

ASSEMBLY - piston (Not shown), G32468 ripper cylinder gland has solid outer rod wiper - no id ring, Includes: Ref.#39 & 40

1шт.

Part of seal kit P/N G32292

1шт.

39

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type), G32468 ripper cylinder gland has solid outer rod wiper - no id ring

2шт.

40

NSS

NOT SOLD SEPARAT

RING - center bearing, G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

41

D28365

PISTON

- split (rod end)(w/o identification ring), G32468 ripper cylinder gland has solid outer rod wiper

1шт.

42

D28366

PISTON

- split (bolt end), G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

43

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.), G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

44

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64"), G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.

G32292

KIT

SEAL KIT - cylinder repair, Includes Refs. 6, 7, 8, 9, 10, 14, 30, 31, 32, 33, 34 and 38, G32468 ripper cylinder gland has solid outer rod wiper - no id ring

1шт.
