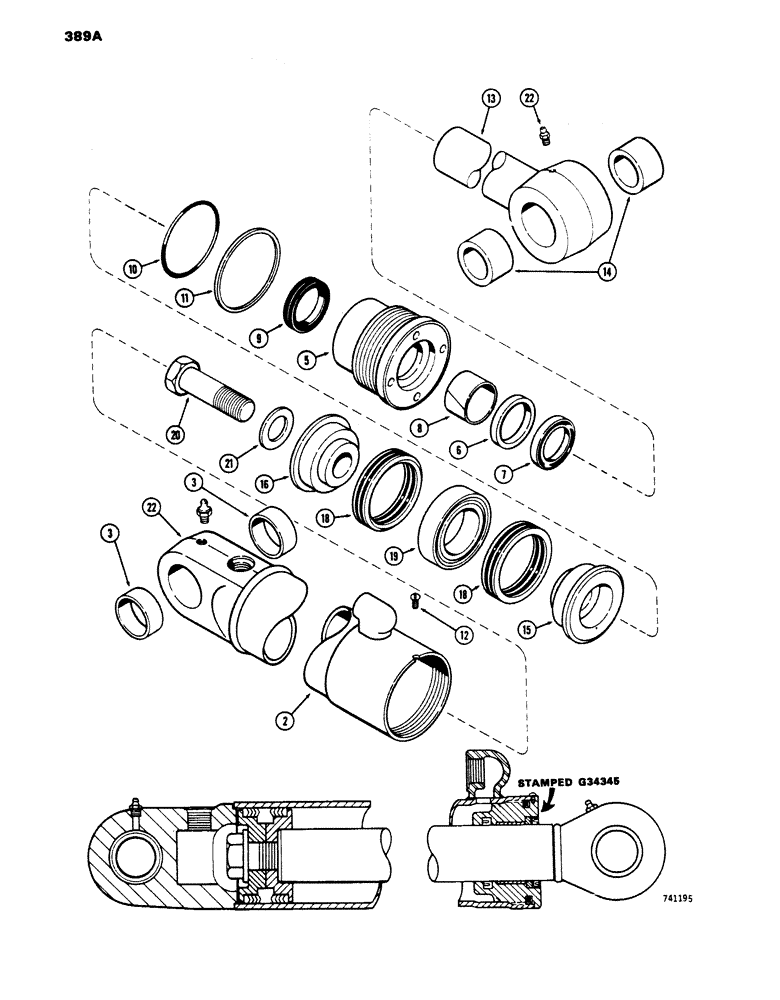

Запчасти Case 450 (389A) - G34345 TILT CYLINDER - ANGLE TILT DOZER, GLAND IS STAMPED W/CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
G34345
HYDRAULIC CYLINDER
CYLINDER - tilt, 3-1/2" dia. x 8" stroke (Not shown), Includes: Ref.#2 - 22
1шт.
2
G34411
TUBE,16.93" L
ASSY. - cylinder body, Includes: Ref.#3
1шт.
3
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- tube
2шт.
G34629
GLAND
ASSY. - (hand stamp for identification), Includes: Ref.#5 - 11
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND
1шт.
6
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
7
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer (2 x 2-1/2 x 5/16")
1шт.
Part of seal kit P/N G34648
1шт.
8
G34322
BEARING
- center
1шт.
Part of seal kit P/N G34648
1шт.
9
D36971
RING
SEAL - piston rod (2 x 2-1/2 x 7/16")
1шт.
Part of seal kit P/N G34648
1шт.
10
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
"O" RING - gland 93-1/2 x 3-3/4 x 1/8")
1шт.
Part of seal kit P/N G34648
1шт.
11
G32126
BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk
- gland "O" ring back-up
1шт.
Part of seal kit P/N G34648
1шт.
12
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8-32 x 1/4" self tapping)
1шт.
13
G34409
ROD ASSY.
- piston (2" dia.), Includes: Ref.#14
1шт.
14
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- piston rod
2шт.
15
G33167
PISTON
- split (rod end)
1шт.
16
D28367
PISTON
- split (bolt end)
1шт.
G33237
PACKING
ASSY. - piston, Includes: Ref.#18 & 19
1шт.
Part of seal kit P/N G34648
1шт.
18
NSS
NOT SOLD SEPARAT
PACKING ASSY. - "V" type
2шт.
19
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
20
28-1640
BOLT,Hex, 1" - 14 x 2-1/2", Gr 8
Piston Hex, 1"-14 x 2 1/2", G8, Full Thd
1шт.
21
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- piston bolt (1-1/8 x 1-7/8 x 1/8")
1шт.
22
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T. str.)
2шт.
G34648
SEAL
KIT - cylinder repair, Includes Refs. 7, 8, 9, 10, 11 and G33237
1шт.
