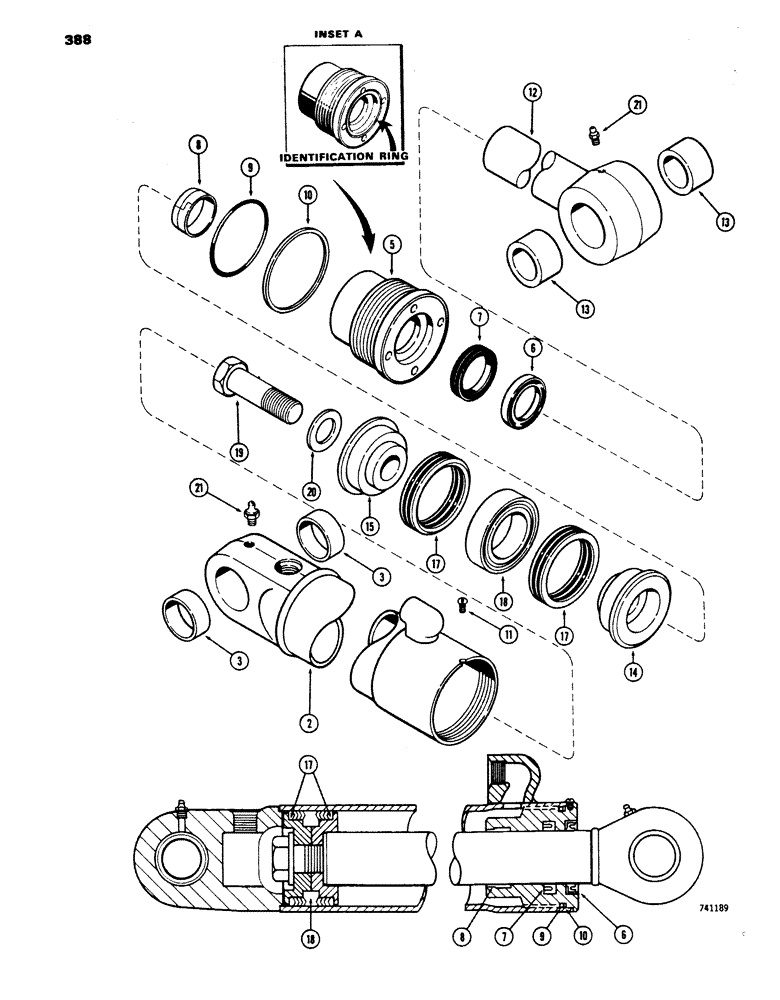

Запчасти Case 450 (388) - G34345 TILT CYLINDER - ANGLE TILT DOZER, GLAND HAS I.D. RING, ROD & TUBE HAVE PRESS-IN BUSHINGS (07) - HYDRAULIC SYSTEM

1

G34345

HYDRAULIC CYLINDER

CYLINDER - tilt, 3-1/2" dia. x 8" stroke (Not shown), Includes: Ref.#2 - 21

1шт.

2

G34411

TUBE,16.93" L

ASSY. - cylinder body, Includes: Ref.#3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

G33639

GLAND

ASSY. - Includes: Ref.#5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring)

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of seal kit P/N G32290

1шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of seal kit P/N G32290

1шт.

8

D27380

SCRAPER RING

WIPER - piston rod, inner (split type)

1шт.

Part of seal kit P/N G32290

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit P/N G32290

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G32290

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G34409

ROD ASSY.

- piston (2" dia.) (w/identification ring), Includes: Ref.# 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

14

G33167

PISTON

- split (rod end) (w/identification ring)

1шт.

15

D28367

PISTON

- split (bolt end)

1шт.

G33237

PACKING

ASSY. - piston, Includes: Ref.#17 & 18

1шт.

Part of seal kit P/N G32290

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type)

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

G32290

SEAL

KIT - cylinder repair, Includes Refs. 6, 7, 8, 9, 10 and G33237

1шт.
