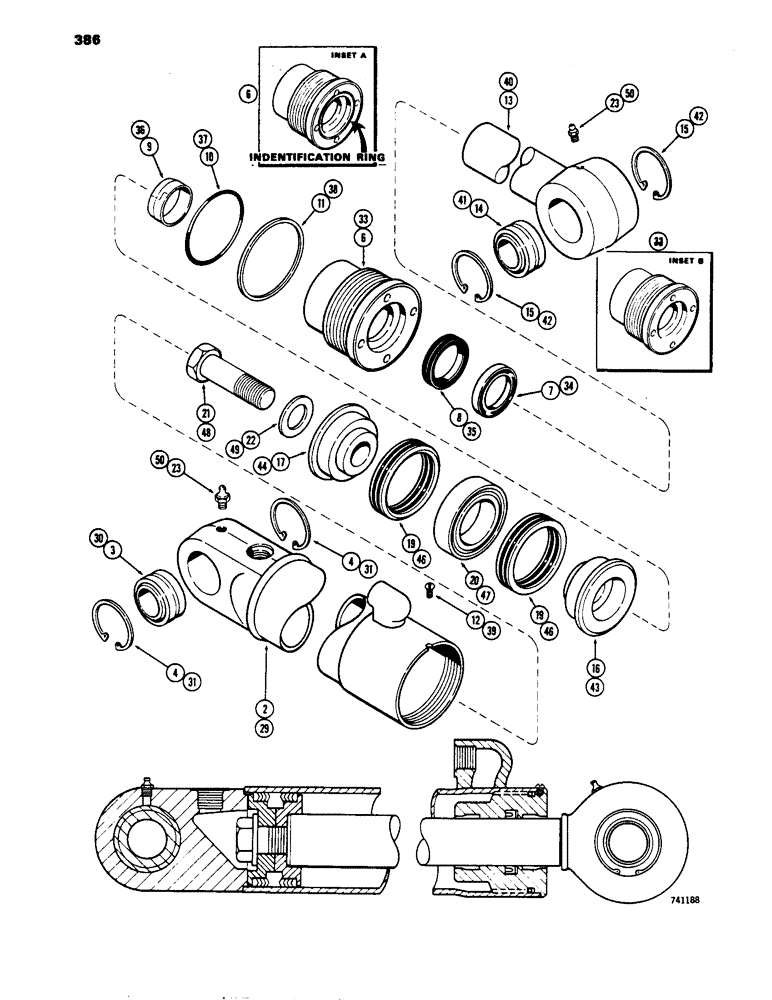

Запчасти Case 450 (386) - G33609 TILT CYLINDER - ANGLE TILT DOZER, GLAND HAS I.D. RING, ROD & TUBE HAVE SELF-ALIGNING BUSHINGS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
G33609
CYLINDER - tilt, 3-1/2" dia. x 8" stroke (Not shown), Includes: Ref.#2 - 23
1шт.
2
D36222
TUBE
ASSY. - cylinder body, Includes: Ref.#3 & 4
1шт.
3
D36203
BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W
- tube (self-aligning)
1шт.
4
A10506
SNAP RING,2.44", Int, #244
RING, Snap, , bushing 2.44", Int, #244
2шт.
5
G33639
GLAND
ASSEMBLY - cylinder (Not shown), Includes: Ref.6 - 11
1шт.
6
NSS
NOT SOLD SEPARAT
GLAND - (w/identification ring) (See Inset A)
1шт.
7
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer (2 x 2-1/2 x 5/16")
1шт.
Part of seal kit P/N G32290
1шт.
8
D36971
RING
SEAL - piston rod (2 x 2-1/2 x 7/16")
1шт.
Part of seal kit P/N G32290
1шт.
9
D27380
SCRAPER RING
WIPER - piston rod, inner (split type)
1шт.
Part of seal kit P/N G32290
1шт.
10
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
"O" RING - gland (3-1/2 x 3-3/4 x 1/8")
1шт.
Part of seal kit P/N G32290
1шт.
11
G32126
BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk
- gland "O" ring back-up
1шт.
Part of seal kit P/N G32290
1шт.
12
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8-32 x 1/4" self tapping)
1шт.
13
G33611
ROD
ASSY. - piston (2" dia) (w/identification ring), Includes: Ref.#14 & 15
1шт.
14
D36203
BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W
- piston rod (self-aligning)
1шт.
15
A10506
SNAP RING,2.44", Int, #244
RING, Snap, , bushing 2.44", Int, #244
2шт.
16
G33167
PISTON
- split (rod end) (w/identification ring)
1шт.
17
D28367
PISTON
- split (bolt end)
1шт.
18
G33237
PACKING
ASSEMBLY - piston (Not shown), Includes: Ref.#19 & 20
1шт.
Part of seal kit P/N G32290
1шт.
19
NSS
NOT SOLD SEPARAT
PACKING ASSY. - ("V" type)
2шт.
20
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
21
28-1640
BOLT,Hex, 1" - 14 x 2-1/2", Gr 8
Piston Hex, 1"-14 x 2 1/2", G8, Full Thd
1шт.
22
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- piston bolt (1-7/64 x 1-7/8 x 9/64")
1шт.
23
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T. str.)
2шт.
24
G32290
SEAL
KIT - seal, Includes Refs. 7, 8, 9, 10, 11, 18, 34, 35, 36, 37, 38 and 45 (Not shown)
1шт.
28
G32170
CYLINDER - 3-1/2" dia. x 8" stroke (Not shown), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper ,- no id ring , Includes: Ref.# 29 - 50
1шт.
29
D36222
TUBE
ASSY. - cylinder body, G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring, Includes: Ref.#30 & 31
1шт.
30
D36203
BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W
- tube (self-aligning), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
31
A10506
SNAP RING,2.44", Int, #244
RING, Snap, , bushing, G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring 2.44", Int, #244
2шт.
32
G32736
GLAND
ASSEMBLY - (Not shown), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring, Includes: Ref.#33 - 38
1шт.
33
NSS
NOT SOLD SEPARAT
GLAND - (w/out identification ring) (See Inset B), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper
1шт.
34
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston (2 x 2-1/2 x 5/16"), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
Part of seal kit P/N G32290
1шт.
35
D36971
RING
SEAL - piston (2 x 2-1/2 x 7/16"), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
Part of seal kit P/N G32290
1шт.
36
D27380
SCRAPER RING
WIPER - piston inner (split type), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
Part of seal kit P/N G32290
1шт.
37
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
"O" RING - (3-1/2 x 3-3/4 x 1/8"), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id
1шт.
Part of seal kit P/N G32290
1шт.
38
G32126
BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk
- gland "O" ring back-up, G32170 tilt cylinder-angle tilt dozer has solid outer rod wiper - no id ring
1шт.
Part of seal kit P/N G32290
1шт.
39
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8-32 x 1/4" self tapping), G32170 tilt cylinder-angle tilt dozer has solid outer rod wiper - no id ring
1шт.
40
D36217
ROD ASSY.
- piston (2" dia.)(w/o identification ring), G32170 tilt cylinder-angle tilt dozer gland has solid outer wiper - no id ring, Includes: Ref.#41 & 42
1шт.
41
D36203
BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W
- piston rod (self-aligning), G32170 tilt cylinder-angle tilt dozer gland has solid outer wiper - no id ring
1шт.
42
A10506
SNAP RING,2.44", Int, #244
RING, Snap, , bushing, G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring 2.44", Int, #244
2шт.
43
D28368
PISTON
- split (rod end) (w/out identification ring), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper
1шт.
44
D28367
PISTON
- split (bolt end), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
45
G33237
PACKING
ASSEMBLY - piston (Not shown), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring, Includes: Ref.#46 & 47
1шт.
Part of seal kit P/N G32290
1шт.
46
NSS
NOT SOLD SEPARAT
PACKING ASSY. - ("V" type), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
2шт.
47
NSS
NOT SOLD SEPARAT
RING - center bearing, G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
48
28-1640
BOLT,Hex, 1" - 14 x 2-1/2", Gr 8
Piston, G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring Hex, 1"-14 x 2 1/2", G8, Full Thd
1шт.
49
G32351
WASHER
- piston bolt (1-11/32 x 2-1/2 x 9/64"), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
50
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T. str.), G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
2шт.
G32290
SEAL
KIT - repair, Includes Refs. 7, 8, ,9 10, 11, 18, 34, 35, 36, 37, 38 and 45, G32170 tilt cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
