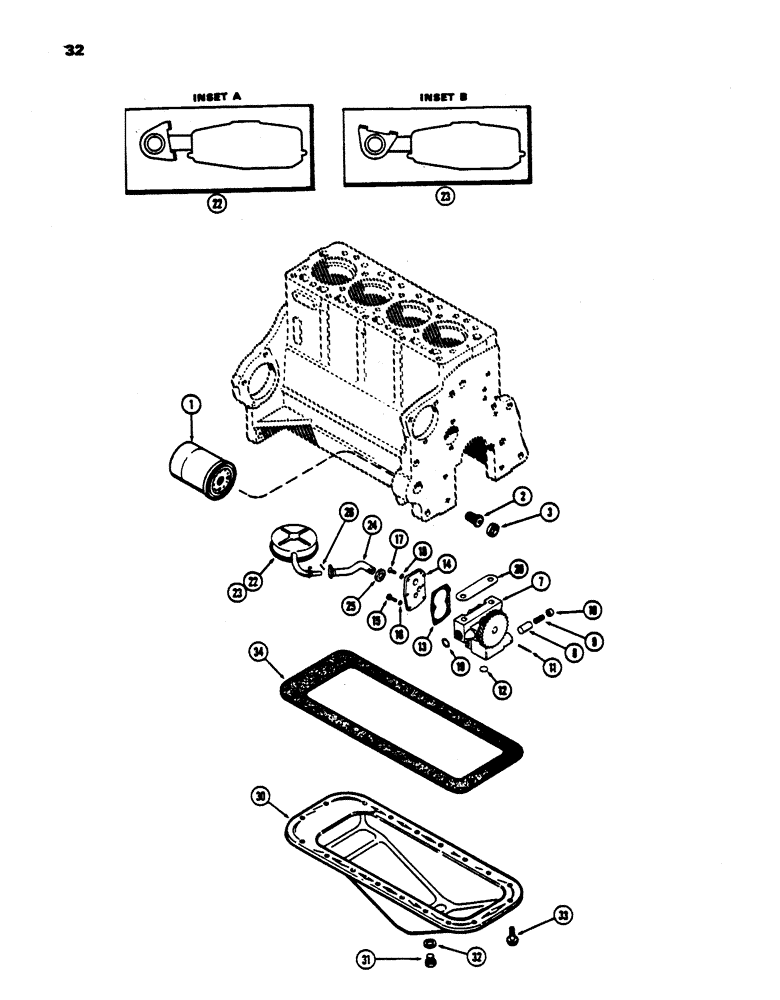

Запчасти Case 450 (032) - OIL FILTER, (188) DIESEL ENGINE (01) - ENGINE

1

A37189

FILTER, ELEMENT

ELEMENT, FILTER FILTER - engine oil

1шт.

2

A153552

ADAPTER

ADAPTER -, Serial Range: filter-block

1шт.

3

41-1016

PLUG,Cup, 1"

PLUG - adapter opening (1" cup type)

1шт.

7

A38372

PUMP

PUMP ASSY . - engine oil, oil pump, Includes: Ref.#8 - 18

1шт.

7

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

7

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

8

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

9

G48500

SPRING

SPRING - relief valve, oil pump

1шт.

10

A29260

RETAINER

RETAINER - relief spring, oil pump

1шт.

11

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Oil pump 1/8" x 1 1/8", Slotted

1шт.

12

A39321

PLUG,Cup, 7/16"

PLUG - pump body (7/16" cup type), oil pump

1шт.

13

G46852

GASKET

GASKET - pump cover, oil pump

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - pump body, oil pump

1шт.

15

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, , Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

15

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

17

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW - 1/4 x 5/8" sltd. flat hd, oil pump

2шт.

18

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

19

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port (3/4 x 15/16 x 3/32"), oil pump

1шт.

20

G11337

SHIM,.002" Thk

SHIM, , Pump to block, Oil pump .002" Thk

1шт.

20

G11338

SHIM,.005" Thk

SHIM, , Pump to block, Oil pump .005" Thk

1шт.

22

A39036

FLOAT

FLOAT ASSY. - (See Inset A) (1st used eng. ser. no. 2700140), oil pump

1шт.

23

A30126

SPARE PART FLOAT ASSY. - (See Inset B) (Order 1-A39036 & 1-A39035), oil pump, Serial Range: -2700140

1шт.

24

A39035

TUBE

PIPE - suction (Used w/A39036 float), oil pump

1шт.

24

G45766

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST PIPE - suction (Used w/A30126 float), oil pump

1шт.

25

223-207

LOCK NUT

NUT - lock, pipe to pump, oil pump

1шт.

26

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

30

A36782

PAN

PAN ASSY. - oil, oil pan, Includes: Ref.31 & 32

1шт.

31

A14280

PLUG

PLUG - drain, ol pan

1шт.

32

A58608

GASKET

GASKET - drain plug, oil pan

1шт.

33

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (Includes lockwasher)

18шт.

34

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A44758) (Fig. 34)

1шт.
