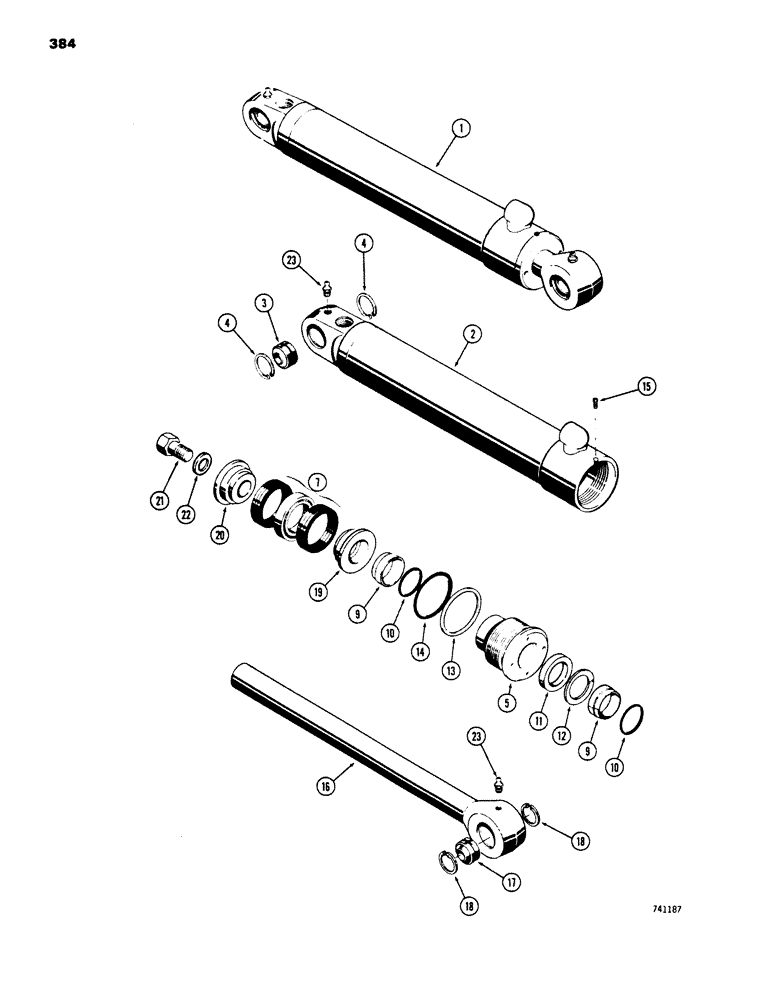

Запчасти Case 450 (384) - D34792 TILT CYLINDER - ANGLE TILT DOZER, GLAND HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D34792

CYLINDER - tilt, 3-1/2" dia.x 8" stroke, Includes: Ref.#2 - 23

1шт.

2

D36222

TUBE

ASSY. - cylinder body, Includes: Ref.#3 & 4

1шт.

3

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- tube (self aligning)

1шт.

4

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

2шт.

5

D45070

GLAND

- cylinder (Service with G32736 gland assembly - parts list Fig. 386)

1шт.

D37357

KIT

- seal, cylinder repair

1шт.

7

G33237

PACKING

ASSY. - piston (Replaces D36963)

1шт.

D42874

PACKING GLAND

KIT - gland repair, Includes: Ref.#7 - 15

1шт.

9

D27380

SCRAPER RING

WIPER - piston rod, inner & outer (split type)

2шт.

10

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - wiper

2шт.

11

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32")

1шт.

12

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- piston seal back-up

1шт.

13

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- gland "O" ring back-up

1шт.

14

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

15

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

16

D36217

ROD ASSY.

- piston (2" dia.) (w/o dentification ring), Includes: Ref.#17 & 18

1шт.

17

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- piston rod (self aligning)

1шт.

18

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

2шт.

19

D28368

PISTON

- split (rod end) (w/o identification ring)

1шт.

20

D28367

PISTON

- split (bolt end)

1шт.

21

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, retaining Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

22

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.
