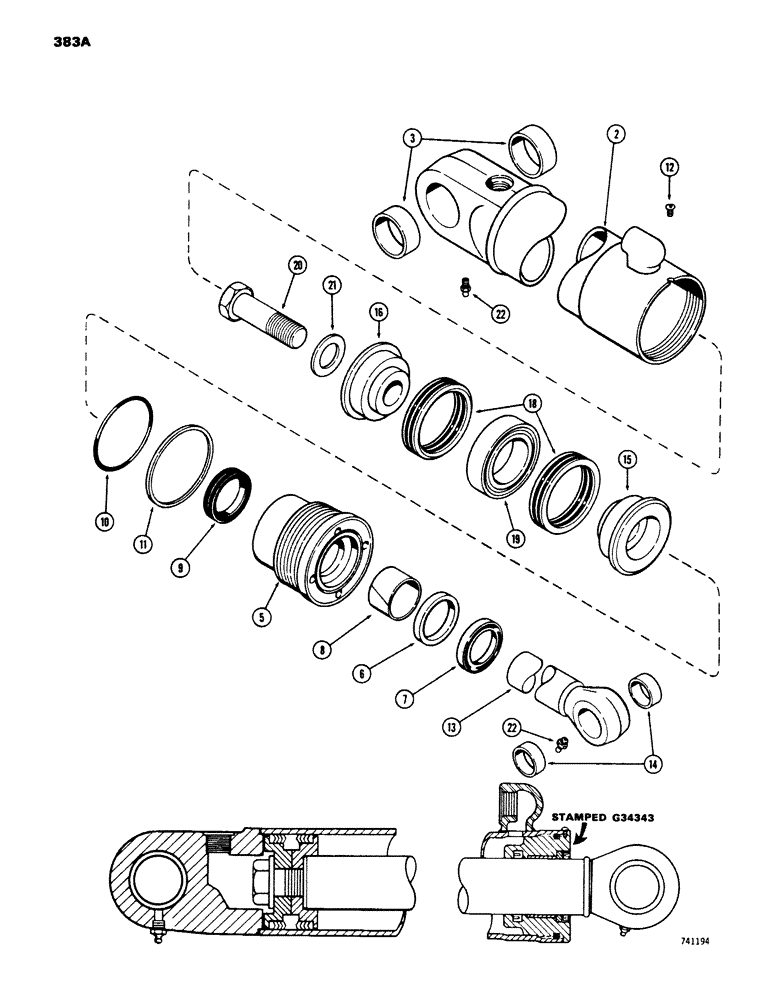

Запчасти Case 450 (383A) - G34343 ANGLE CYLINDER - ANGLE TILT DOZER, GLAND IS STAMPED W/CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G34343

HYDRAULIC CYLINDER

CYLINDER - Angling, 4" dia. x 8-5/16" stroke (Not shown), Includes: Ref.#2 - 22

1шт.

2

G34402

TUBE

ASSY. - cylinder body, Includes: Ref.# 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

G34331

GLAND

ASSY. - (hand stamp for identification), Includes: Ref.#5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of seal kit P/N G34647

1шт.

8

G34322

BEARING

- center

1шт.

Part of seal kit P/N G34647

1шт.

9

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of seal kit P/N G34647

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of seal kit P/N G34647

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of seal kit P/N G34647

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G34405

ROD ASSY.

- piston (2" dia.), Includes: Ref.#14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G33159

PISTON

- split (rod end)

1шт.

16

D28370

PISTON

- split (bolt end)

1шт.

G33239

PACKING

ASSY. - piston, Includes: Ref.#18 & 19

1шт.

Part of seal kit P/N G34647

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

21

G32351

WASHER

- piston bolt (1-3/8 x 2-1/2 x 1/8")

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

G34647

SEAL

KIT - cylinder repair, Includes Refs. 7, 8, 9, 10, 11 and G33239

1шт.
