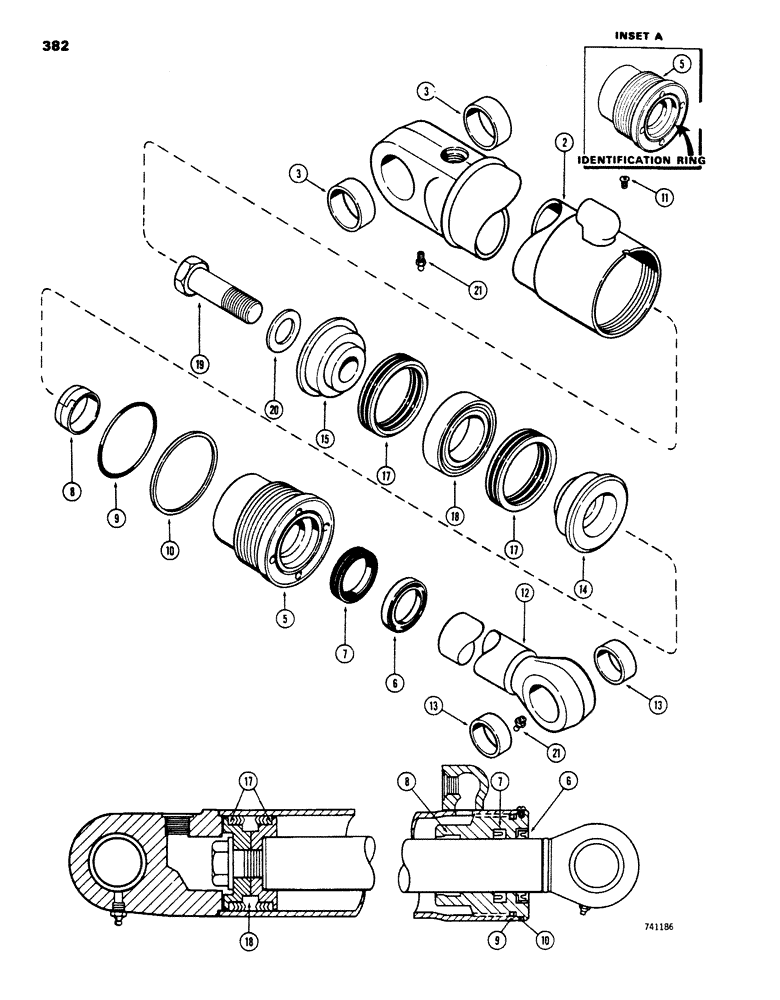

Запчасти Case 450 (382) - G34343 ANGLE CYLINDER - ANGLE TILT DOZER, GLAND HAS I.D. RING, ROD & TUBE HAVE PRESS-IN BUSHINGS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
G34343
HYDRAULIC CYLINDER
CYLINDER - Angling, 4" dia. x 8-5/16" stroke (Not shown), Includes: Ref.#2 - 21
1шт.
2
G33402
TUBE ASSY. - cylinder body, Includes: Ref.#3
1шт.
3
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- tube (push-in type)
2шт.
G33640
GLAND
ASSY.- Includes: Ref.#5 - 10
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND - (w/identification ring)
1шт.
6
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer (2 x 2-1/2 x 5/16")
1шт.
Part of seal kit P/N G32614
1шт.
7
D36971
RING
SEAL - piston rod (2 x 2-1/2 x 7/16")
1шт.
Part of seal kit P/N G32614
1шт.
8
D27380
SCRAPER RING
WIPER - piston rod, inner (split type)
1шт.
Part of seal kit P/N G32614
1шт.
9
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - gland (4 x 4-1/4 x 1/8")
1шт.
Part of seal kit P/N G32614
1шт.
10
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
- Gland "O" Ring
1шт.
Part of seal kit P/N G32614
1шт.
11
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8-32 x 1/4" self tapping)
1шт.
12
G34405
ROD ASSY.
- piston (2" dia.) (w/identification ring), Includes: Ref.#3
1шт.
13
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- piston rod
2шт.
14
G33623
PISTON
- split (rod end) (w/identification ring)
1шт.
15
D46930
PISTON
- split (bolt end)
1шт.
G33239
PACKING
ASSY. - piston, Includes: Ref.#17 & 18
1шт.
Part of seal kit P/N G32614
1шт.
17
NSS
NOT SOLD SEPARAT
PACKING ASSY. - ("V" type)
2шт.
18
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
19
28-2040
BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8
- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston
1шт.
20
G32351
WASHER
- piston bolt (1-11/32 x 2-1/2 x 9/64")
1шт.
21
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T. str.)
2шт.
G32614
SEAL KIT
- cylinder repair, Includes Refs. 6, 7, 8, 9, 10
1шт.
Выбрано товаров: 28
