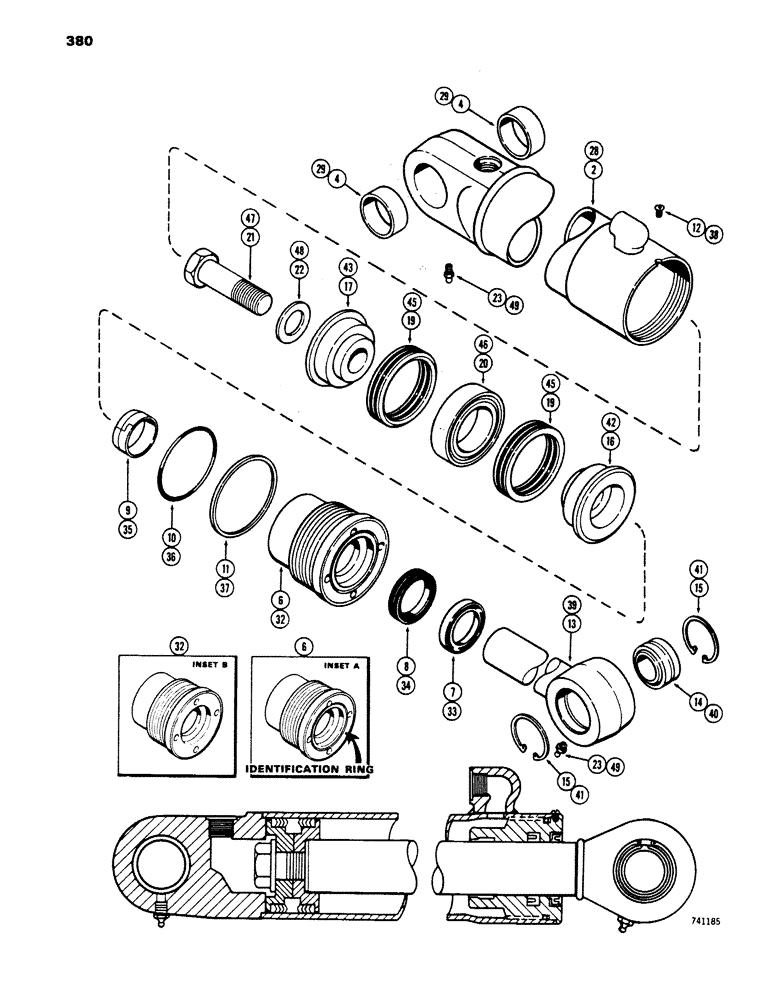

Запчасти Case 450 (380) - G33620 ANGLE CYL. - ANGLE TILT DOZER, GLAND HAS I.D. RING, ROD & TUBE HAVE SELF-ALIGNIING BUSHINGS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
G33620
CYLINDER
- angling, 4" dia. x 8-5/16" stroke (Not shown), Includes: Ref.#2 - 23
1шт.
2
D36212
TUBE
ASSY. - cylinder body, Includes: Ref.#4
1шт.
4
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- tube
2шт.
5
G33640
GLAND
ASSEMBLY - cylinder (Not shown), Includes: Ref.#6 - 11
1шт.
6
NSS
NOT SOLD SEPARAT
GLAND - (w/identification ring) (See Inset A)
1шт.
7
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer (2 x 2-1/2 x 5/16")
1шт.
Part of seal kit P/N G32614
1шт.
8
D36971
RING
SEAL - piston rod (2 x 2-1/2 x 7/16")
1шт.
Part of seal kit P/N G32614
1шт.
9
D27380
SCRAPER RING
WIPER - piston rod, inner (split type)
1шт.
Part of seal kit P/N G32614
1шт.
10
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - gland (4 x 4-1/4 x 1/8")
1шт.
Part of seal kit P/N G32614
1шт.
11
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
- Gland "O" Ring
1шт.
Part of seal kit P/N G32614
1шт.
12
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8-32 x 1/4" self tapping)
1шт.
13
G33621
ROD ASSY.
- piston (2" dia.) (w/identification ring), Includes: Ref.#14 & 15
1шт.
14
D36203
BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W
- piston rod (self aligning)
1шт.
15
A10506
SNAP RING,2.44", Int, #244
Ring, Snap, , bushing 2.44", Int, #244
2шт.
16
G33623
PISTON
- split (rod end) (w/identification ring)
1шт.
17
D46930
PISTON
- split (bolt end)
1шт.
18
G33239
PACKING
ASSEMBLY - piston (Not shown), Includes: Ref.#19 & 20
1шт.
Part of seal kit P/N G32614
1шт.
19
NSS
NOT SOLD SEPARAT
PACKING ASSY. - ("V" type)
2шт.
20
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
21
28-2040
BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8
- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston
1шт.
22
G32351
WASHER
- piston bolt (1-11/32 x 2-1/2 x 9/64")
1шт.
23
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T. str.)
2шт.
24
G32614
SEAL KIT
KIT - seal, Includes Refs. 7, 8, 9, 10, 11, 18, 33, 34, 35, 36, 37 and 44 (Not shown)
1шт.
27
G32583
CYLINDER - angle 4" dia. x 8-5/16" stroke (Not shown), G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring, Includes: Ref.#28 - 49
1шт.
28
D36212
TUBE
ASSY. - cylinder body, G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring, Includes: Ref.#29
1шт.
29
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- tube, G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
2шт.
31
G32737
GLAND
ASSEMBLY - (Not shown), G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring, Includes: Ref.#32 - 37
1шт.
32
NSS
NOT SOLD SEPARAT
GLAND - (w/o identification ring) (See Inset B), G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper
1шт.
33
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer (2 x 2-1/2 x 5/16"), G32583 angle cylinder-angle tilt dozer gland has solid outer wiper - no id ring
1шт.
Part of seal kit P/N G32614
1шт.
34
D36971
RING
SEAL - piston rod (2 x 2-1/2 x 7/16"), G32583 angle cylinder-angle tilt dozer gland has solid outer wiper - no id ring
1шт.
Part of seal kit P/N G32614
1шт.
35
D27380
SCRAPER RING
WIPER - piston rod, inner (split type), G32583 angle cylinder-angle tilt dozer gland has solid outer wiper - no id ring
1шт.
Part of seal kit P/N G32614
1шт.
36
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - gland (4 x 4-1/4 x 1/8"), G32583 angle cylinder-angle tilt dozer has solid outer rod wiper - no id ring
1шт.
Part of seal kit P/N G32614
1шт.
37
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
- Gland "O" Ring , G32583 Angle cylinder-angle tilt dozer has solid outer rod wiper - No ID ring
1шт.
Part of seal kit P/N G32614
1шт.
38
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8-32 x 1/4" self tapping), G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
39
D36207
ROD
- piston (2" dia.) Service with G33621 rod, G33623 piston and G33640 gland assembly - Ref.#5 above, G3258 3 angle cylinder-angle tilt do zer gland has solid outer wiper - no id ring, Includes: Ref.#40 & 41
1шт.
40
D36203
BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W
- piston rod (self aligning), G32583 angle cylinder-angle tilt dozer gland has solid outer wiper - no id ring
1шт.
41
A10506
SNAP RING,2.44", Int, #244
RING, Snap, , bushing, G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id 2.44", Int, #244
2шт.
42
D46424
PISTON
- split (rod end) (w/o identification ring), G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper
1шт.
43
D46930
PISTON
- split (bolt end), G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
44
G33239
PACKING
ASSEMBLY - piston (Not shown), G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
Part of seal kit P/N G32614
1шт.
45
NSS
NOT SOLD SEPARAT
PACKING ASSY. - ("V" type), G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
2шт.
46
NSS
NOT SOLD SEPARAT
RING - center bearing, G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
47
28-2040
BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8
- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston, G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
48
G32351
WASHER
- piston bolt (1-11/32 x 2-1/2 x 9/64"), G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
49
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T. str.), G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
2шт.
G32614
SEAL KIT
- cylinder repair, 7, 8, 9, 10, 11, 18, 24, 33, 34, 35, 36, 37 and 44, G32583 angle cylinder-angle tilt dozer gland has solid outer rod wiper - no id ring
1шт.
Выбрано товаров: 58
