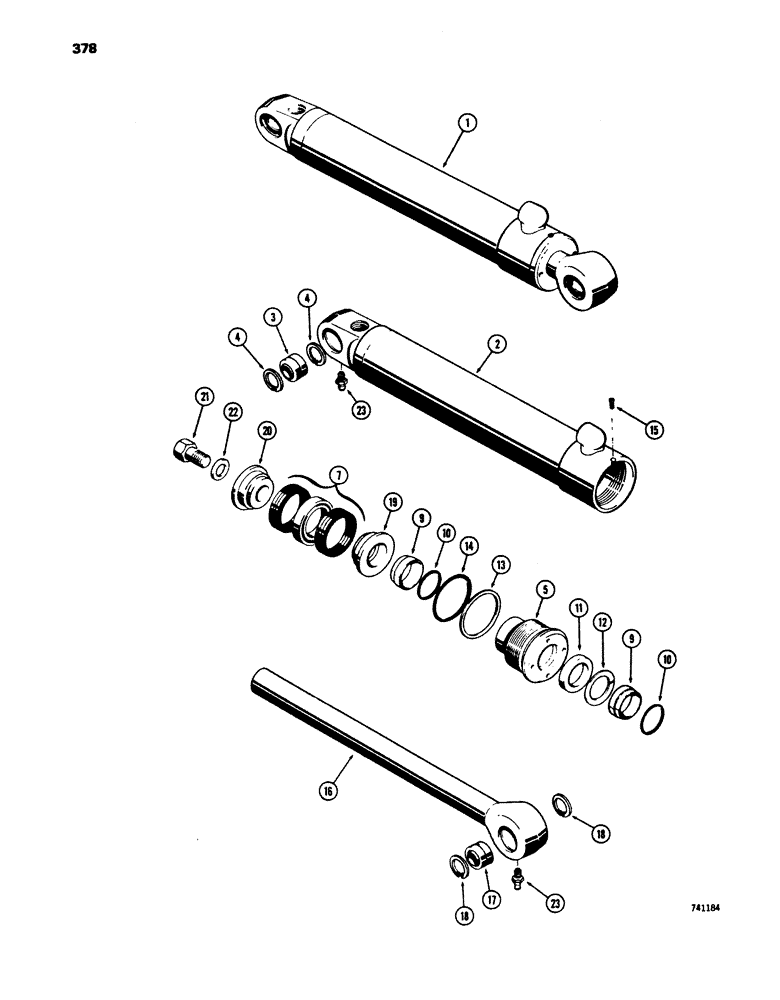

Запчасти Case 450 (378) - D34791 ANGLE CYLINDER - ANGLE TILT DOZER, GLAND HAS SPLIT OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D34791

CYLINDER - angling, 4" dia. x 8-5/16" stroke, Includes: Ref.#2 - 23

1шт.

2

D36212

TUBE

ASSY. - cylinder body, Includes: Ref.#3 & 4

1шт.

3

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- tube (self aligning)

1шт.

4

A10506

SNAP RING,2.44", Int, #244

RING, Snap, , bushing 2.44", Int, #244

2шт.

5

D45071

GLAND

- (w/o identification ring)

1шт.

7

G33239

PACKING

ASSY. - piston (Replaces D36964)

1шт.

D42876

GLAND

KIT - gland repair, Includes: Ref.9 - 15

1шт.

9

D27380

SCRAPER RING

WIPER - piston rod, inner & outer (split type)

2шт.

10

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - wiper seal

2шт.

11

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

12

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- seal back-up

1шт.

13

D27382

RING

- gland "O" ring back-up

1шт.

14

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

15

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

16

D36207

ROD

- piston (2" dia.) Service with G33621 rod, G33623 piston and G33640 gland assembly - parts list Fig. 380, Included: Ref.#17 & 18

1шт.

17

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- piston rod (self aligning)

1шт.

18

A10506

SNAP RING,2.44", Int, #244

RING, Snap, , bushing 2.44", Int, #244

2шт.

19

D46424

PISTON

- split (rod end) (w/o identification ring)

1шт.

20

D46930

PISTON

- split (bolt end)

1шт.

21

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston retaining

1шт.

22

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T.str.)

2шт.
